2.6 Mounting the transfer robotic arm ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
20 ￭￭￭￭￭￭￭￭ 815 Robotic Soliprep for LC

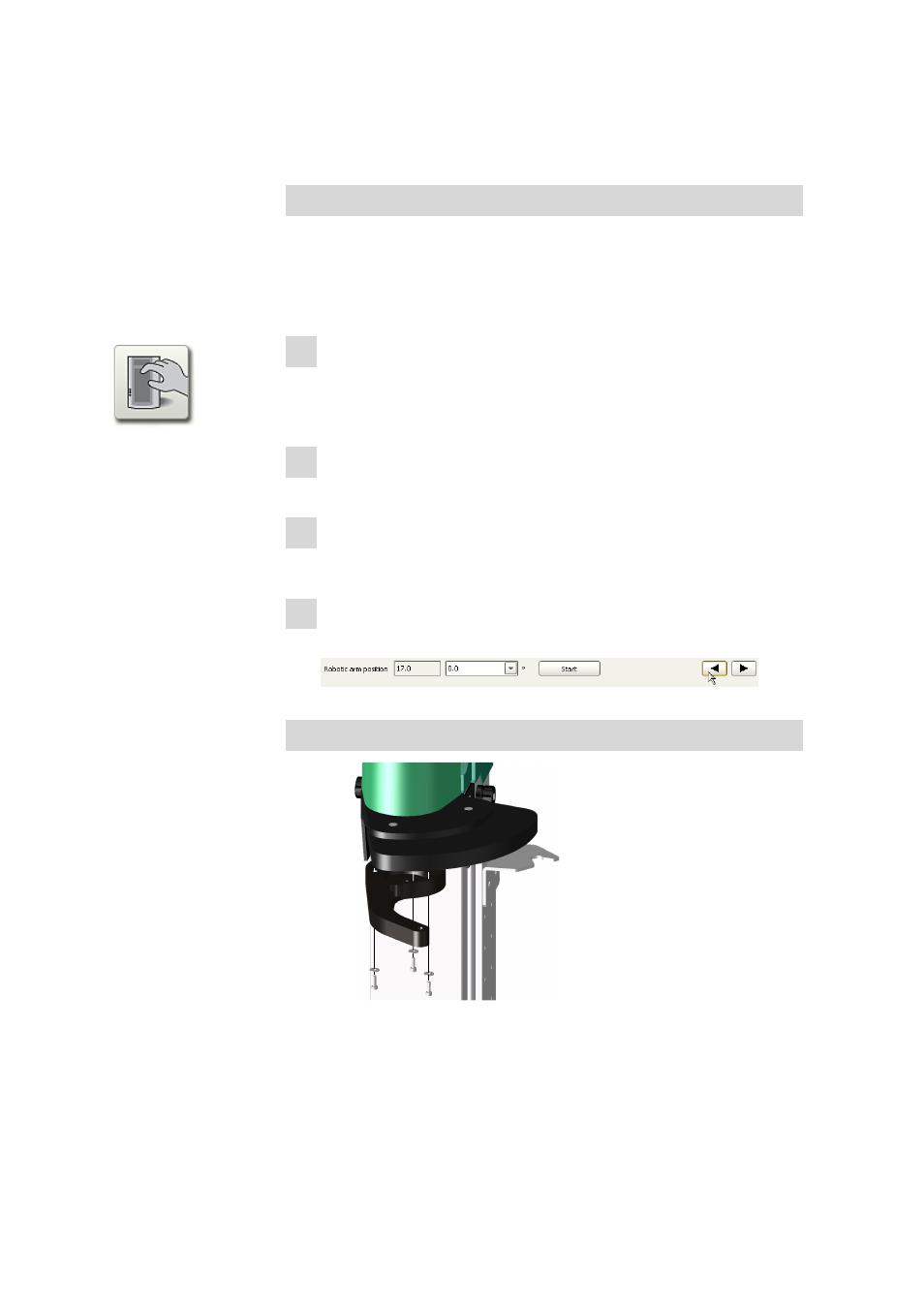

2.6 Mounting the transfer robotic arm
Prepare the Swing Head
After initialization, the drive disc of the Swing Head is positioned as though
the robotic arm were located in the outermost position. In order to be able
to mount the robotic arm in a favorable position, rotate the drive disc with
Manual control in MagIC Net
™ as follows:
1 Open the manual control
In the symbol bar of MagIC Net ™ , click the hand symbol.
2 Under Device selection, first select All devices and then the 815
Robotic USB .... Click the tab Tower 1.
3 Under Rack position, click on [Start].
The rack moves to a valid rack position.
4 Click on the arrow button "left" under Robotic arm position until the
drive disc is no longer moving.
Mounting the robotic arm
6.1462.240
1
2
