2.4 Mounting the Swing Heads ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭ 815 Robotic Soliprep for LC
￭ Swing offset 0.0°
￭ Maximum swing rage 115.5°
￭ Swing radius 110 mm
￭ Rotation offset 0.0°
￭ Swing direction +
5 Finish the settings with [OK].
The instrument must be reinitialized in order to make the settings
effective.
6 Click on [OK].
7 Attach a sample rack on the turntable of the instrument.

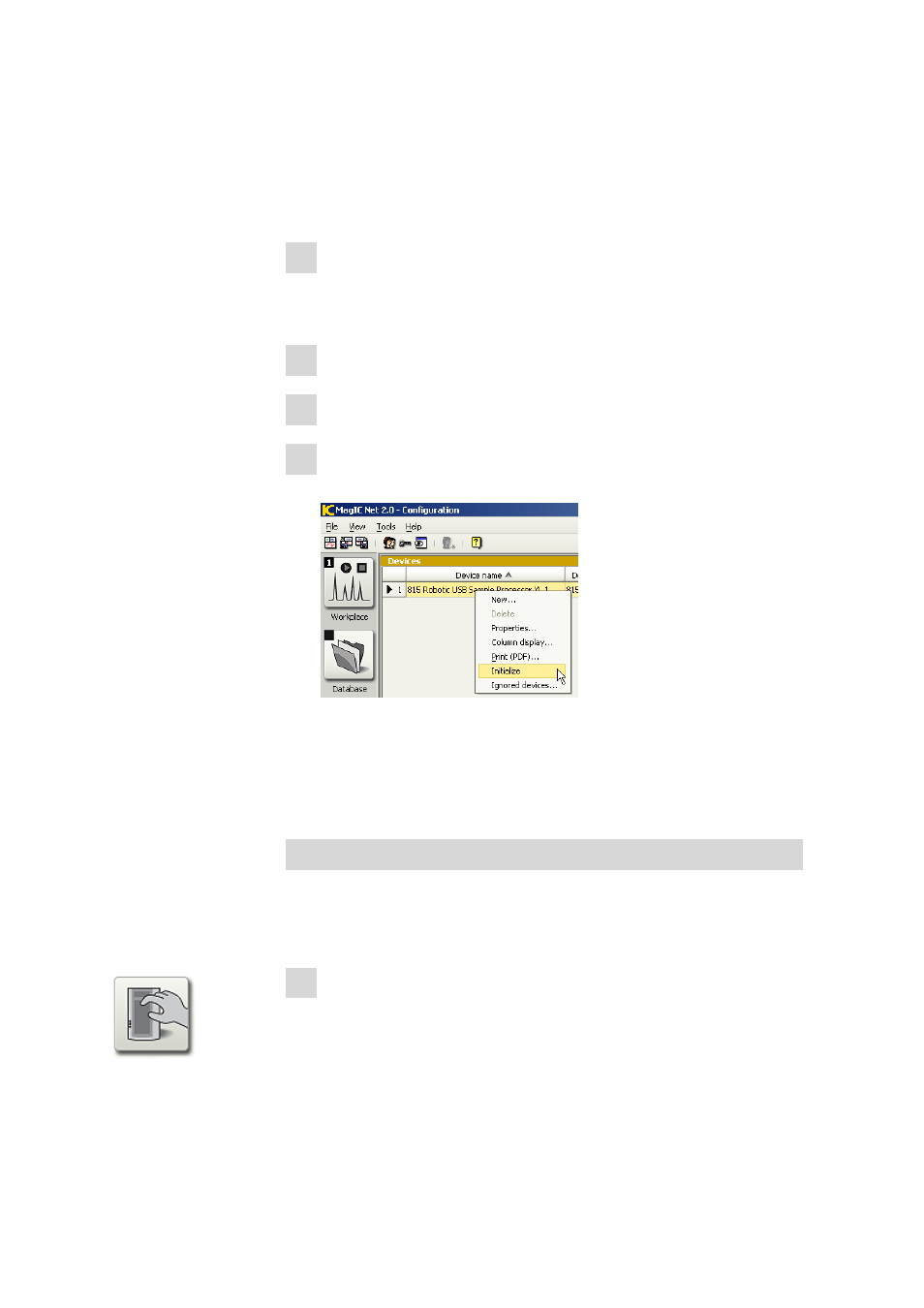

8 Right-click on the instrument name 815 Robotic USB ... in the Devi-
ces window and click on Initialize.
The Sample Processor is initialized. The settings of the Swing Heads and
robotic arms are now valid.
2.4 Mounting the Swing Heads
Preparing the towers
Both lifts must be moved into an appropriate position in order to ensure that
the mounting of the Swing Heads and the robotic arms can be carried out
without problem.
1 Opening the manual control
In the symbol bar of MagIC Net, click the hand symbol.
