2.5 Mounting the deflector, Luer connector and collection container ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
16 ￭￭￭￭￭￭￭￭ 815 Robotic Soliprep for LC
5 Fasten the 6.2058.040 robotic arm reinforcement to the right-hand
side while at the same time fixing the Swing Head in place. Use for this
purpose the two screws supplied with the robotic arm reinforcement.
These are longer than the ones previously used.
Initializing the rack and the Swing Heads
Both Swing Heads must be moved to the starting position for the mounting
of the robotic arms.

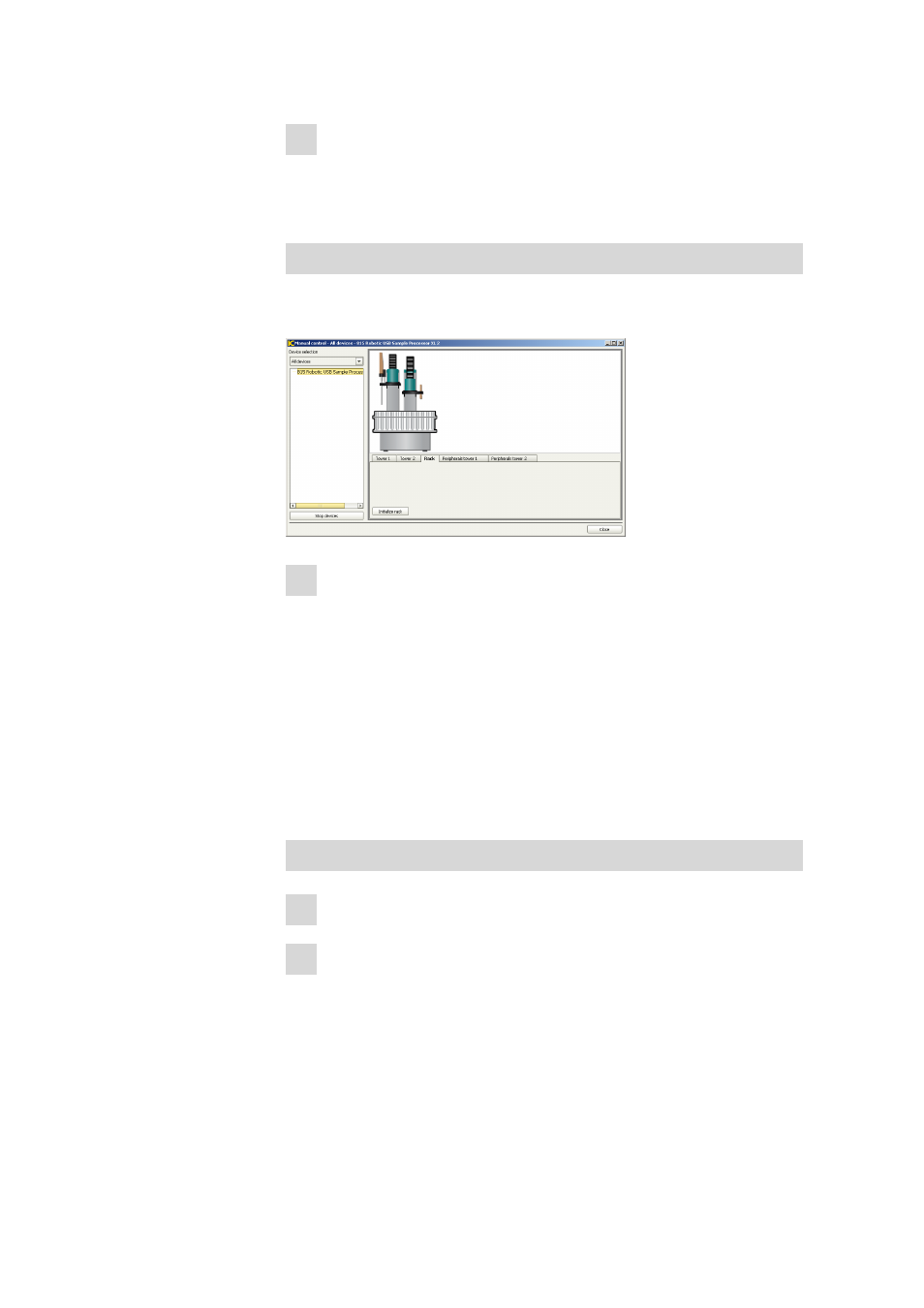

1 On the tab Rack, click on [Initialize rack].
Both lifts are moved upward. The Swing Heads are now in starting
position.
2.5 Mounting the deflector, Luer connector and collec-
tion container
When injection needles and disposable filters are used, these need to be
stripped off the robotic arm again afterwards. A deflector has been mounted
for this purpose. Proceed as follows:
Mounting the deflector
1 Loosen the uppermost two screws on the right-hand side of Tower 1.
2 Screw the 6.2058.050 fastening plate tightly with the aid of the screws
supplied.
