FASCIA

AFFICHAGE

ANZEIGE

LCD DISPLAY

AFFICHAGE LCD

DISPLAY LCD

PANTALLA DIGITAL

LCD-ANZEIGE

NOMENCLATURA DEL DISPLAY

UNIDAD

BUTTON FUNCTIONS

FONTIONS DES BOUTONS

TASTENFUNKTIONEN

FUNZIONI DEI PULSANTI

FUNCIONES DE LAS TECLAS

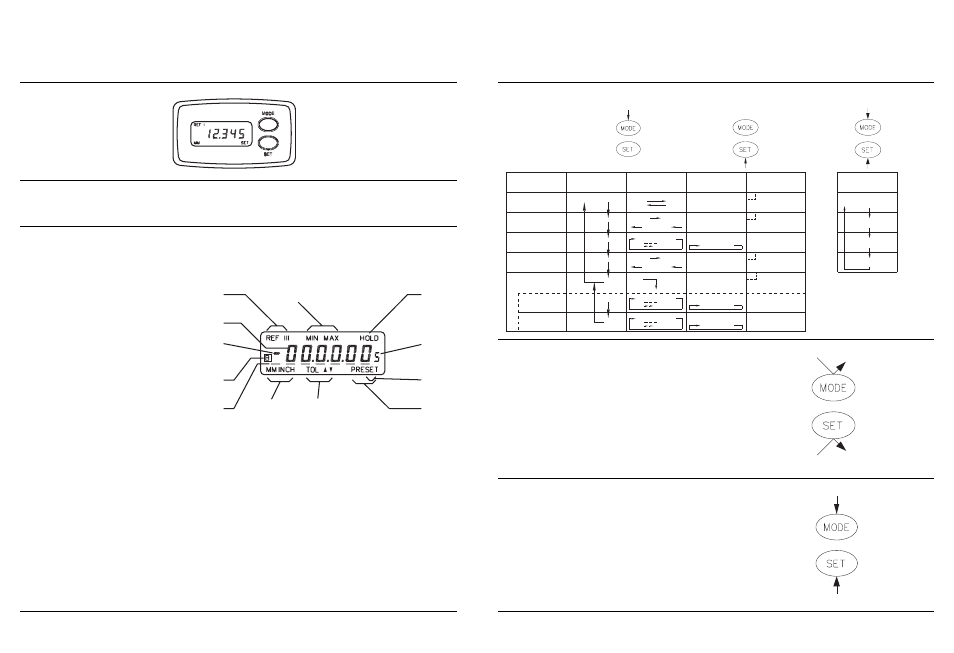

1. Indicator of Min Max mode
2. Indicator of Reference mode
3. Measured Value
4. Negative sign
5. Battery life warning display
6. Indicating curser for Preset Tolerance
7. Indicator of Measuring unit
8. Indicator of Tolerance mode
9. Indicator of Preset mode
10. Indicator of Set mode
11. Display .0005/.00005 inch
12. Hold Indicator

Description of LCD

Définition

Beschreibung

Descrizione del display

Pantalla Digital

How to use buttons

Organigramme

Ablaufdiagramm

Come usare i pulsanti

Funciones de las teclas

Results when MODE and SET buttons are pressed less than 1
second.

Représentation d’une courte pression (<1sec) sur les boutons
MODE et SET.

Darstellung eines kurzen Druckes (<1 Sek) auf die Tasten
MODE und SET.

Conseguenza dopo aver tenuto premuto i tasti MODE e SET
per meno di un secondo.

Representación de una breve presión de las teclas. (< 1 seg.)

Results when MODE and SET buttons are pressed more than
1 second.

Représentation d’une longue pression (<1sec) sur les boutons
MODE et SET.

Darstellung eines langen Druckes (<1 Sek) auf die Tasten
MODE und SET.

Conseguenza dopo aver tenuto premuto i tasti MODE e SET
per più di un secondo.

Representación de una larga presión de las teclas. (> 1 seg)

1. Affichage mode MINI/MAXI
2. Affichage mode référence
3. Valeur mesurée
4. Affichage negatif
5. Affichage batterie faible
6. Curseur pour tolérances preset
7. Affichage d’unité de mesure
8. Affichage mode tolérances
9. Affichage mode Preset
10. Affichage mode set
11. Affichage .0005 / .00005 inch
12. Affichage ‘Hold”

1. Min/Maxmodus Anzeige
2. Referenz - Modus Anzeige
3. Messwert
4. Minus Zeichen
5. Batterie Warnanzeige
6. Cursor für Toleranzeingabe
7. Messeinheit
8. Toleranz - Modus Anzeige
9. Preset -Modus Anzeige
10. Set Modus Anzeige
11. Zoll - Anzeige
12. Hold - Anzeige

1. Indicazione modalità Min Max
2. Indicazione modalità riferimento
3. Valore misurato
4. Segno negativo
5. Indicazione batterie scariche
6. Cursore per l’impostazione delle

tolleranze

7. Indicazione dell’unità di misura in uso
8. Indicazione della modalità tolleranza
9. Indicazione della modalità Preset
10. Indicazione della modalità set
11. Indicazione pollici
12. Indicazione del congelamento della

lettura

1. Modo MIN/MAX.
2. Modo referencia.
3. Valor de la medición.
4. Signo negativo.
5. Indicador de la batería.
6. Cursor para preselección

de tolerancias.

7. Unidad de medición.
8. Modo tolerancia.
9. Modo preselección.
10. Modo ajuste.
11. Pantalla 0,0005/0,00005”.
12. Bloqueo.

1

2

3

4

5

6

7

8

9

10

11

12

Mode

> 1 sec

< 1 sec

> 1 sec

< 1 sec

Set (Measure)

References

Preset

Min Max

Tolerances

Upper Tol entry

Lower Tol entry

mm

inch

Ref I

Ref II

Ref III

-000.123

Tol

-000.123

-000.123

Off

Off

Incr digit

0.1.2...9

Off

Off

Incr digit

0.1.2...9

Incr digit

0.1.2...9

Set

Data out, hold

Digit = digit + 1

Data out +

clear min or max

Data out, hold

Digit = digit + 1

Digit = digit + 1

000.001

> 1 sec

0000.01

-0000.01

000.001

-

on

on

on

on

Min

Max

MinMax
