MP-Series Low-inertia Servo Motor with 100 mm to 165 mm Frame Size 3
Rockwell Automation Publication MP-IN001H-EN-P - January 2014

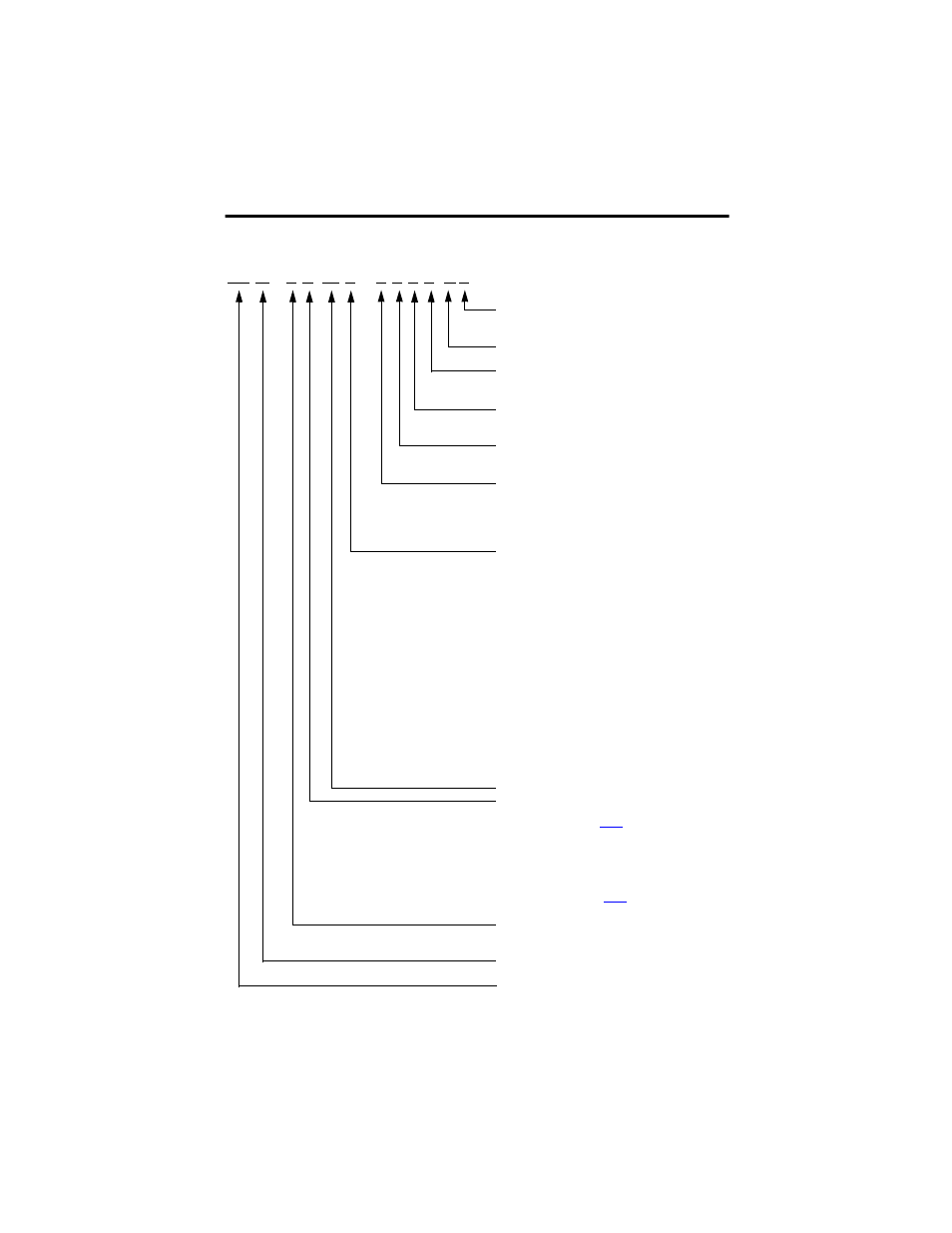

Catalog Number Explanation
MP L -
x x 10 x - x x x x A x
Factory Designated Options
A
= Standard
H
= ATEX protection rating of Group II, Zone 2
Mounting Flange
A
= IEC metric
Brake
2
= No brake
4
= 24V DC brake
Connectors
2
= Circular bayonet, facing shaft
7
= Circular DIN, right angle, 180° rotatable
Shaft Key/Seal
J
= Shaft key/no shaft seal
K
= No shaft key/no shaft seal
Feedback
H
= 2000 line encoder
(1)
(1)
Not available on catalog number MPL-x5xxx or larger (>165 mm frame sizes).
M
= Multi-turn high-resolution encoder
R
= 2-pole resolver
(1)
S
= Single-turn high-resolution encoder
Rated Speed
A
=
500 rpm
B
= 1000 rpm
C
= 1500 rpm
D
= 2000 rpm
E
= 2500 rpm
F
= 3000 rpm
G
= 3250 rpm
H
= 3500 rpm
J
= 3750 rpm
K
= 4000 rpm
L
= 4250 rpm
M
= 4500 rpm
N
= 4750 rpm
P
= 5000 rpm
Q
= 5250 rpm
R
= 5500 rpm
S
= 5750 rpm
T
= 6000 rpm
Magnetic Stack Length (10 = 1.0 in.)
Frame Size (IEC 72-1 flange number)
1
= 63 mm small frame motors (63…75 mm)
2
= 75 mm refer to
for this product manual
3
= 100 mm
4
= 115 mm
45
= 130 mm
5
= 165 mm
6
= 215 mm large frame motors (215…300 mm)
8
= 265 mm refer to
for this product manual
9
= 300 mm
Voltage Class
A
= 200V
B
= 400V
Series Type
L
= Low inertia
Series
MP
= Premium permanent magnet
rotary servo motor
