18 MP-Series Low-inertia Servo Motor with 100 mm to 165 mm Frame Size
Rockwell Automation Publication MP-IN001H-EN-P - January 2014
Motor Load Force Ratings
Motors are capable of operating with a sustained shaft load. The radial and axial load force
location is shown in the figure, and maximum values are in the tables.

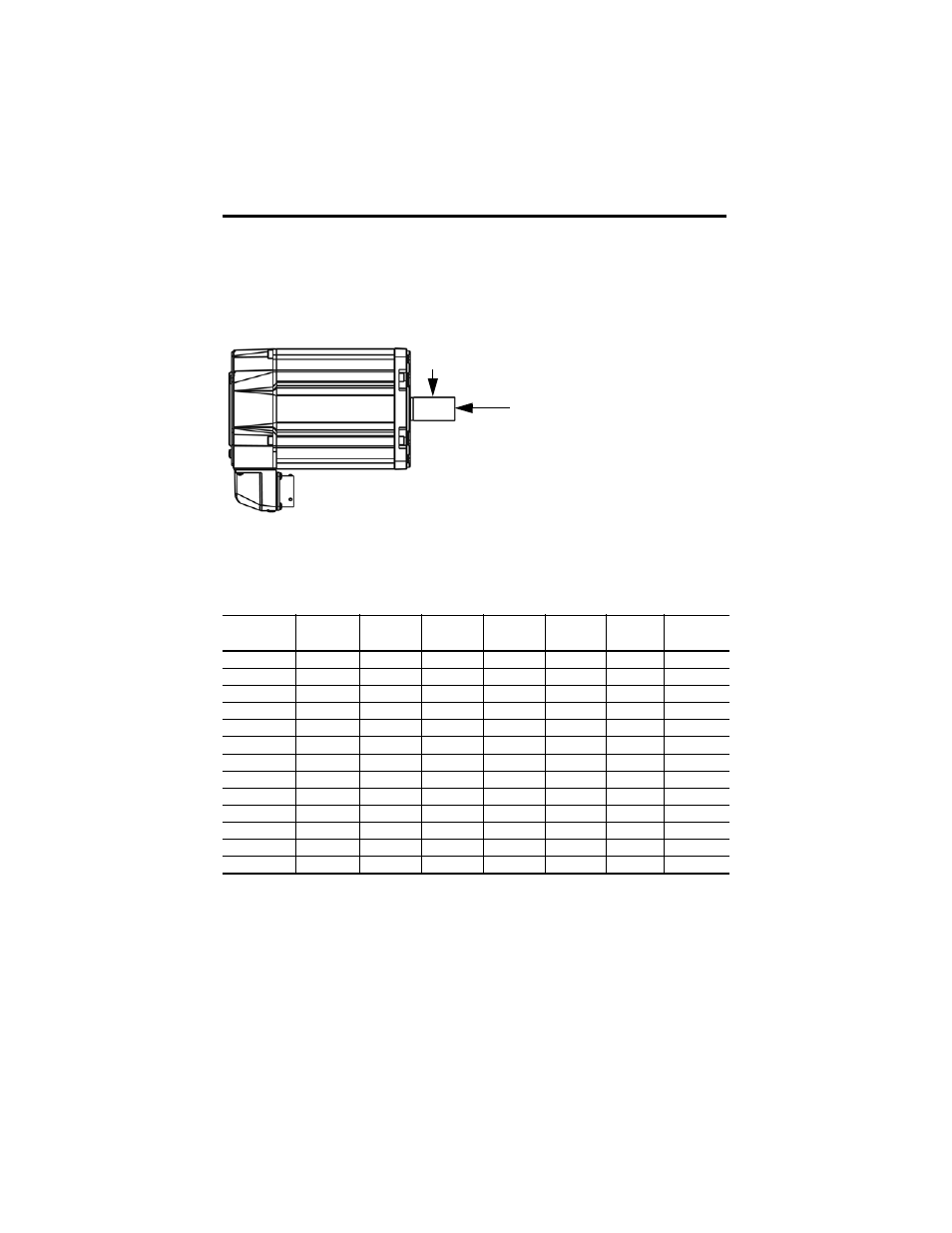

Load Forces on Shaft
The following tables represent 20,000 hour L
10
bearing fatigue life at various loads and speeds.
This 20,000 hour life does not account for possible application-specific life reduction that can
occur due to bearing grease contamination from external sources.
Radial Load Force Ratings
Motor
Cat. No. 500 rpm 1000 rpm 2000 rpm 3000 rpm 3500 rpm 4000 rpm 5000 rpm
kg (lb) kg (lb) kg (lb) kg (lb) kg (lb) kg (lb) kg (lb)
MPL-A/B310 78 (171) 62 (136) 49 (108) — — 40 (89) — — 36 (79)
MPL-A/B320 87 (192) 69 (152) 55 (121) — — 45 (100) — — 40 (89)
MPL-A/B330 — — 74 (163) 59 (129) — — 49 (107) — — 43 (95)
MPL-A/B420 — — 78 (172) 62 (136) — — 51 (113) — — 45 (100)
MPL-A/B430 106 (234) 84 (186) 67 (148) — — 55 (122) — — 49 (109)
MPL-A/B4520 — — 97 (213) 77 (169) 67 (147) 64 (140) 61 (134) 56 (124)
MPL-A/B4530 133 (292) 105 (232) 84 (184) 73 (161) — — 66 (146) — —
MPL-A/B4540 140 (309) 111 (245) 89 (195) 77 (170) — — — — — —
MPL-A/B4560 151 (332) 119 (263) 95 (209) 83 (183) — — — — — —
MPL-A/B520 — — 127 (280) 100 (222) 88 (194) — — 80 (176) — —
MPL-A/B540 — — 143 (316) 114 (251) 99 (219) — — 90 (199) — —
MPL-A/B560 — — 153 (338) 121 (268) 106 (234) — — — — — —
MPL-B580 — — 153 (338) 121 (268) 106 (234) — — — — — —
Axial load force.
Radial load force applied at center of shaft extension.
