3-2 USB Converter User Manual
Important: The MDI cable shield must be properly grounded to provide EMC
protection. On a MD60 drive, Pin 16 of the drive control terminal block
must be connected to the drive earth ground terminal.
3.2 Installing the Converter
Important: The converter must not be installed in an area where the ambient
atmosphere contains volatile or corrosive gas, vapors or dust. If the
converter is not going to be installed for a period of time, it must be stored
in an area where it will not be exposed to a corrosive atmosphere.
1. Connect the converter to the drive ( Figure 3.3 ) using the appropriate cable
Table 3.1 – Cable Descriptions (DPI)
Item Description Catalog Number
➊
DPI cable to connect the converter to a
DPI drive. 20-OIM-HIO
➋
USB cable to connect the converter to
the computer.

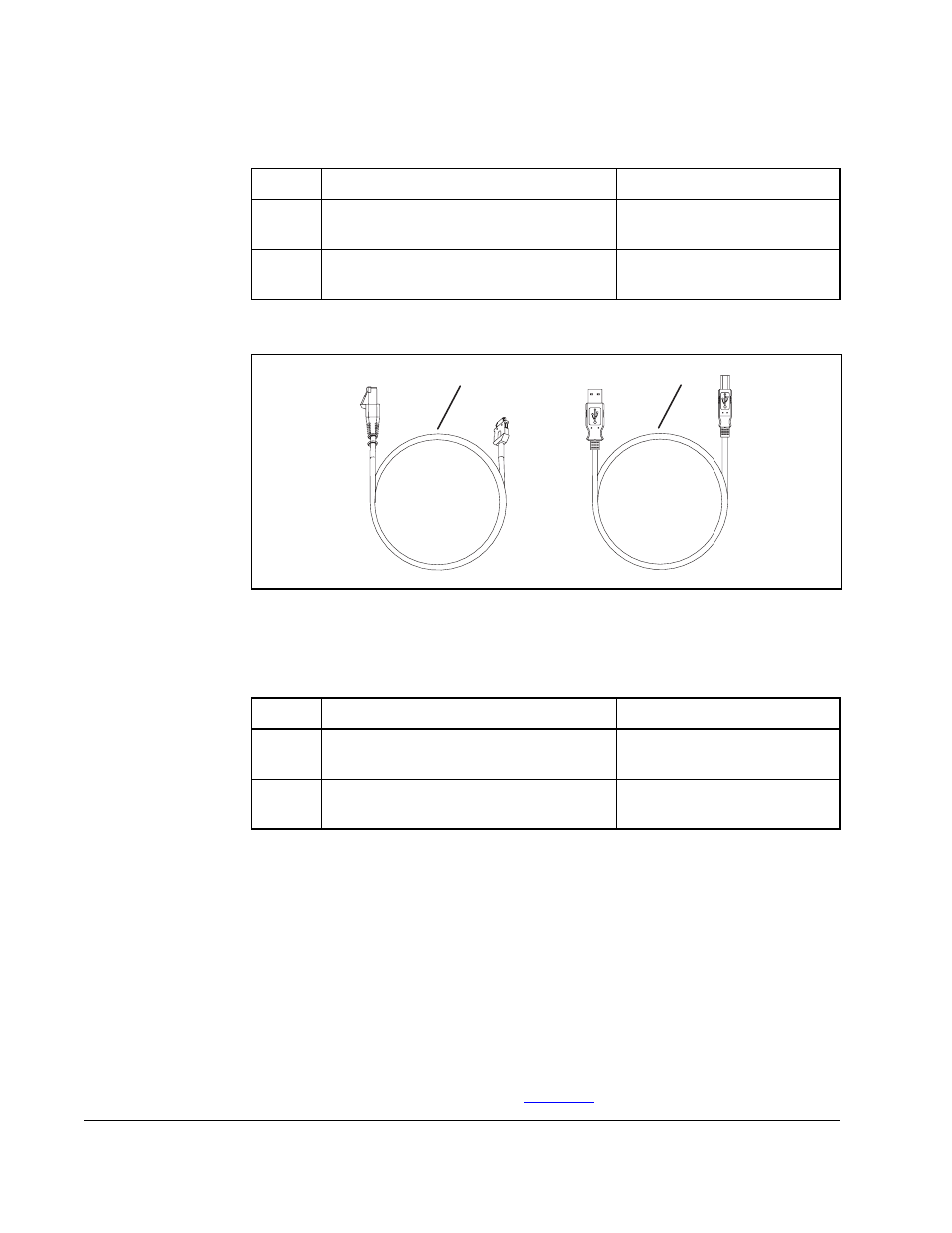

Figure 3.2 – Cables for Connecting to a MDI Drive and Computer
Table 3.2 – Cable Description (MDI)
Item Description Catalog Number
➊
MDI cable to connect the converter to a
MDI drive. 22-OIM-HIO
➋
USB cable to connect the converter to
the computer.
➊ ➋
