6 Dynamic Braking Kits for FlexPak 3000 and WebPak 3000 Digital DC Drives
Contactor Part No.
Drive HP Range Dimension
A B C D E F G H I
705310-141A
1.5 - 30 HP @ 240 VDC
3 - 60 HP @ 500 VDC 171 mm
6.73 in 120 mm
4.72 in 110 mm
4.33 in 124 mm
4.88 in 143 mm
5.63 in 91 mm
3.74 in 19 mm
0.75 in 40 mm
1.57 in 5.7 mm
0.23 in
705310-150A
40 - 60 HP @ 240 VDC
75 - 125 HP @ 500 VDC 198 mm
7.8 in 140 mm
5.52 in 120 mm
4.73 in 136 mm
5.36 in 168 mm
6.62 in 103 mm
4.1 in 10.5 mm
0.42 in 15 mm
0.6 in 6.8 mm
0.27 in
705310-160A
75 HP @ 240 VDC
150 HP @ 500 VDC 198 mm
7.8 in 140 mm
5.52 in 120 mm
4.73 in 136 mm
5.36 in 168 mm
6.62 in 103 mm
4.1 in 10.5 mm
0.42 in 15 mm
0.6 in 6.8 mm
0.27 in
705310-170A
100 HP @ 240 VDC
200 HP @ 500 VDC 207 mm
8.2 in 140 mm
5.52 in 160 mm
6.3 in 182 mm
7.17 in 178 mm
7.01 in 107 mm
4.22 in 19 mm
0.75 in 30 mm
1.2 in 6.8 mm
0.27 in
705310-180A
125 - 150 HP @ 240 VDC
250 - 300 HP @ 500 VDC 272 mm
10.71 in 200 mm
7.88 in 170 mm
6.7 in 198 mm
7.8 in 226 mm
8.9 in 140 mm
5.52 in 23 mm
0.91 in 45 mm
1.78 in 6.8 mm
0.27 in

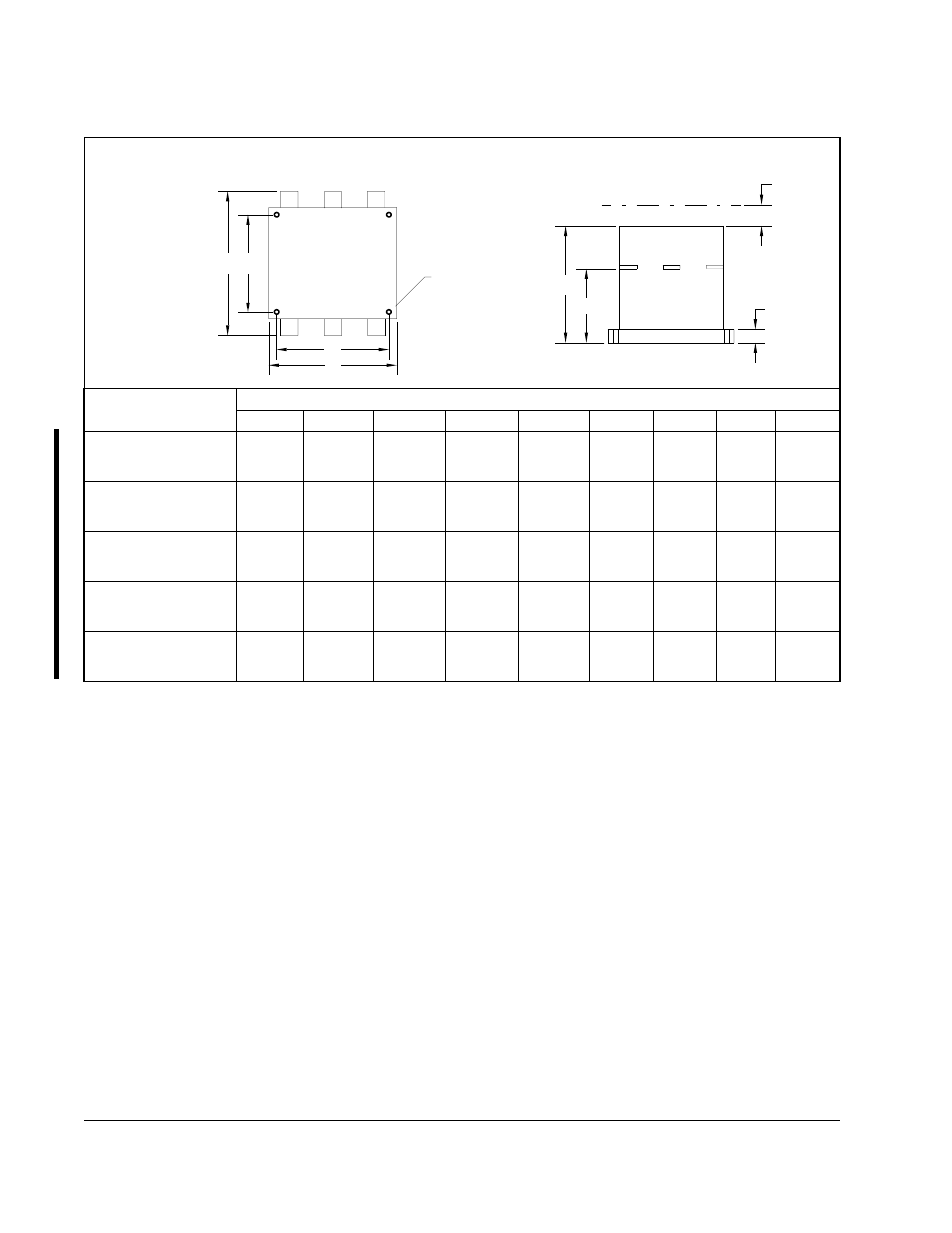

Figure 1 – DC Contactor Dimensions
B A
C
D
H
F
E
G
Uninsulated Wall
I
Top View End View
(Mounting Hole Diameter)
