Wire the input power connector, L3 l2 l1 – Rockwell Automation Logix5000 Control Systems: Connect Kinetix 5500 Drives on EtherNet/IP Network Quick Start User Manual
Page 20
20
Rockwell Automation Publication IASIMP-QS035A-EN-P - December 2012
Chapter 1 Prepare the Kinetix 5500 Drive Hardware

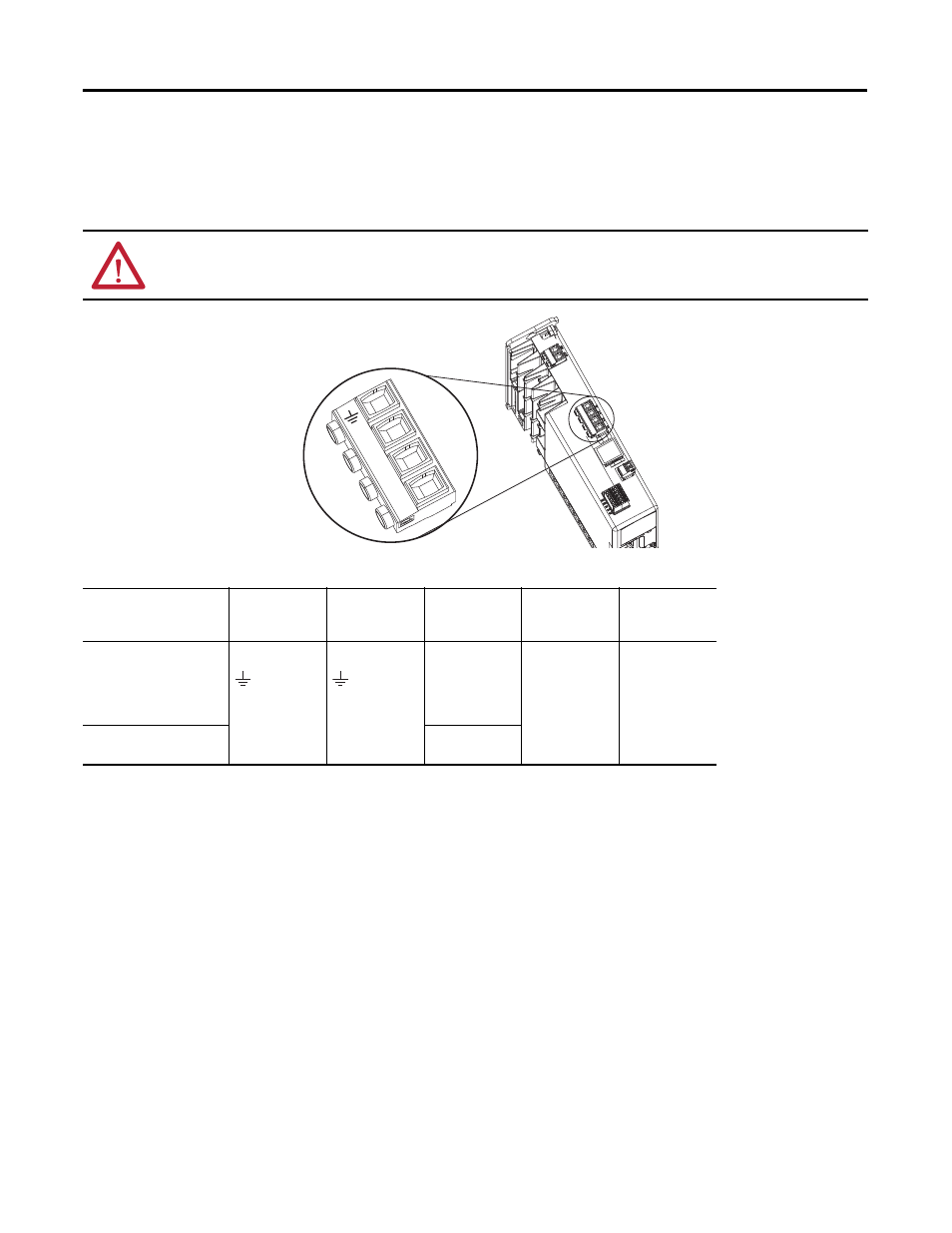

Wire the Input Power Connector
The input power (IPD) connector requires 195…528V AC (single-phase or three-phase) for mains input power.
Input Power (IPD) Connector Specifications
ATTENTION: Make sure the input power connections are correct when wiring the IPD connector plug and that the plug is fully
engaged in the drive connector. Incorrect wiring/polarity or loose wiring can cause explosion or damage to equipment.
Kinetix 5500 Drive
Cat. No.
Pin
Signal
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2198-H003-ERS
2198-H008-ERS
2198-H015-ERS
2198-H025-ERS
2198-H040-ERS
1.5…4
(16…12)
8.0 (0.31)
0.5…0.6
(4.4…5.3)
2198-H070-ERS
1.5…6
(16…10)
L3
L2
L1
Remo
ve
For DC
Bus O
nly
Kinetix 5500 Drive
Top View
Input Power (IPD) Connector Plug
L3
L2
L1
L3
L2
L1
