Chapter 4 Prepare the PowerFlex 70 Drive

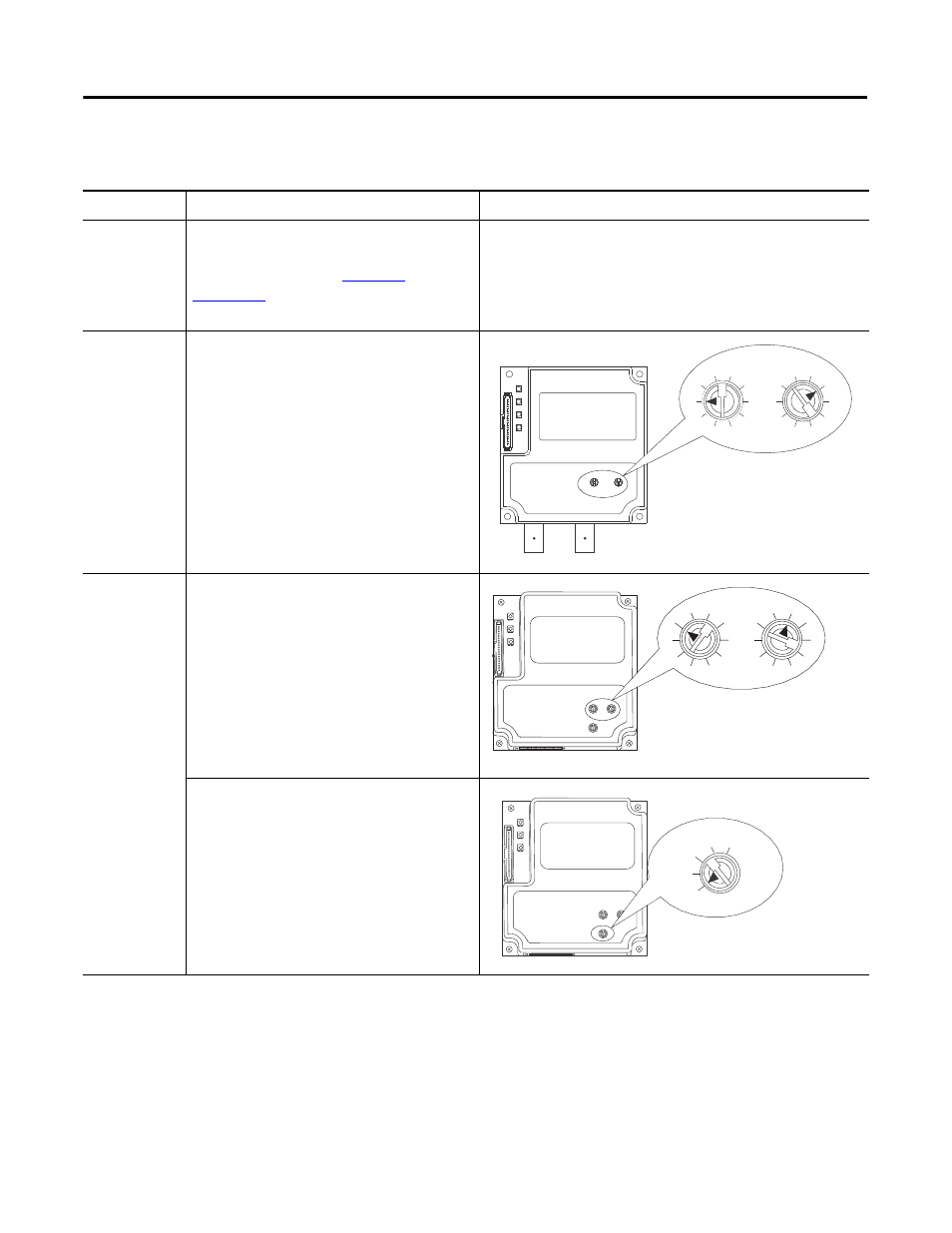

Configure the Communication Adapter
Adapter Action Figure
EtherNet/IP
20-COMM-E The Ethernet address (MAC) is found on
the adapter’s label. Record the Ethernet
address (MAC) on the
Network
Worksheet . This address is used to set
the IP address later in the quick start.
For example:
ControlNet
20-COMM-C Set the adapter’s node address.
The quick start examples use node
number 4.
DeviceNet
20-COMM-D 1. Set the adapter’s node address.
The quick start examples use node
number 13.
2. Set the adapter for autobaud.
HW Address 00:00:BC:21:D7:BE
2
1
0
9
8
3
4
5
6
7
2
1
0
9
8
3
4
5
6
7
Tens
Digit Ones
Digit
A B
4 Shown
2
1
0
9
8
3
4
5
6
7
2
1
0
9
8
3
4
5
6
7
Tens
Digit Ones
Digit
13 Shown
PGM 500K
250K
125K
AUTO
AUTO Shown
