Publication IASIMP-QS001C-EN-P - October 2009 53
Prepare the Distributed POINT I/O Hardware Chapter 3

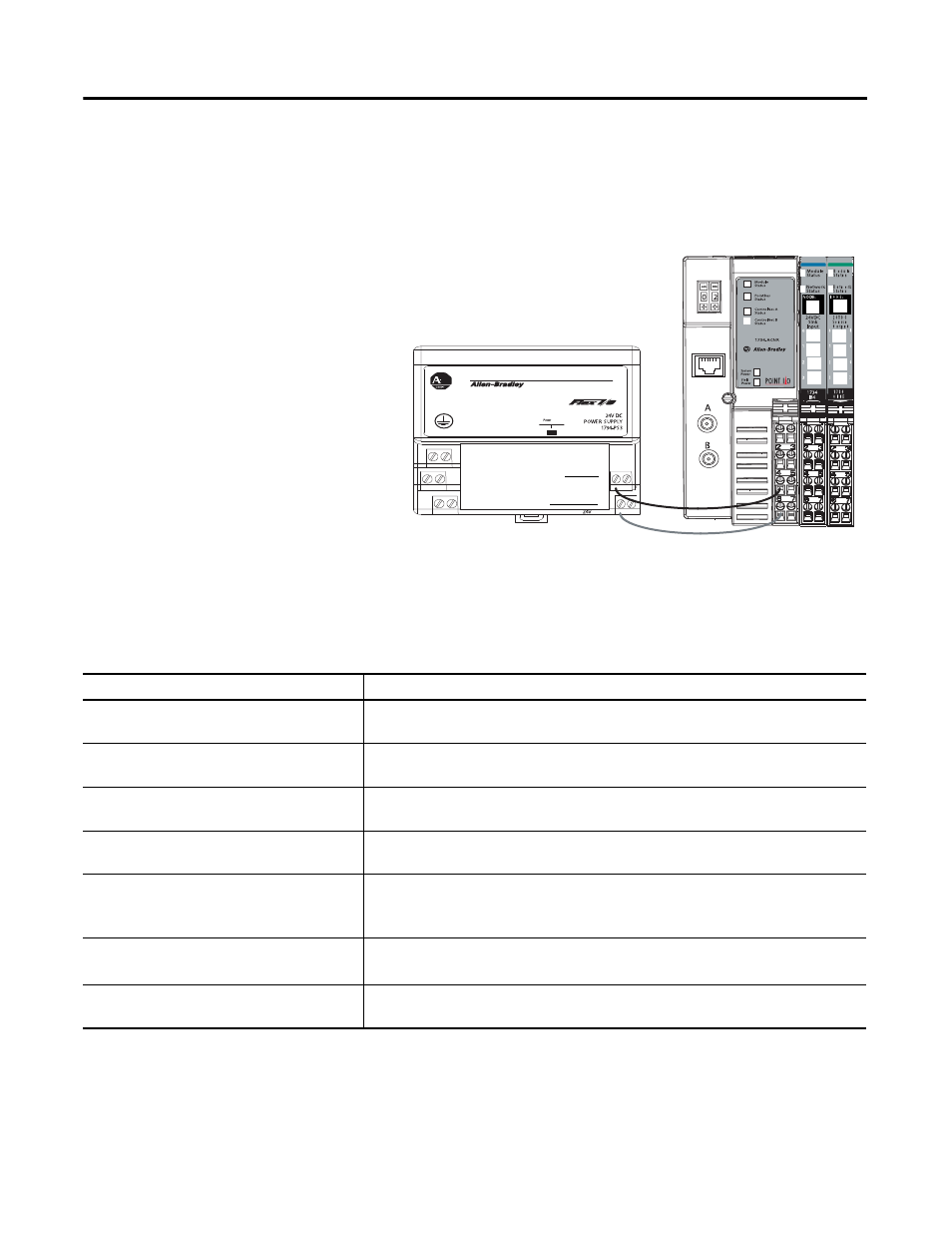

Wire the Adapter and I/O Modules to the Power Supply
POINT I/O adapter, I/O modules, and power supply
Additional Resources
Resource Description
Point I/O Ethernet Adapter Installation
Instructions, publication
1734-IN590
Provides details regarding installation of the adapter and technical specifications.
1734 Point I/O ControlNet Adapter Installation
Instructions, publication
1734-IN582
Provides details regarding installation of the adapter and technical specifications.
Point I/O DeviceNet Adapter Installation
Instructions, publication
1734-IN026
Provides details regarding installation of the adapter and technical specifications.
POINT I/O Wiring Base Assembly Installation
Instructions, publication
1734-IN511
Provides details regarding installation of the POINT I/O wiring base.
Cold Junction Compensated Terminal Block
Installation Instructions, publication
1734-IN583
Provides details regarding installation of the Cold Junction Compensated Terminal
Block wiring base.
Point I/O Protected Output Module Installation
Instructions, publication
1734-IN056
Provides details about the installation and wiring of POINT I/O Protected Output
Modules.
FLEX I/O DC Power Supply Modules Installation
Instructions, publication
1794-IN069
Provides details about the installation and wiring of FLEX I/O power supplies.
Common
Power
1. Connect the 12/24V DC
common and 12/24V DC
power wires from the power
supply to the adapter.
2. Refer to the individual POINT
I/O installation instructions for
wiring the I/O modules.
3. Turn on incoming power.
