Create a PowerFlex 40 Application Chapter 13
Edit PowerFlex 40 Parameter Values
TIP
Use the table below as a reference when editing parameter values as instructed on
When power is first applied to the PowerFlex 40 drive, the display defaults to the
current value.

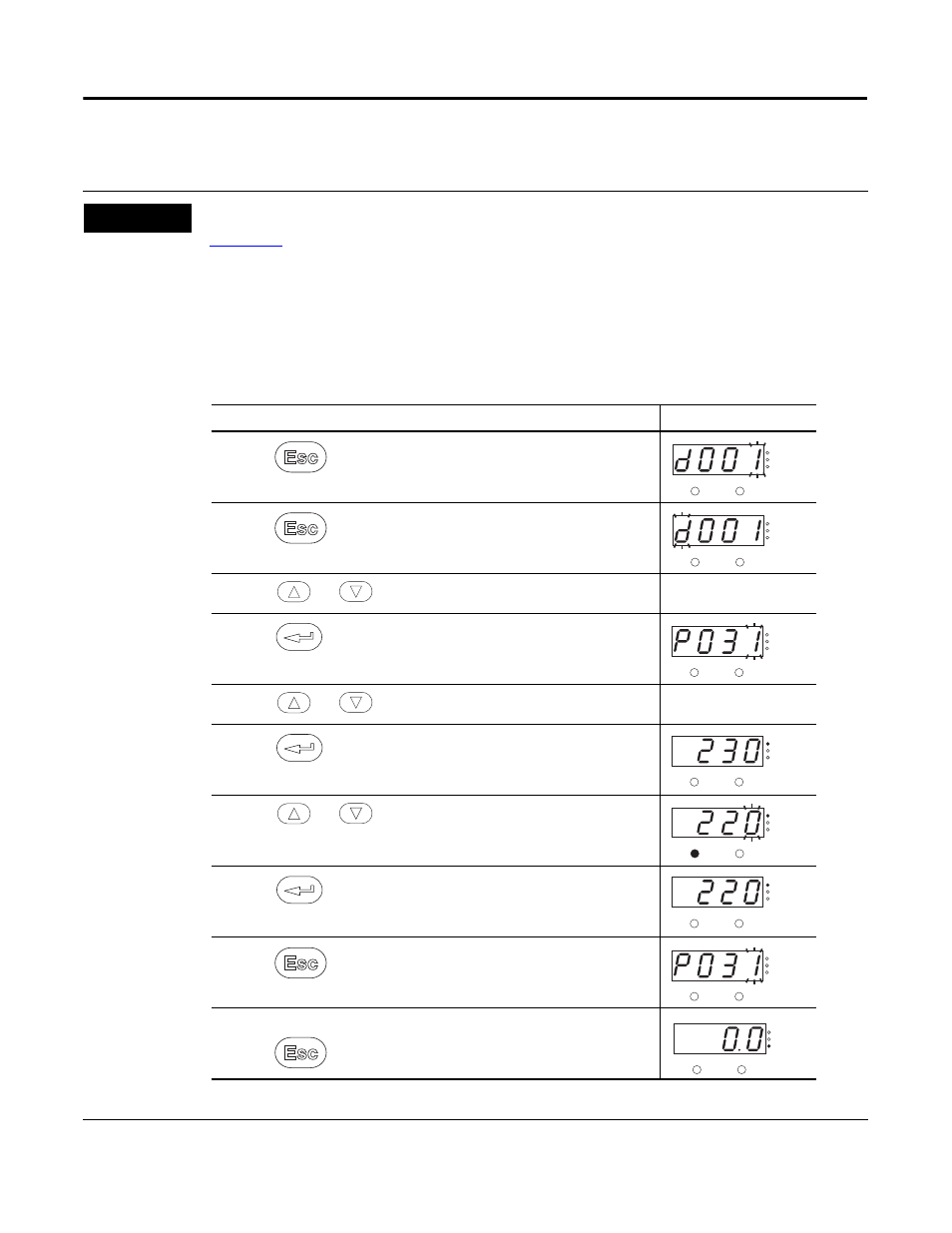

Reference for Editing Parameters
Step
Displayed
1. Press .
The parameter number is displayed and blinks.
2. Press
to select the group letter.
The group letter blinks.
3. Press
or
to scroll through the group letters.
4. Press
to select the desired group letter.
The parameter number blinks.
5. Press
or
to scroll through the parameter numbers.
6. Press
to select the desired parameter number.
The parameter value is displayed.
7. Press
or
to scroll through the parameter values.
The values blink as you scroll through them.
8. Press
to select the desired parameter value.
The parameter stops blinking.
9. Press
to return to the parameter number.
10.Follow this procedure to change other parameter values, or
press
repeatedly to return to the value display.
