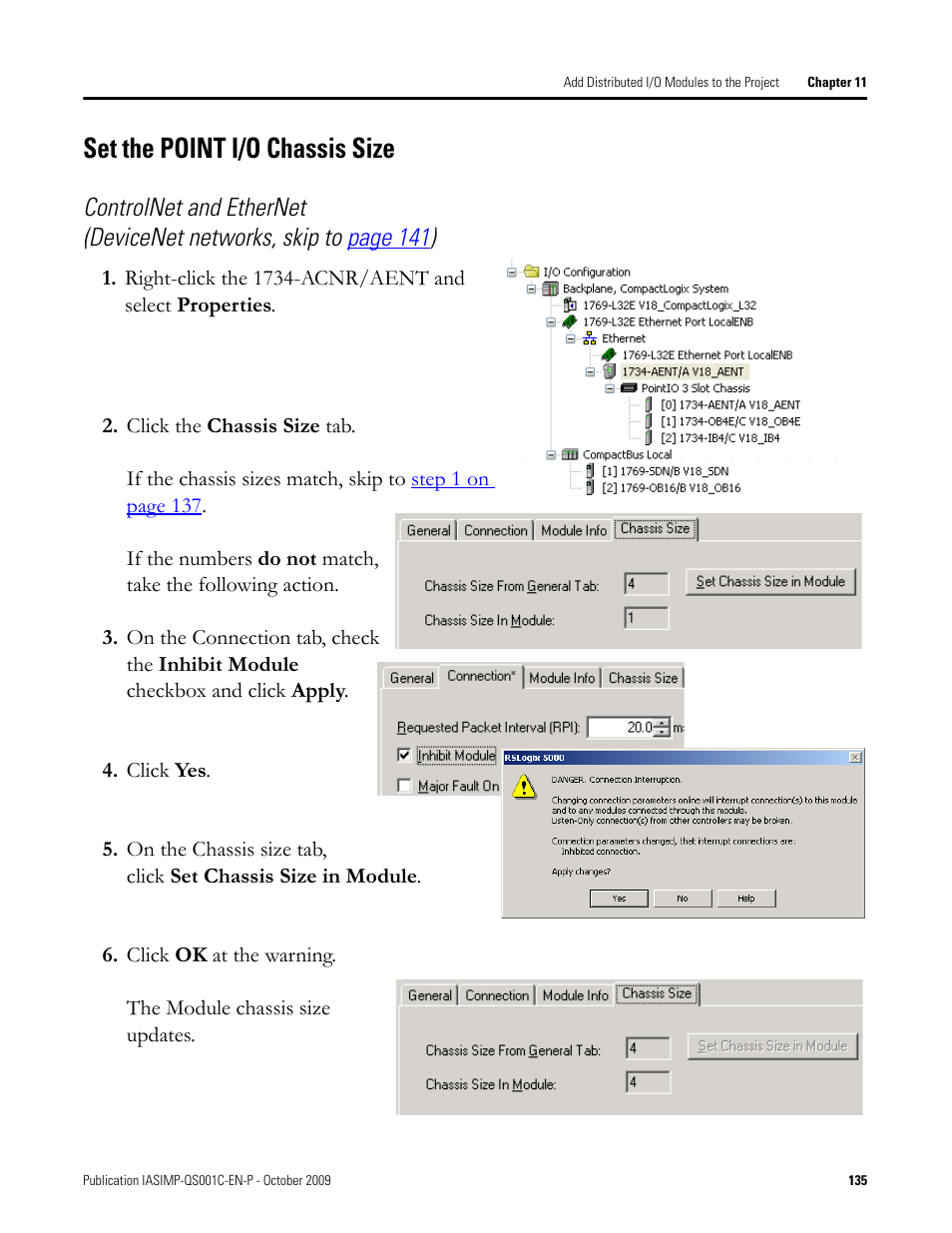

Set the point i/o chassis size, Set the point i/o, Chassis size – Rockwell Automation 1769-L3xx CompactLogix System Quick Start User Manual
Page 135
