20

Entek 9000 Series Sensor Installation Guide

Connecting 9000 Series Sensors to Monitors

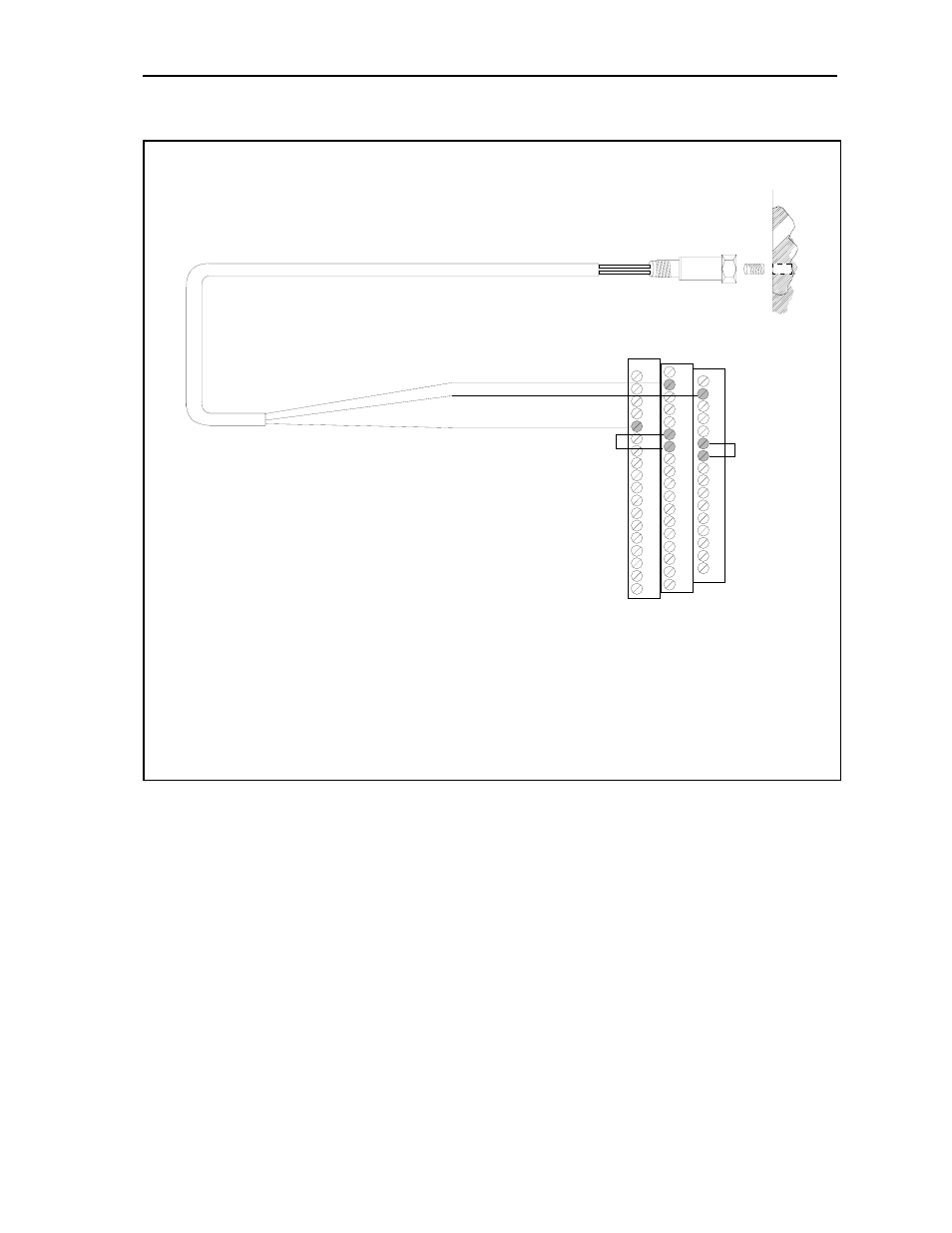

TYPICAL WIRING FOR IEPE ACCELEROMETER

TO XM-120/121/122 VIBRATION MODULE CHANNEL 2

Shield Ground

Pin A - Signal
Pin B - Common

Cable shield not
connected at this end

1

17

22

6

21

Channel 1 Input Signal

Signal Common

5

38

Jumping terminals
5 to 6 & 21 to 22
configure the
transducer power
supply for IEPE
tranducer(s)

Channel 2 Input Signal

Note: You may ground the cable shield at either end of the cable. Do not ground the shield
at both ends. Recommended practice is to ground the cable shield at the XM terminal base
and not the sensor.

Note: The internal transducer power supply is providing power to the 9000 sensor.
