Tool bar – Rockwell Automation RSLogix 5000 Fuzzy Designer User Manual
Page 58
Publication LOGIX-UM004A-EN-P - March 2007
58 FuzzyDesigner Graphical User Interface
Tool Bar
The Tool Bar (see FuzzyDesigner Tool Bar) submenu on the View
menu enables access to the commands for customizing the
FuzzyDesigner tool bar. A tool bar button can be set as visible or
invisible by clicking the appropriate Tool Bar submenu commands.

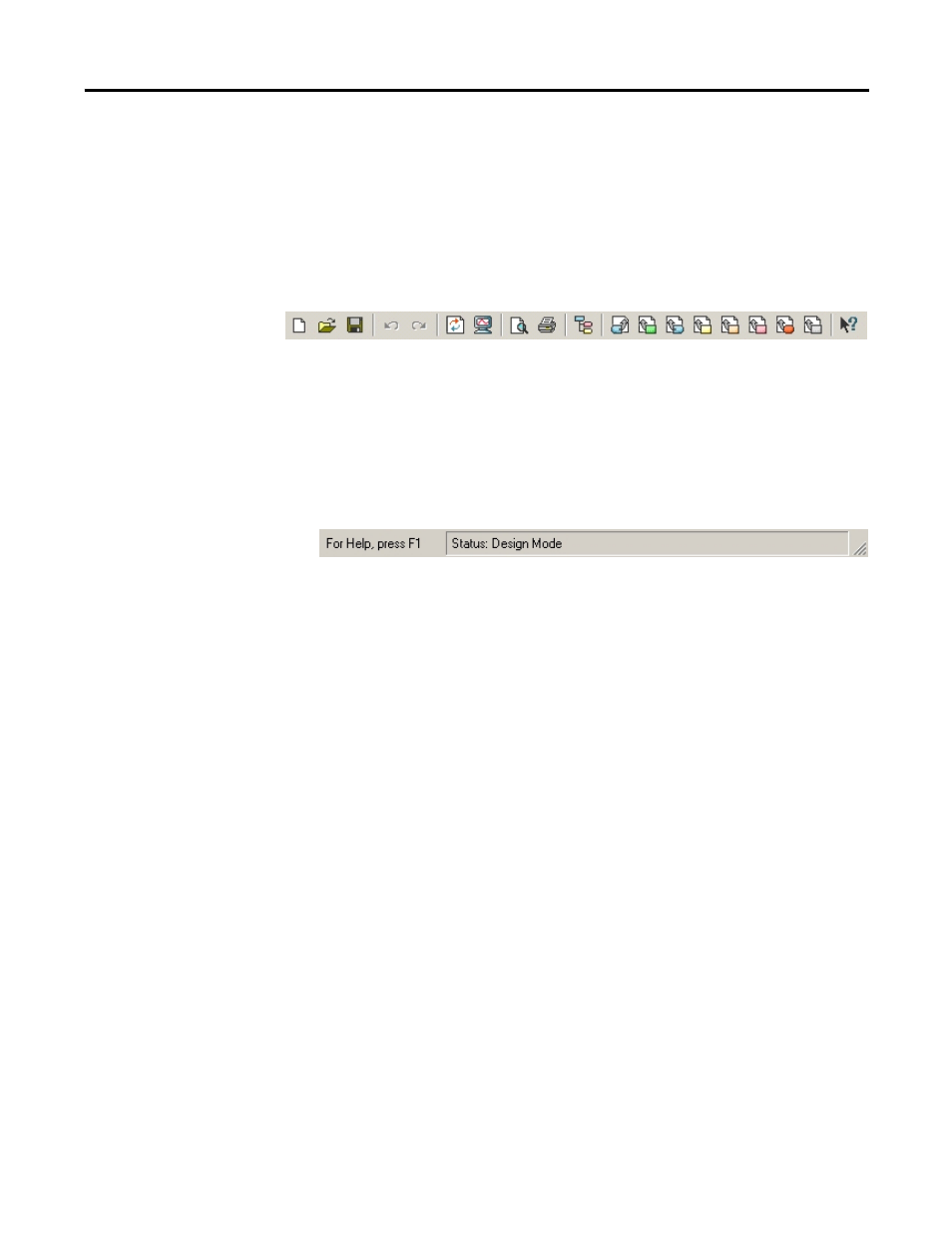

FuzzyDesigner Tool Bar
Status Bar
The Status Bar (see FuzzyDesigner Status Bar) menu command on
the View menu enables you to set the status bar of FuzzyDesigner as
visible or as invisible. The status bar shows FuzzyDesigner modes (see
FuzzyDesigner Control Basics), and error messages.
FuzzyDesigner Status Bar
Tree View
The Tree View (see FuzzyDesigner Tree View) menu command on
the View menu enables you to set the Tree View tab control page
visible or invisible (see Working with Projects). You can also do this
by clicking the tool bar button with the same name (shown as a tool
tip).
To resize the Tree View tab control page, use your mouse and drag
the splitter on the right side of the tab control.
