FuzzyDesigner Projects 119
• Base Variable Property – This is located on the left bottom
corner of the main graph window. You can hide it by using a
graph toolbar button. The window displays the base curve
information (the curve on top of the legend). Unit, name, color,
and range are displayed.
History Graph
History Graph Control – Context Menu
Two context menus are available for history graph control.

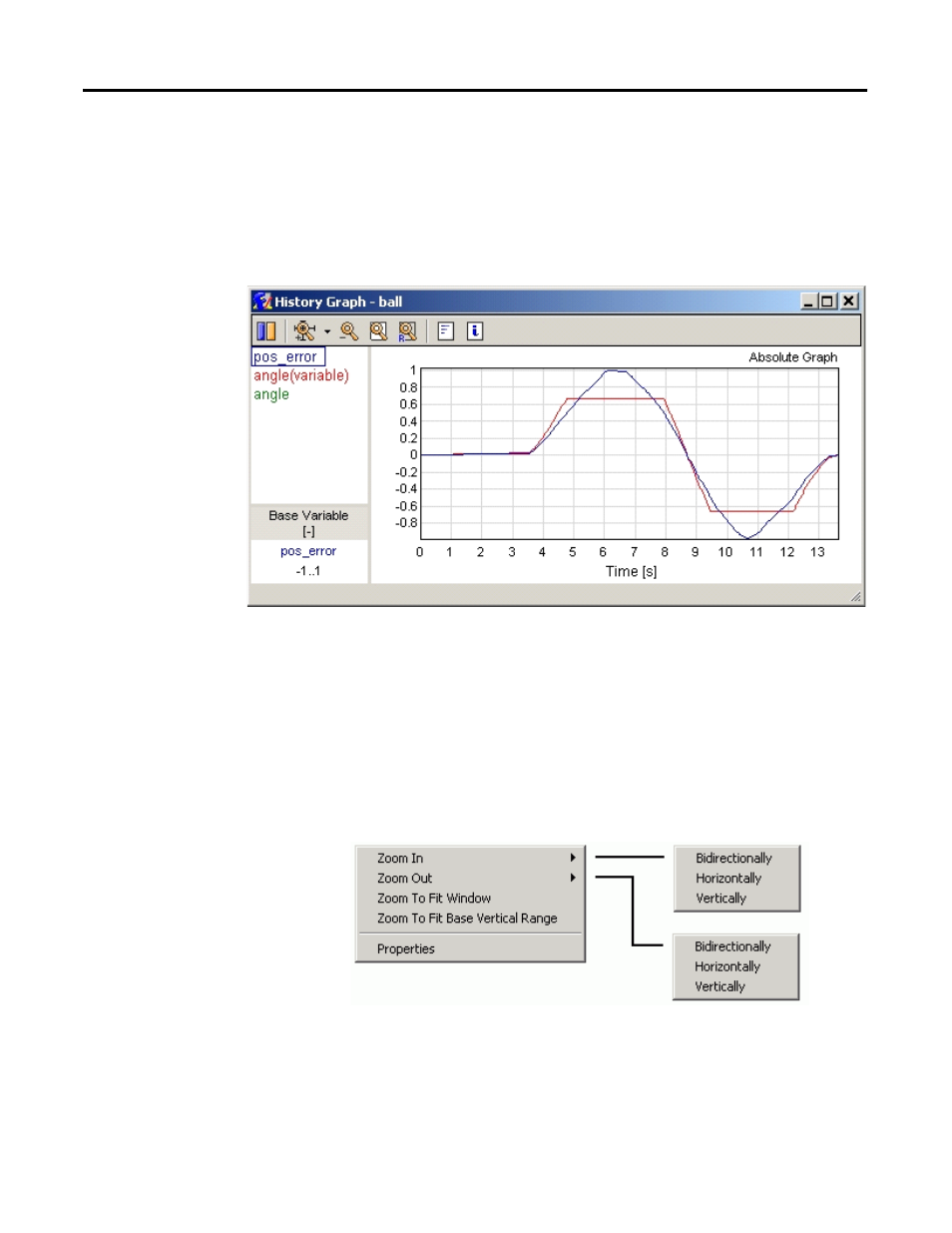

The first menu, shown below, appears when you right-click the graph.
The menu items are explained below.
History Graph Context Menu
• Zoom In – Zooms in on the graph. The maximum size depends
on the base vertical range and maximum (on an absolute scale)
real displayed value.
