Publication LOGIX-UM004A-EN-P - March 2007
FuzzyDesigner Projects 125
• Path – Change the visibility and color of the path (trace), see
section 2D Graph. You can also delete the complete path.
• Graph Properties – Open the 2D Graph Properties Dialog (see
section 2D Graph).

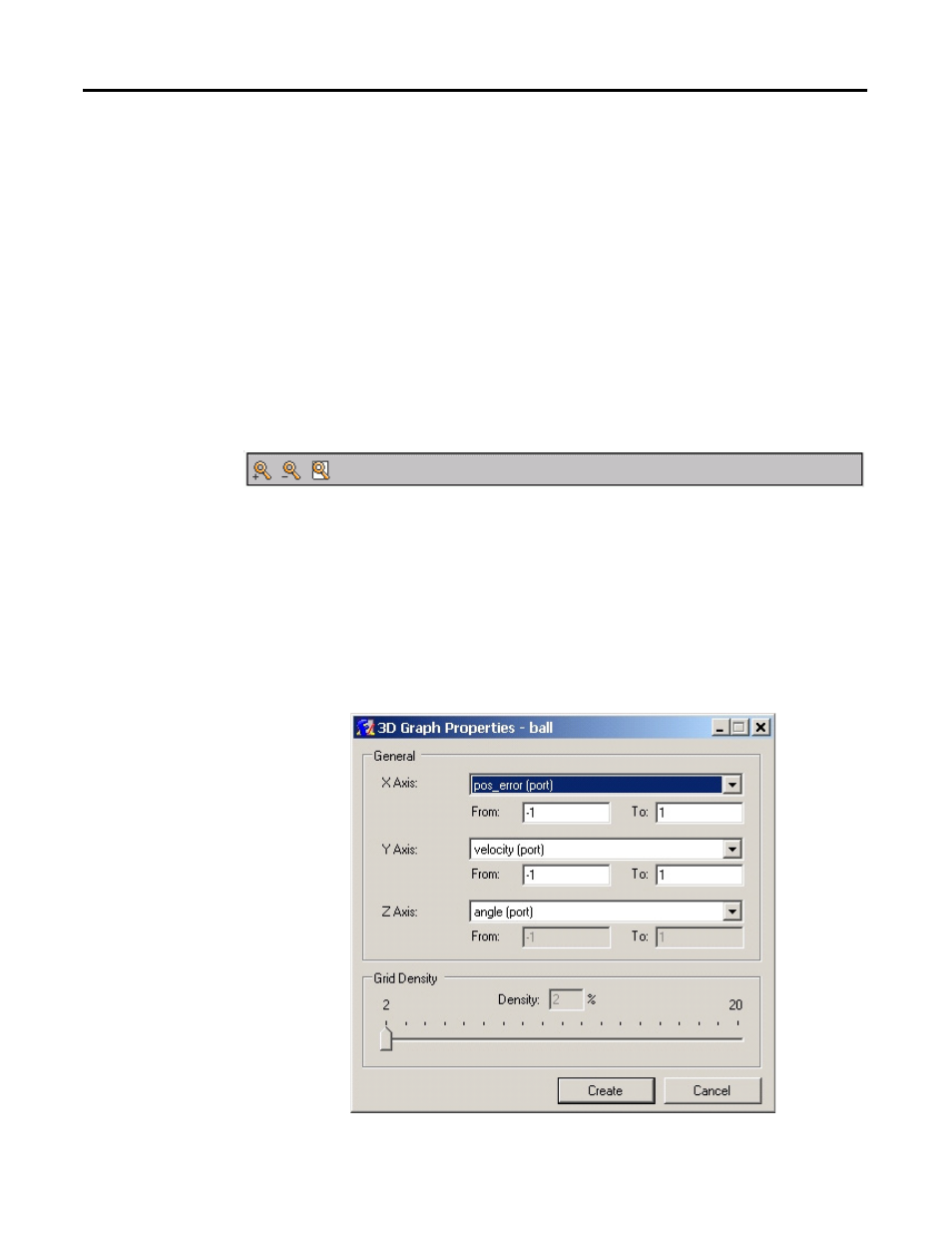

2D Graph Control – Tool Bar
The tool bar (see 2D Graph Tool Bar) has three buttons: Zoom In,
Zoom Out, and Zoom To Fit Window. All of them have the same
function as the menu items with the same name.
2D Graph Tool Bar
3D Graph When you click the Tools\3D Graph main menu command, then 3D
Graph Properties dialog (see 3D Graph Properties Dialog) appears
and you can set up the graph properties.
• General group box – Specify general properties of the required
3D graph.
3D Graph Properties Dialog
