Trusted, Communication interface t8151b, Maximum cable length – Rockwell Automation T8xxx Trusted Communications Interface User Manual

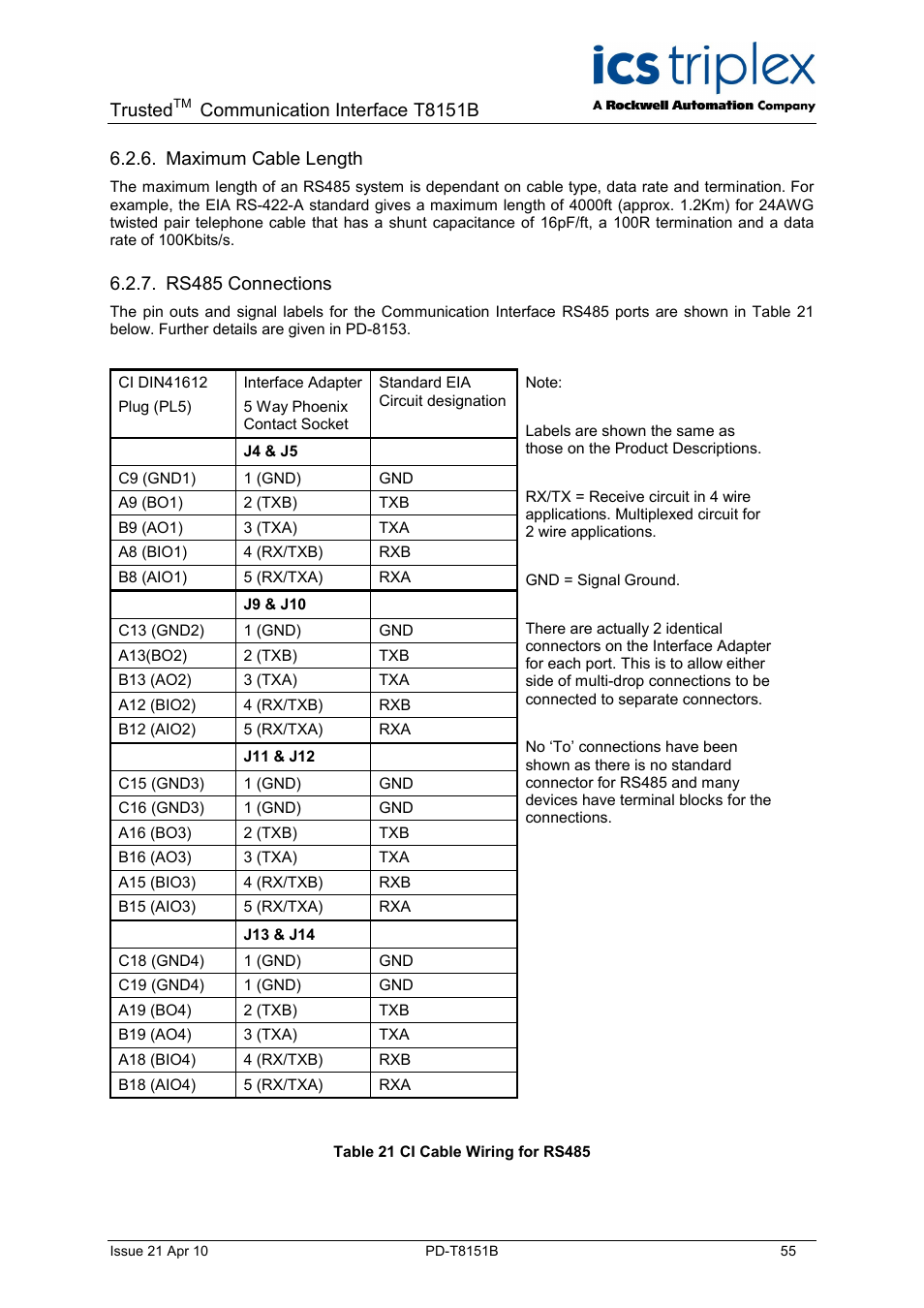

Page 55: Rs485 connections
