Trusted, Communication interface t8151b, Signal ground – Rockwell Automation T8xxx Trusted Communications Interface User Manual

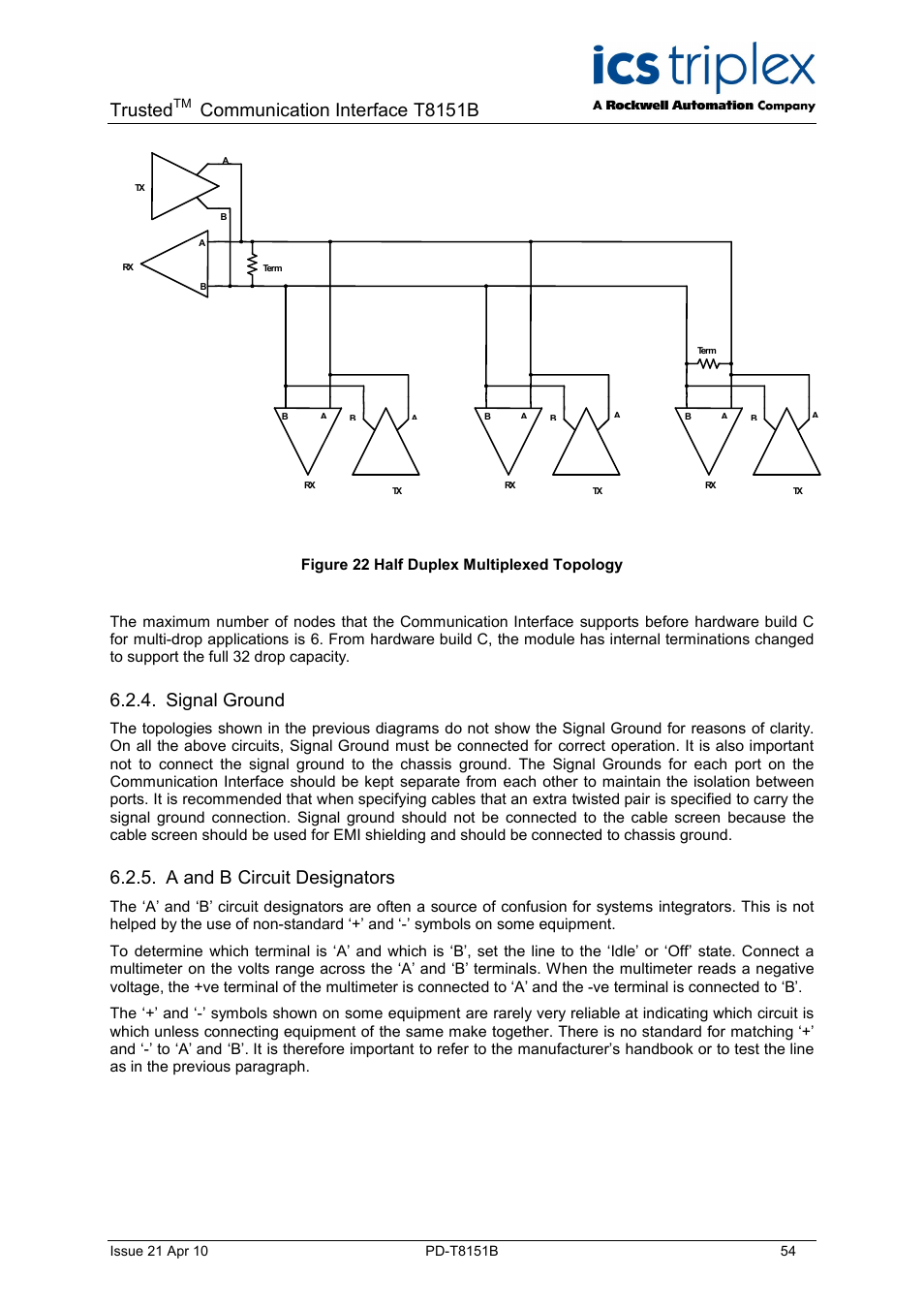

Page 54: A and b circuit designators
