2-10 AutoMax Distributed Power System Overview
The faceplate contains transmit and receive ports for one channel of fiber-optic cable
and 15 LEDs to indicate the status of the PMI and inverter circuitry, the feedback
device, the drive I/O, and the communication link to the UDC module. The resolver
feedback connector is shared by the resolver interface and the analog input in the
same manner as on the Resolver & Drive I/O module in the PMI rack. The faceplate
also provides a connector for drive I/O. Two rail ports on the module’s faceplate
provide connection to AutoMate digital and analog rails.
2.4.2 SA3000 Medium Power Drives (70-240 Amp)
The hardware components of a SA3000 Medium Power drive are the four-slot PMI
rack and the Medium Power SA3000 AC Power Modules. These are shown in
figure 1.3 and are described in detail in the following sections.
2.4.2.1 SA3000 Four-Slot PMI Rack and Modules
The same four-slot PMI rack is used for Medium Power SA3000 drives that is used for
SD3000/SF3000 DC drives. The first three slots contain the same Power Supply
module, PMI Processor module, and Resolver & Drive I/O module found in the DC
PMI rack. For AC drive control, however, the rightmost slot contains an AC Power
Technology module. Refer to figure 2.5.

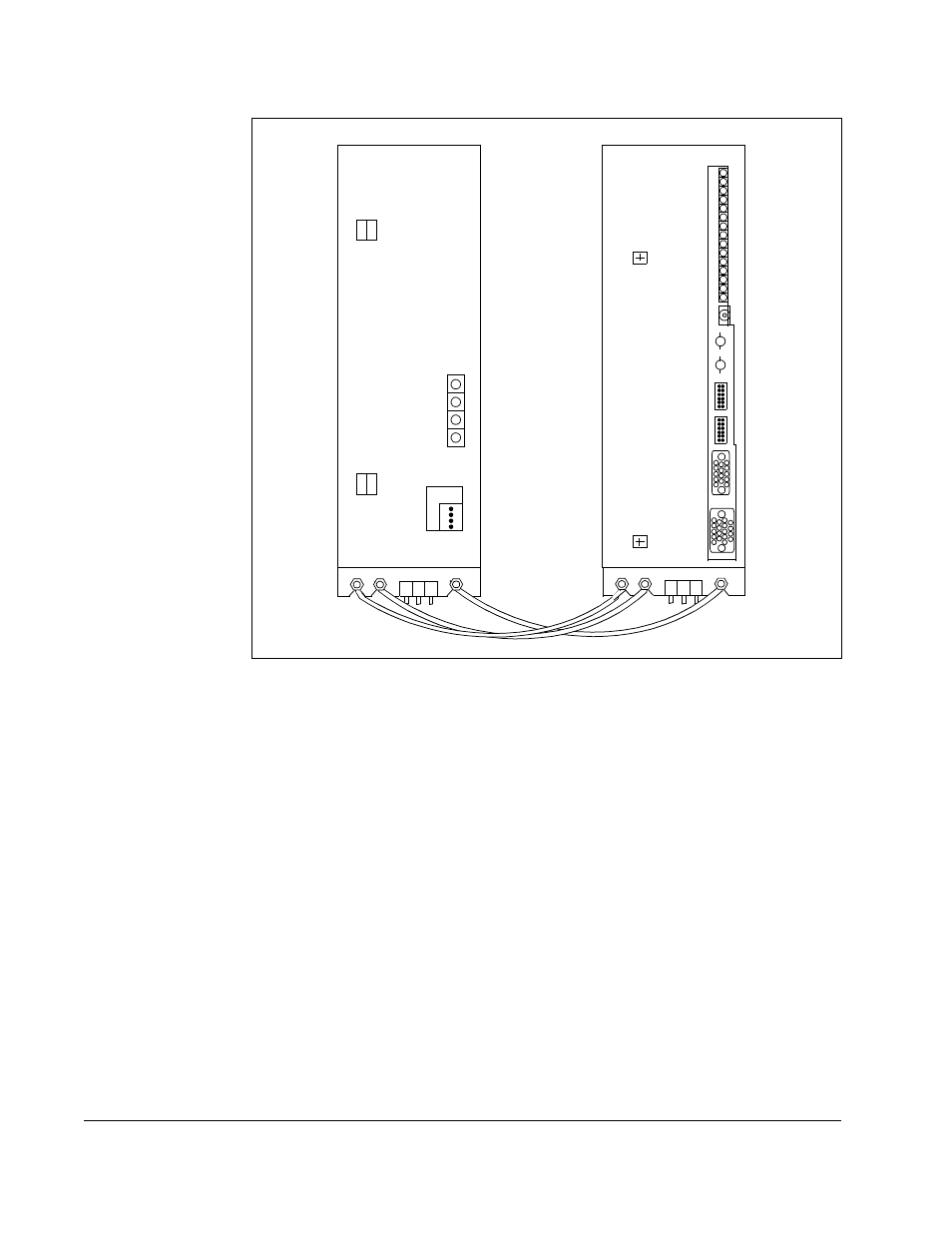

Figure 2.4 – SA500 DC Bus Supply and Power Module
PHASE LOSS
OVER TEMP.
DISABLED
PSM READY
TB1
PWR OK
OK
COMM OK
P.M. FLT
EXT FLT
RAIL FLT
FDBK OK
RPI
MCR
AUX IN1
AUX IN2
AUX IN3
AUX IN4
AUX IN5
AUX OUT
P1
P2
P3
P4
P5
P6
RE-BOOT
COMM
LINK
RAIL
PORT 0
RAIL
PORT 1
RESOLVER
FEEDBACK
DRIVE I/O
XMT
RCV
DC BUS SUPPLY POWER MODULE
POS NEG GND
L1 L2 L3
POS NEG GND
U V W
