Cleaning the
Chassis Fan Filters
Publication 6155-IN001C-EN-P
Chapter 6
Maintenance
This chapter describes routine maintenance procedures.
Clean the chassis fan filters at least once a month under normal
conditions. You may need to clean the filters more frequently if the
6155 Computer is located in an area with high levels of dust.
Important: You must clean the chassis fan filters properly to maintain
the thermal integrity of the 6155 Computer.
To clean the chassis fan filters:
1. Disconnect all power from the 6155 Computer.
2. Snap out the filter and retainer.
3. Remove the filter pad and clean the filter and filter pad with
soap and water and allow it to dry before installing.
4. Press down on the filter retainer until it snaps firmly into place on
the fan.
ATTENTION: Disconnect all power from the 6155
Computer before removing components. Failure to
disconnect power could result in severe electrical shock
or damage to the 6155 Computer.

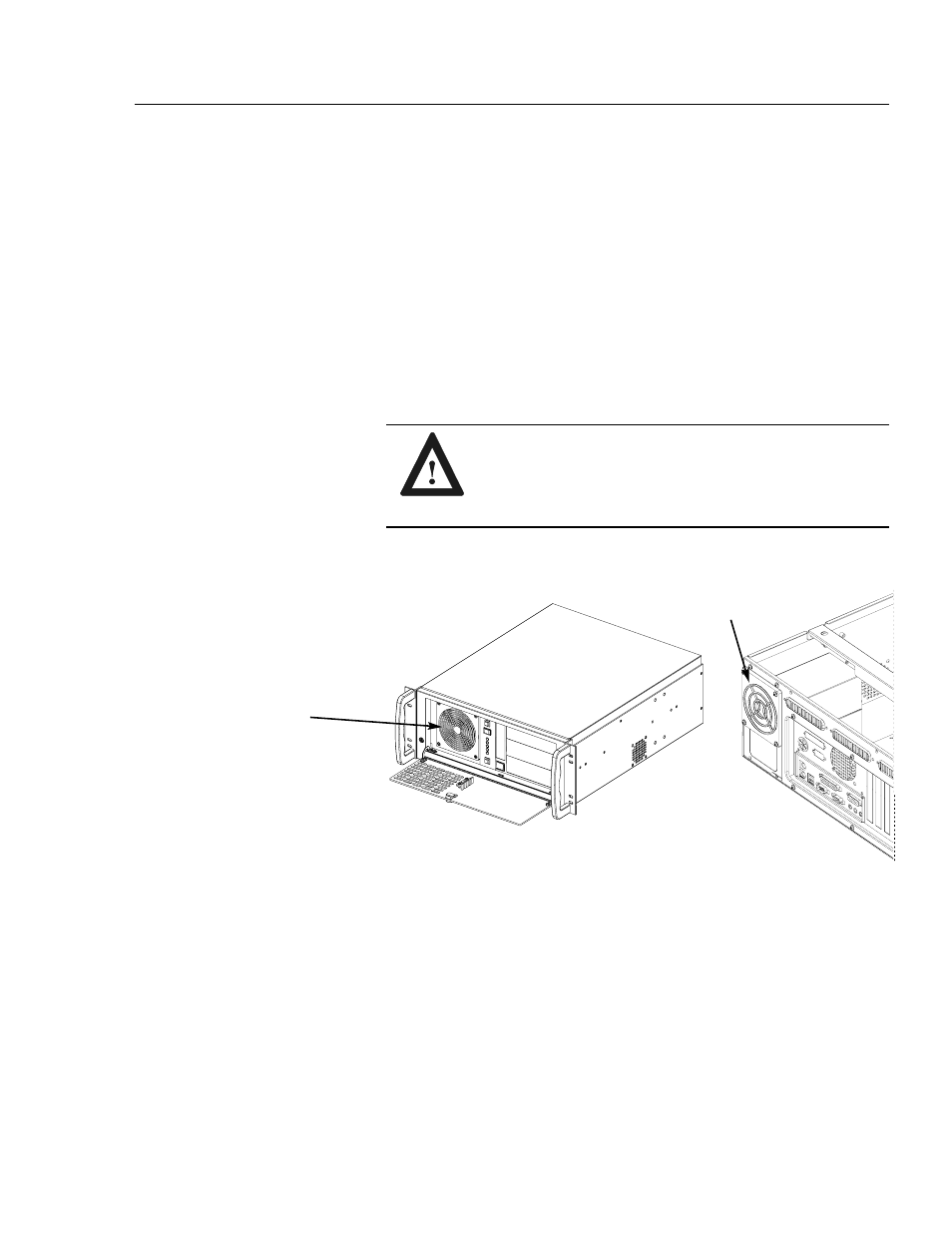

Front Fan Filter
and Retainer
Rear Fan Filter
and Retainer
