Opening the
Computer Chassis
Bulletin 6155 Industrial Computer
2-3
Publication 6155-IN001C-EN-P
You will need to connect a number of cables at the rear of the unit
before your Industrial Computer will function. This section describes
the cable connections you will need to make. While installing cables, be
sure to keep the following points in mind.
• Connect the cables according to the options in your Industrial
Computer.
• Route and secure the cables. In cases where the cable crosses a door
hinge, be sure to leave enough excess cable for a loose fit in all door
positions.
• Coil and secure any extra cable length in a convenient location.
• Refer to the illustrations provided for help in routing and connecting
the cables required to use your Industrial Computer.
You may have to open the computer chassis to install a card or for some
other reason.

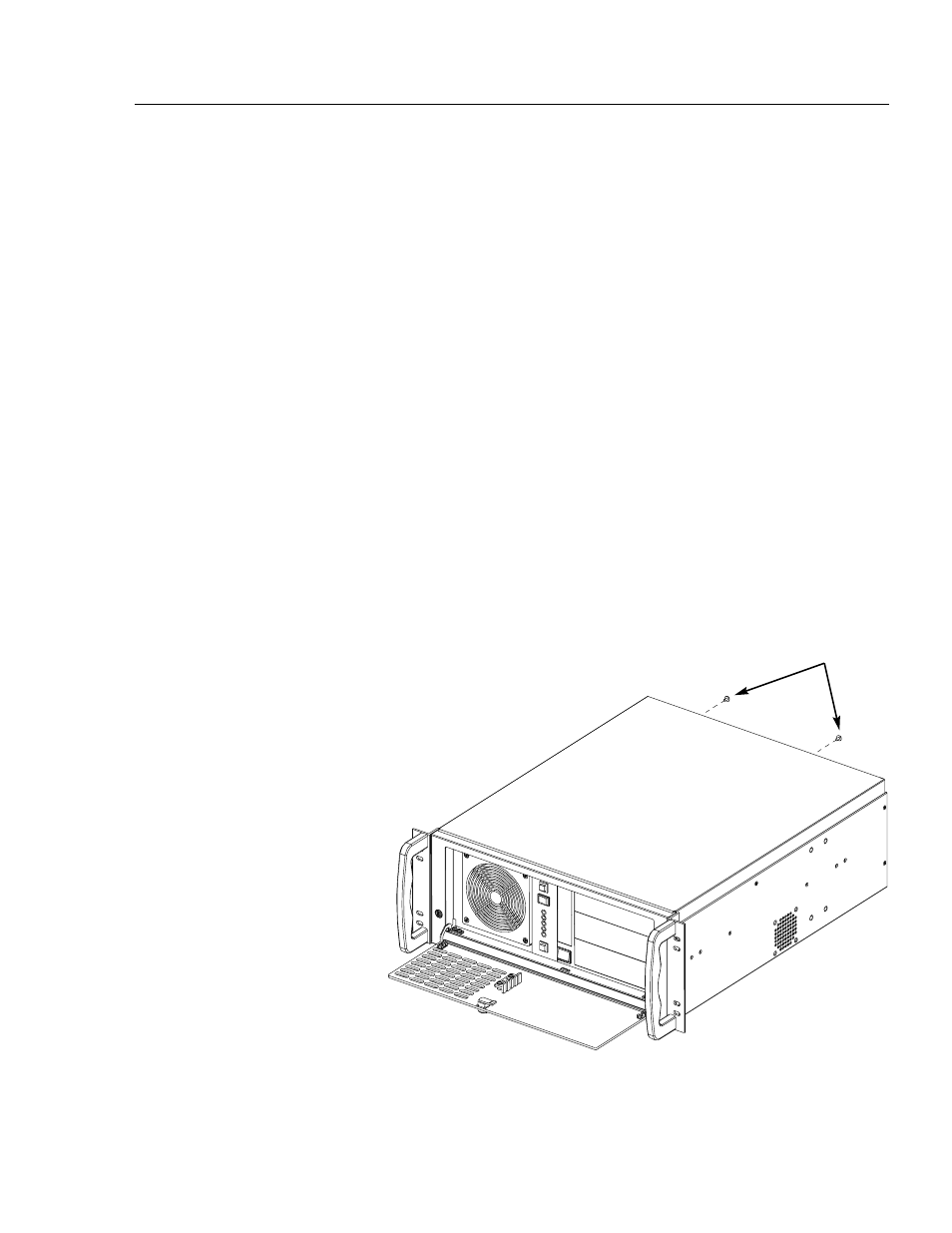

1. Remove the two screws at the back of the top cover of the unit.
2. Slide the cover straight back at least 6mm (0.25 in.) and then lift off.
Screws
Installing Cables
