41 Publication 4100-UM052B-EN-P - October 2001
AEC AEC
Reset
Axis 0 Axis 1
A
B
A
B
Axis 1
Axis 0
2
1
SSI
Control
Configur
ation
Configur
ation
Switches
Switches
Encoder
Encoder
Po
w
e
r
SSI
Control
A B
10
9
8
7
6
2
5
4
3
1
8
7
6
2
4
3
1 5
A B
10
9
8
7
6
2
5
4
3
1
8
7
6
2
4
3
1 5
Appendix
A
Specifications

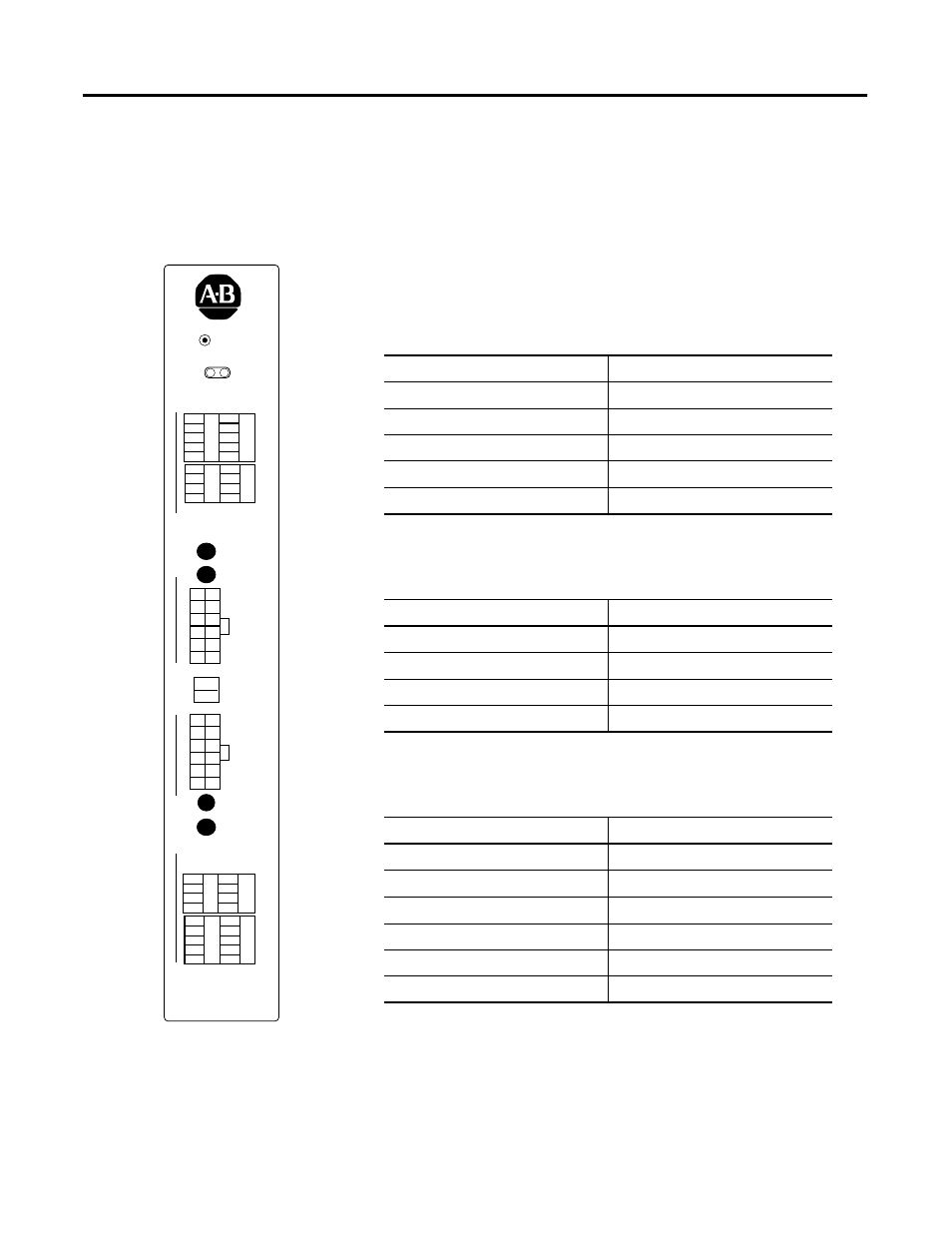

Figure 13
AEC Front
Panel Figure A.1 shows the connector locations for the AEC. The following
tables provide the pin numbers and their respective descriptions.
SSI Connector
Plug A Plug B
10 = Clock + 5 = Clock -
9 = Data + 4 = Data -
8 = Shield 3 = Transducer Power +5V DC
7 = Transducer Power Return 2 = Transducer Power +15V DC
6 = Shield 1 = Transducer Power +24V DC
Control Connector
Plug A Plug B
8 = Reference + 4 = Reference -
7 = N/O Fault Relay Contact 3 = N/O Fault Relay Contact
6 = N/C Fault Relay Contact 2 = N/C Fault Relay Contact
5 = Shield 1 = Shield
Encoder Connector
Plug A Plug B
12 = Z - 6 = Z + (Blue)
11 = B - 5 = B + (Green)
10 = A - 4 = A + (White)
9 = Strobe - 3 = No Connection
8 = Reference Shield Input 2 = Strobe +
7 = Reference - Input 1 = Reference + Input
