Rockwell Automation 4100 AEC Absolute Encoder Converter Installation User Manual
Page 21
Publication 4100-UM052B-EN-P - October 2001
Installation & Hook-Up 13

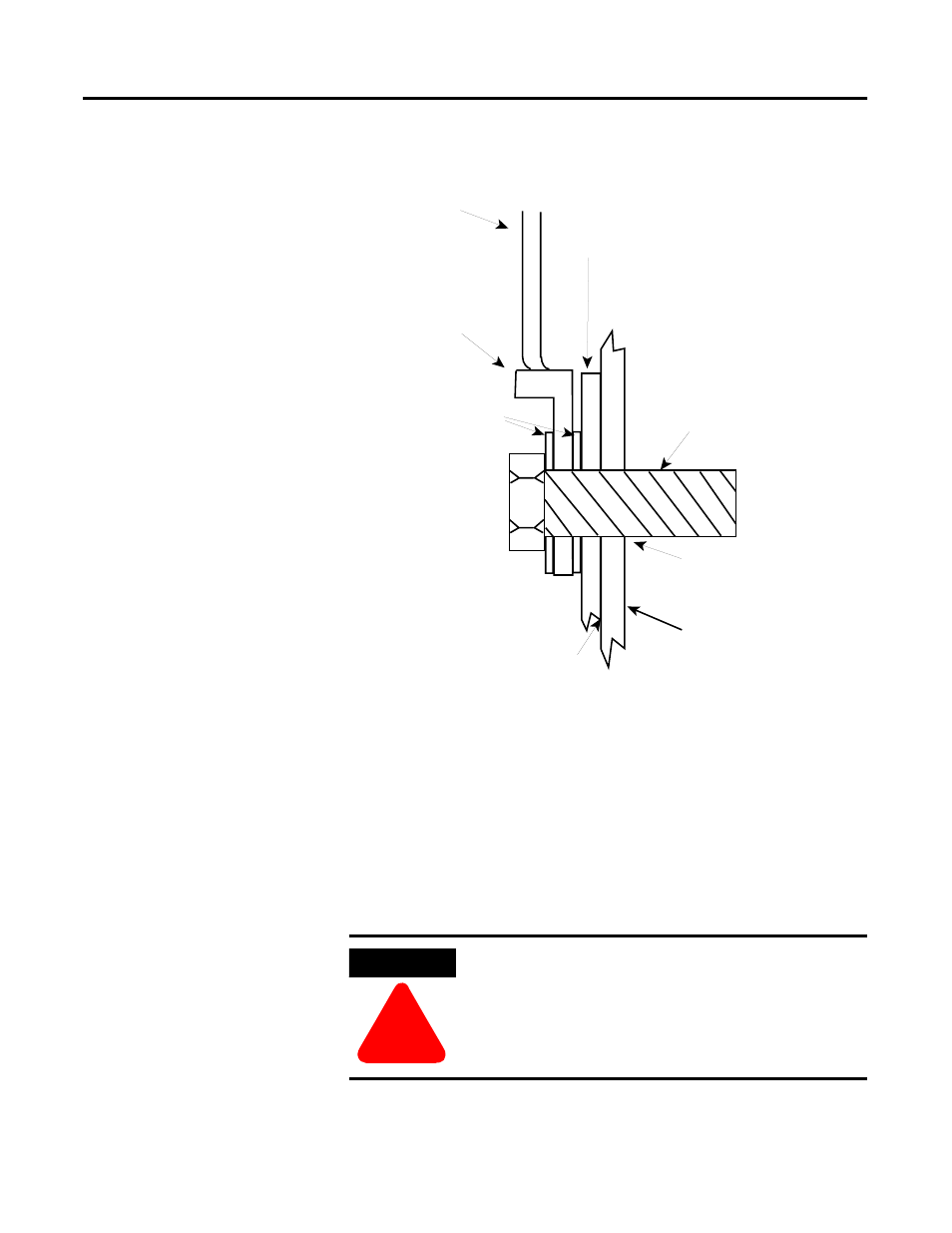

Figure 2 Mounting and Grounding Diagram
Mount the AEC next to a 1394 GMC system or an S Class Compact
motion controller on a metal enclosure panel using two 1/4 -20 or M6
bolts. Refer to the Mechanical Specifications in the Overview chapter
of this manual for mounting dimensions. Figures 3 and 4 in this
chapter show where to mount the AEC.
ATTENTION
!
To avoid a shock hazard, remove all power to the
system panel before mounting the AEC.
The 1394 contains stored energy devices. To avoid the
hazard of electrical shock, verify that all voltages are
zero (0.00) before proceeding.
#10 AWG to
Ground Bus
Ground
Lug
Internal Star Washers
AEC Mounting Tab
Size 1/4 - 20 or M6
Hardware
Tapped Hole
(Minimum of 3 Threads)
Metal Panel
(Must be connected to
earth ground.)
Scrape paint off panel to insure
electrical connection between
chassis and grounded metal plate.
