Rockwell Automation Publication 2100-IN060D-EN-P - March 2014 9
CENTERLINE 2100 Motor Control Center (MCC) Units with Horizontal Operating Handles
4. For ArcShield sections with 100 ms arc duration rating, replace the vertical
wireway baffle.

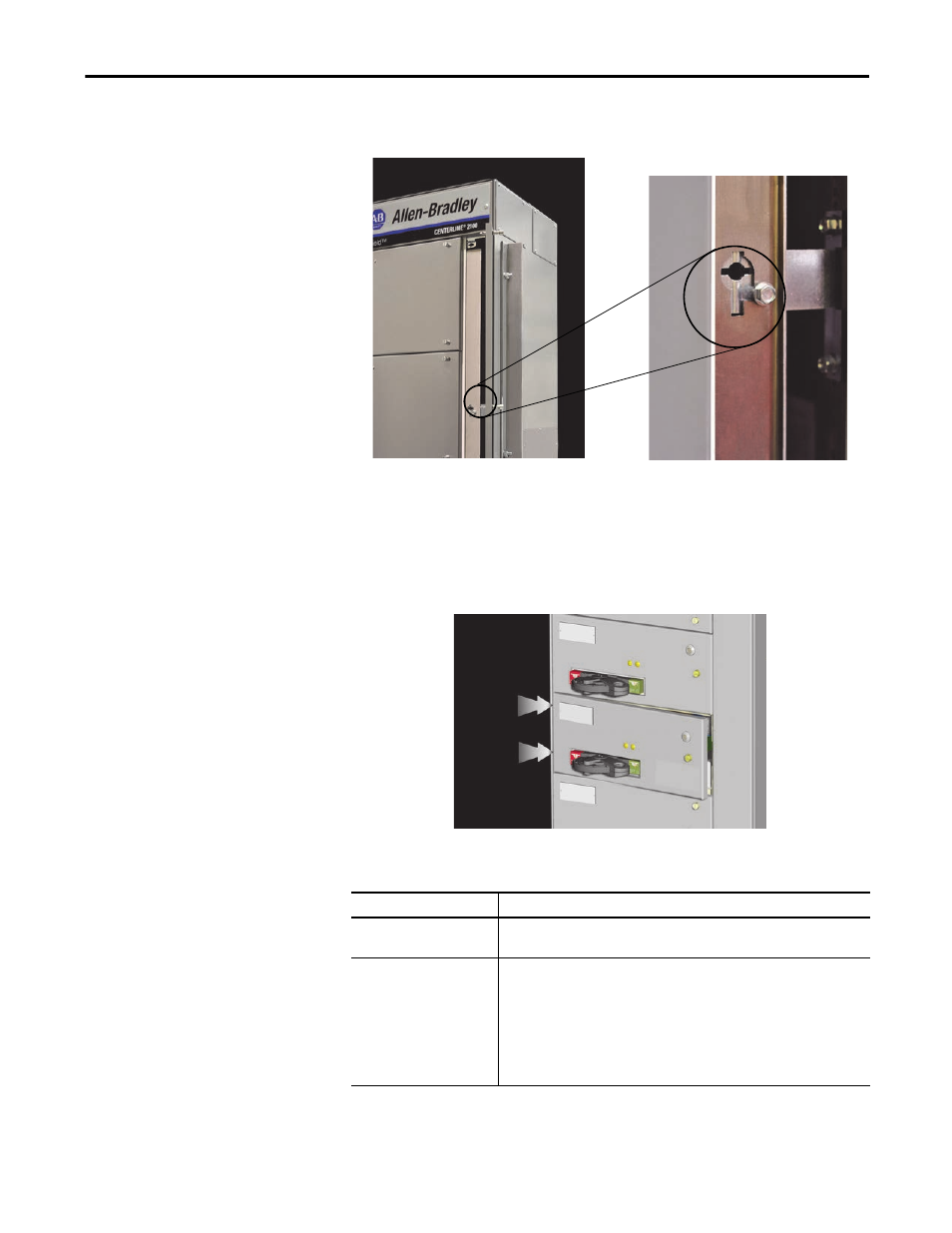

Install the Door Follow these procedures to install the door.
1. Position the door over the unit opening while holding the right side of the
door slightly toward you and push in the left side until it is flush with the
front of the structure.
2. Swing the door open and slide each hinge pin through the door and
structure hinges.
For Units With Follow This Step
A control station Slide the hinge pin through the tab on the control station wiring first, then into the
closest hinge.
ArcShield with 100 ms arc
duration rating Two hinges are required for each hinge leaf.
1. The upper hinge on each door must be removed from the structure to install/
remove the uppermost hinge pin.
2. Insert the hinge pin through the upper hinge, then through the hinge leaf and
lower hinge.
3. Install the upper hinge on the MCC structure with the ¼-20 self-tapping screw
provided and tighten to 55 lb•in (6 N•m) with a 3/8 in. socket wrench.
