10
Rockwell Automation Publication 2100-IN060D-EN-P - March 2014
CENTERLINE 2100 Motor Control Center (MCC) Units with Horizontal Operating Handles
3. If a control station is present, place it in the door cutout and tighten the
captive screws.
4. Rotate the movable portion of the swing-out latch bracket in the counter-
clockwise direction unit it stops, close the door, and secure the latch.
Refer to CENTERLINE 2100 Low Voltage Motor Control Centers
Instruction Manual, publication
, for additional information
on proper door latch orientations.

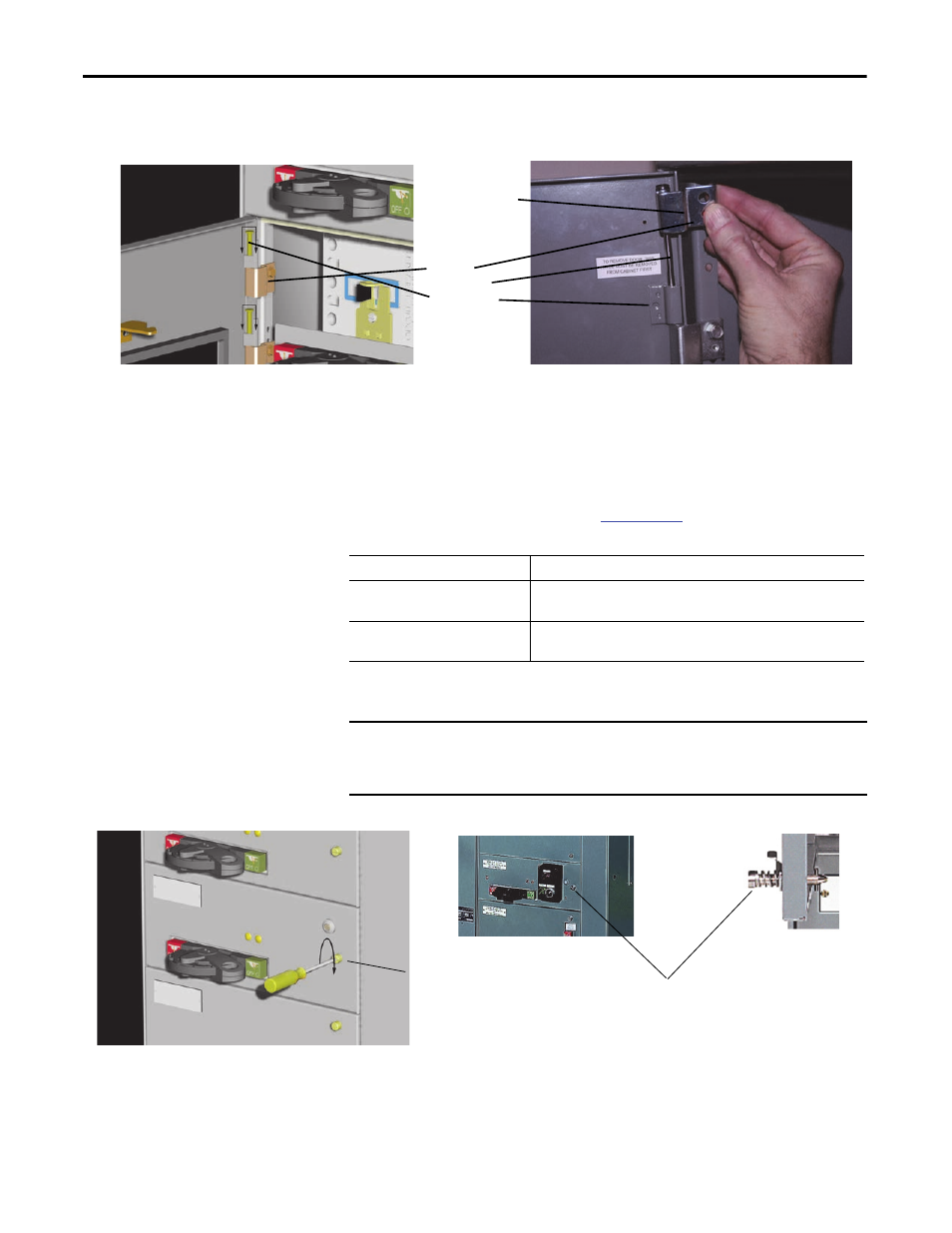

Only top hinge must
be removed to install
hinge pin.
Hinge
Hinge Pin
Hinge Leaf
Hinge for Standard Units and ArcShield Units with Device Limited Rating
Hinge for ArcShield Units with 100 ms Arc Duration Rating
For
Follow This Step
Non-arc resistant latches
Turn each door latch ¼ turn until it catches on the unit support pan or
structure and holds the door closed.
Units that are equipped with
arc-resistant door latches
Orient the slot of the latch so that it is horizontal, then push in the latch and
rotate ¼ turn.
TIP
Latches may require a flat-head screwdriver to open and close.
IMPORTANT
If this unit is installed in a series E...J section, it is necessary to install a longer
latch assembly to latch into the wireway opening. The latch is included in the
plug-in unit retrofit kit, catalog number 2100H-R1 or 2100H-R2.
Arc Resistant Latch
Latch
