14 VersaView 1200P Integrated Display Computers for Hazardous Locations
Publication 6183H-IN001E-EN-P - July 2007

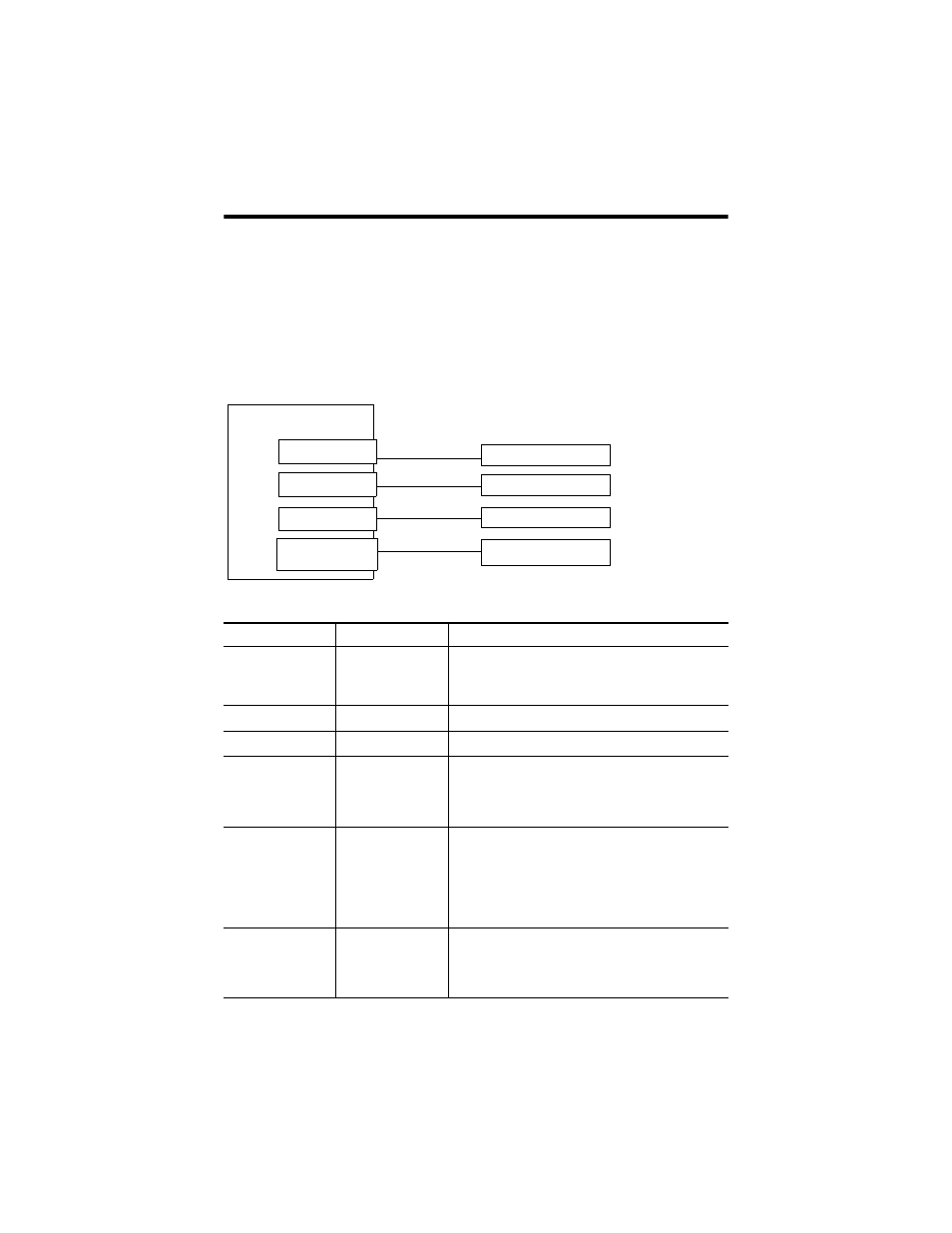

Control Drawing - Class I Division 2 and Zone 2
The following control drawing is provided in accordance with the National
Electrical Code, Article 500 (Class I, Division 2, Groups A, B, C, D and Class I,
Zone 2, Group IIC).
1200P Control Drawing for National Electrical Code
VersaView 1200P USB and PS2 Port Circuit Parameters
Parameter
Value
Parameter Definition
V
oc (USB)
V
oc (PS2)
5.25V dc
Open circuit voltage of each host USB or PS2 port.
I
sc (USB)
1.0 A
Maximum output current of each host USB port.
I
sc (PS2)
2.1 A
Maximum output current of the host PS2 port.
C
a (USB)
20 µF
This value is the maximum total capacitance that can be
connected to each USB port when used singly or together.
The total capacitance of each USB peripheral and its cable
must not exceed the indicated value.
C
a (PS2)
20 µF
This value is the maximum total capacitance that can be
connected to a single PS2 port when used alone, or the sum
of the total capacitance connected to both PS2 ports when
used simultaneously. If multiple PS2 peripheral devices are
used, the total capacitance of all devices and their cables
must not exceed the indicated value.
L
a (USB)
L
a (PS2)
3.11 µH
This value is the maximum total inductance that can be
connected to each USB and PS2 port. The total inductance
of each peripheral device and its cable must not exceed the
the indicated value.
VersaView 1200P Host Product
USB Port
PS2 Keyboard Port
PS2 Mouse
PS2 Keyboard
Associated Nonincendive
Field Wiring Apparatus
Nonincendive
Field Wiring Apparatus
USB Peripheral Device
USB Peripheral Device
USB Port
PS2 Mouse Port
