Rockwell Automation VersaView 1200P Integrated Display Computers for Hazardous Locations User Manual
Page 12
12 VersaView 1200P Integrated Display Computers for Hazardous Locations
Publication 6183H-IN001E-EN-P - July 2007

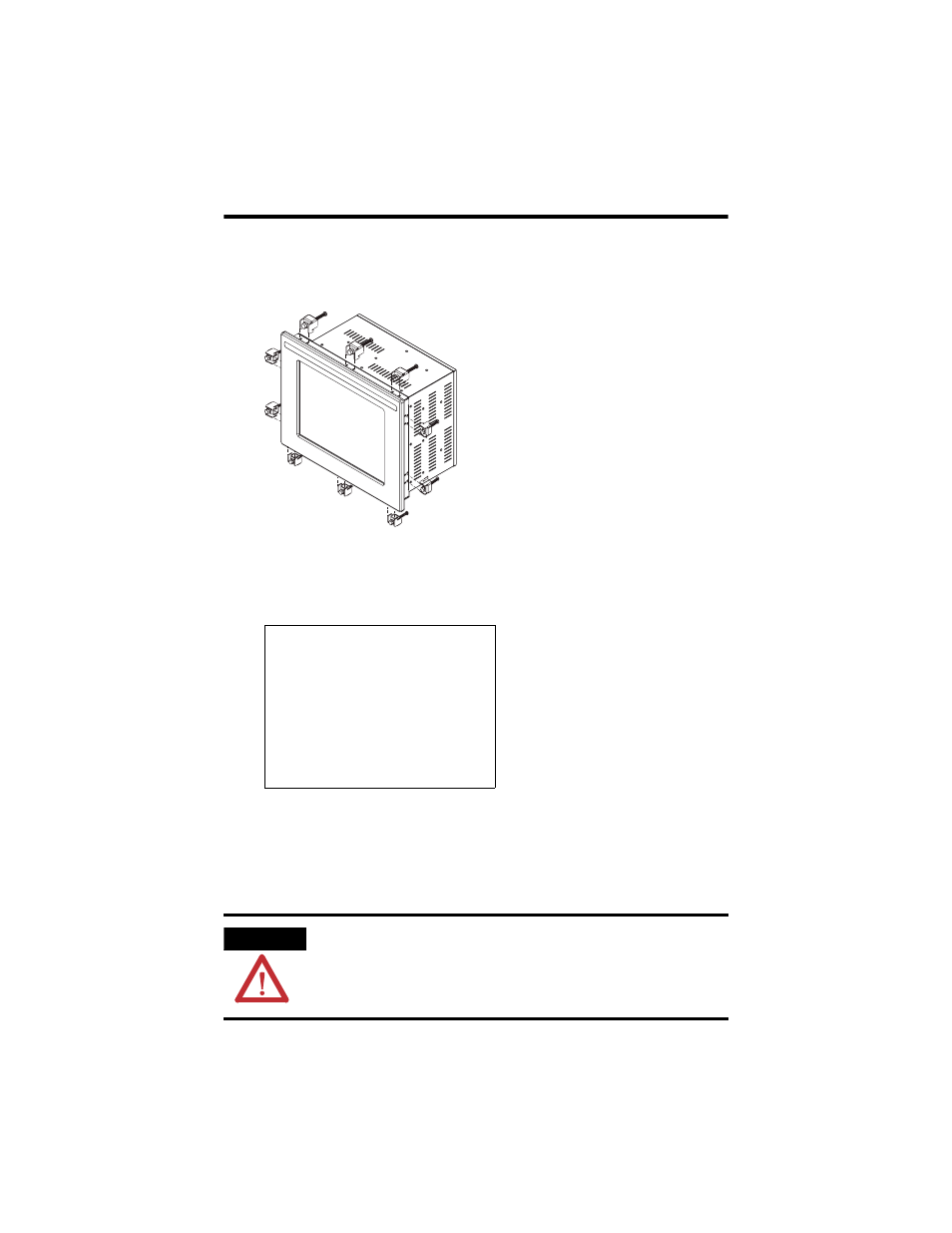

4. Install the mounting clips.
The mounting clips slide into the slots on the top, bottom and sides of the
computer.
5. Gradually tighten the clips one at a time around the bezel using the specified
sequence.
Note that the sequence begins with the center clips and continues to the
corner clips.
Repeat this process at least three times until the clips are hand-tight and the
gasket is compressed uniformly against the panel.
6. Tighten mounting clips to a torque of 1.1 Nm (10 lb-in) in the sequence
shown above. Do not over-tighten.
ATTENTION
Tighten mounting clips to a torque of 1.1 Nm (10 lb-in) to provide a proper
seal and prevent damage to the computer. Rockwell Automation assumes
no responsibility for water or chemical damage to the terminal or other
equipment within the enclosure because of improper installation.
1
10
9
2
7
8
5
4
3
6
Torque
Sequence
