Kinetix 6000M Integrated Drive-Motor Power Interface Module 9
Publication 2094-IN016A-EN-P - February 2012
Wiring
Interconnecting the IPIM Module and IDM Units

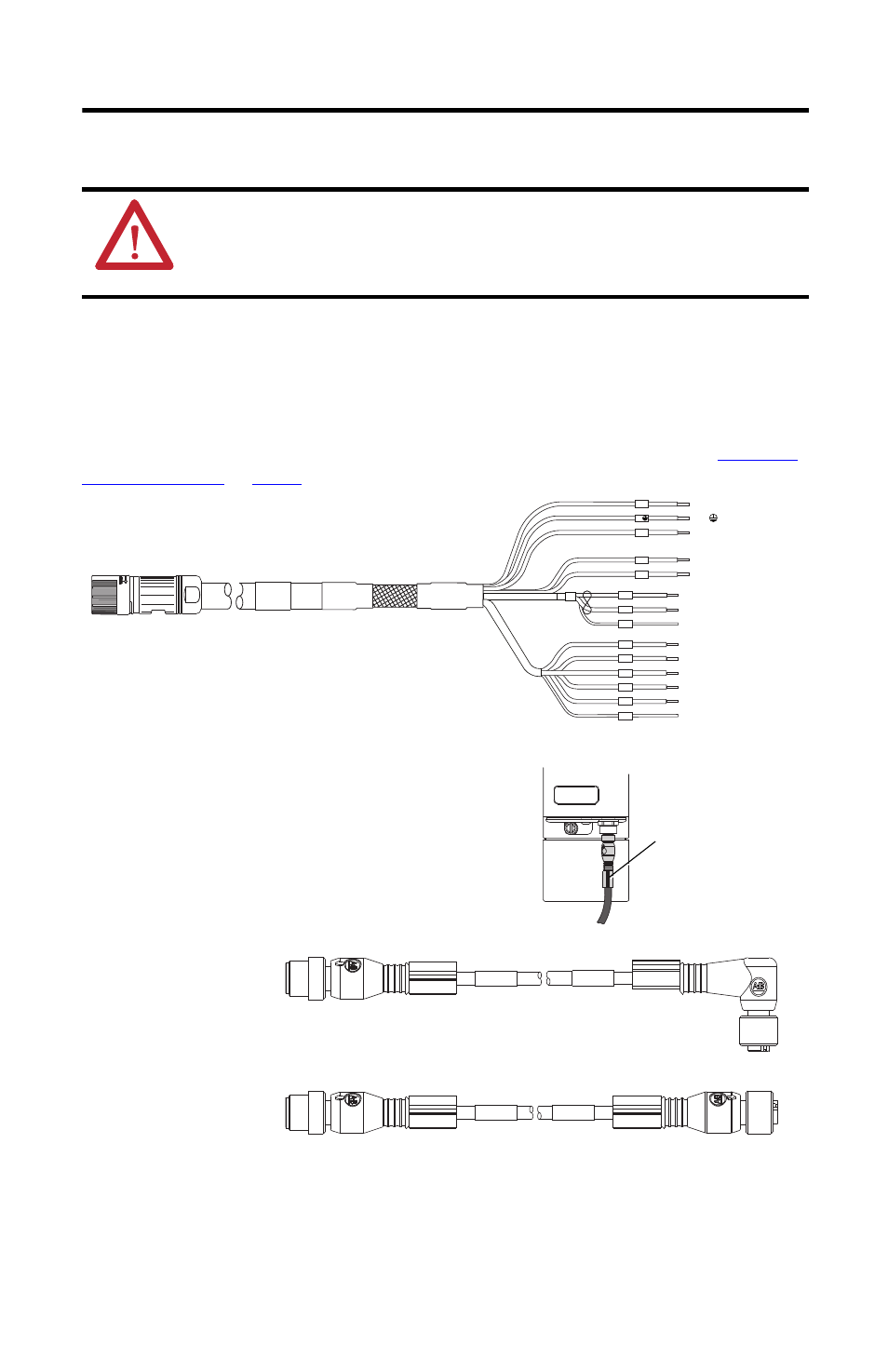

A hybrid cable, catalog number 2090-CHBIFS8-12AA
xx, transfers DC bus power and
inter-module communication signals from the IPIM module to the first IDM unit. Additional
IDM units are daisy chained by using a 2090-CHBP8S8-12AA
xx cable as shown in
.
The IDM system network is routed by using
2090-CNS
xPxS-AAxx cables. A 2090-CNSSPRS-AAxx
or 2090-CNSSPSS-AA
xx cable is required for connection
to the IPIM module.
When installing network cables, torque the connector plug to 0.8…1.2 N•m (7.1…10.6 lb•in) to
fully seat the contacts and secure the connection.
ATTENTION: To avoid personal injury and/or equipment damage, make sure that installation
complies with specifications regarding wire types, conductor sizes, branch circuit protection, and
disconnect devices. The National Electrical Code (NEC) and local codes outline provisions for safely
installing electrical equipment.
42- (white/blue)
42+ (blue)
CN- (blue)
CN+ (white)
SH2 (drain)
RTN (pink)
OUT (white/pink)
SE1 (orange)
SE2 (yellow)
SE- (violet)
SH3 (drain)
DC+ (brown)
PE (green)
DC- (grey)
DC+
DC-
42-
42+
SH3
OUT
CN-
CN+
SE1
SE2
SE-
SH2
RTN
PE
DC Bus
Co
ntro
l
Pow
er
Communic
ation
PORT 1
PORT 2
NETWORK
2090-CNSSPRS-AAxx or
2090-CNSSPSS-AAxx
2090-CNSSPRS-AAxx
2090-CNSSPSS-AAxx
