Feature and connector identification – Rockwell Automation 2094-SEPM-B24-S Kinetix 6000M IDM Power Interface Module User Manual
Page 8

8 Kinetix 6000M Integrated Drive-Motor Power Interface Module
Publication 2094-IN016A-EN-P - February 2012

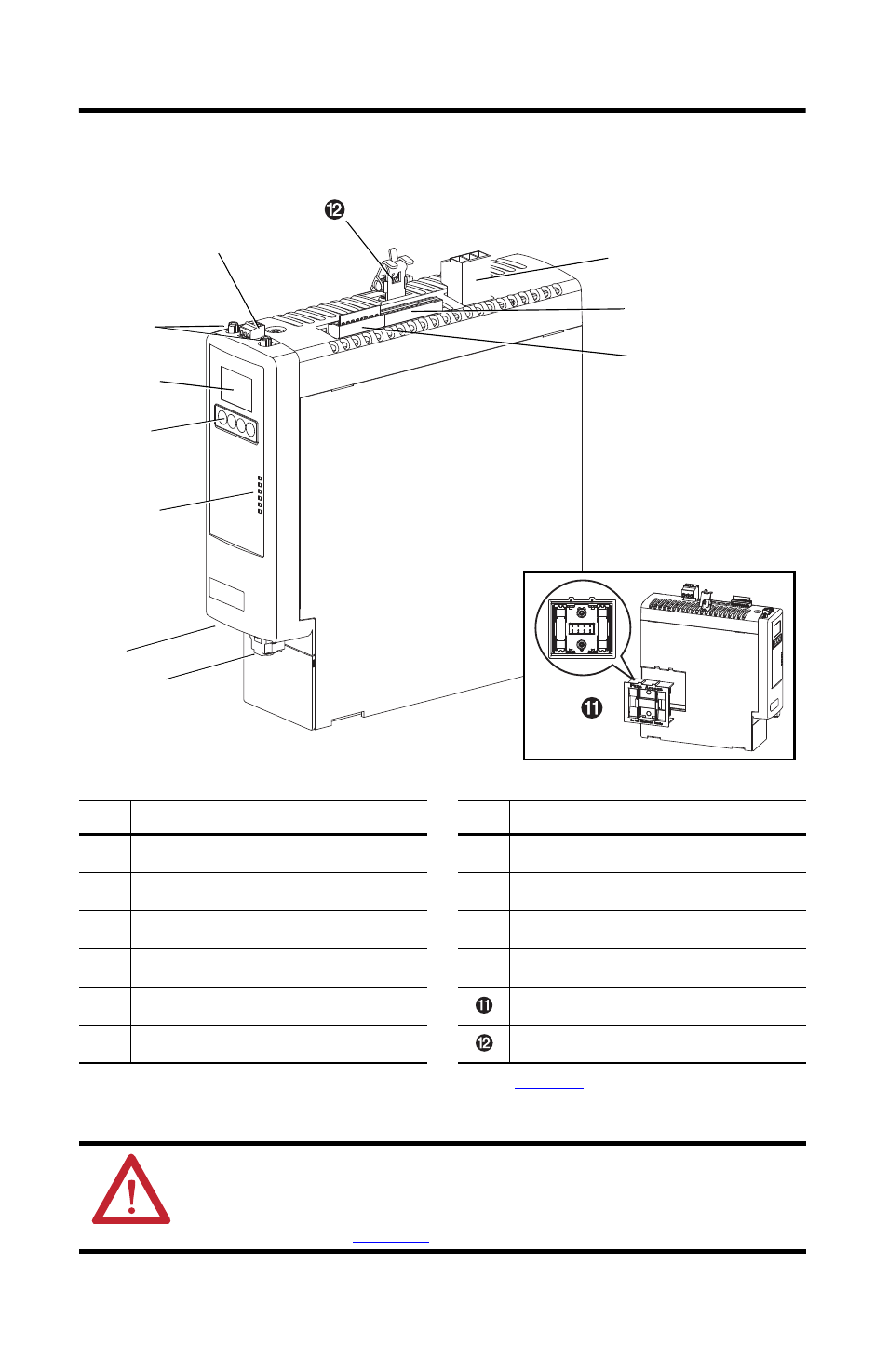

Feature and Connector Identification
Item
Description
Item
Description
➊
Hybrid cable DC bus connector
➐
Navigation buttons
➋
Hybrid cable communication signals connector
➑
Status indicators
(1)
(1)
Refer to the Kinetix 6000M Integrated Drive-Motor System User Manual, publication
2094-UM003,
for details.
➌
Safe-off connector
➒
EtherNet/IP ports
➍
Enable connector
➓
IDM network cable connector
➎
Sercos RX and TX fiber-optic connectors
Fuse holder
➏
LCD display
Hybrid cable shield clamp
ATTENTION: To avoid damage to the sercos RX and TX connectors, use only finger-tight torque
when attaching the fiber-optic cables to the modules. Do not use a wrench or any other
mechanical assistance. For more information, refer to Fiber-optic Cable Installation and Handling
Instructions, publ
.
SH1
42+
42-
SH2
CN-
CN+
OUT
RT
N
SH3
SE1
SE-
SE2
ETHERNET 1
ETHERNET 2
NETWORK
➋
➊
➌
➏
➍
➎
➒
➑
➐
➓
