Rockwell Automation 2711-K9A10_K9C10_T9A10_T9C10 DeviceNet Communications User Guide User Manual
Page 8

8
Publication 2711-6.0.4

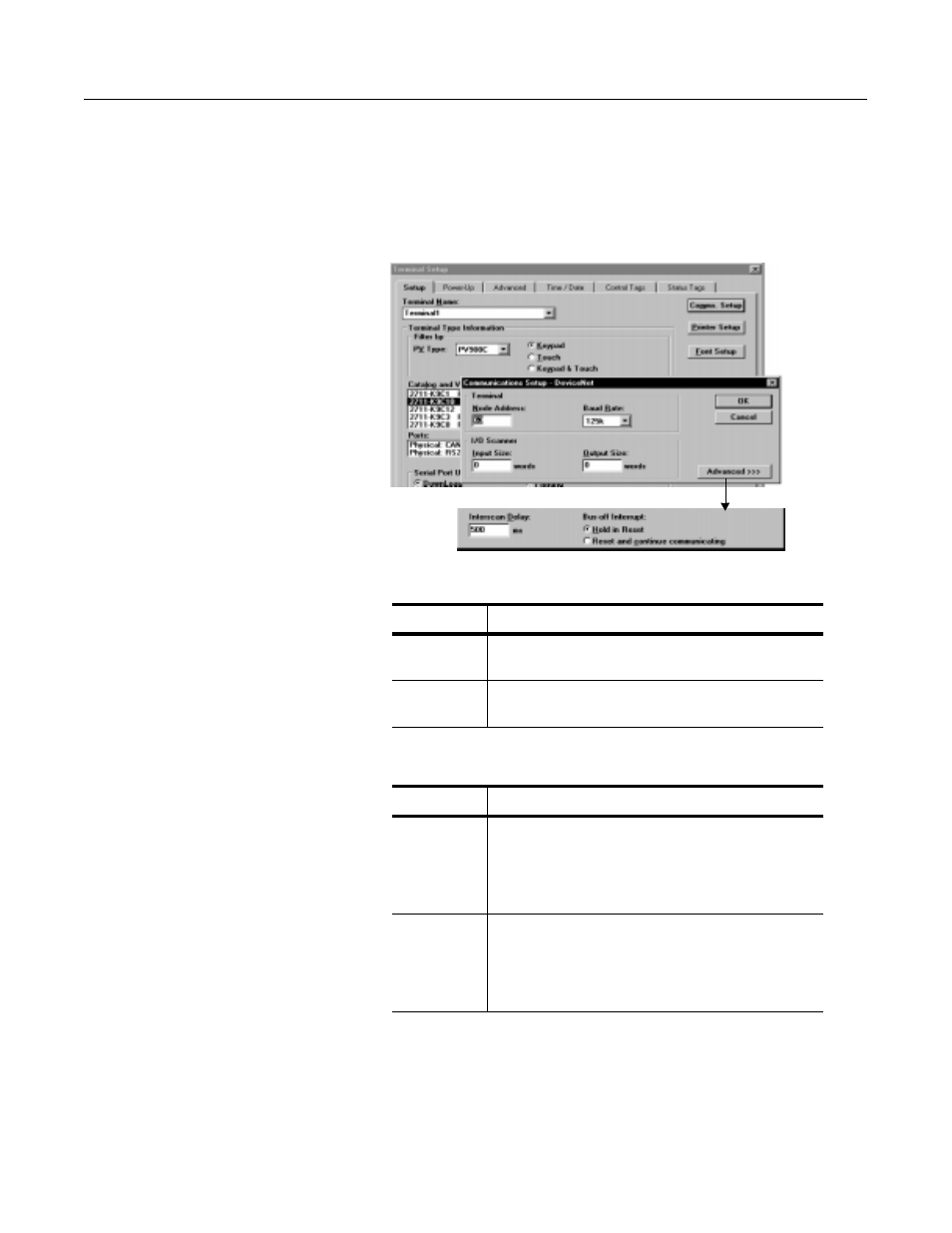

Configuring DeviceNet Communications
DeviceNet communication parameters are accessed from the
Terminal Setup dialog. To open the Terminal Setup dialog, select
Application>Terminal Setup.
1. Click the Comms. Setup button from the Terminal Setup dialog.
2. Under Terminal, edit the following parameters.
3. Under I/O Scanner, edit the following parameters:
Specify
To:
Node Address
Select the address (0 to 63) of the PanelView terminal on the
DeviceNet link.
Baud Rate
Select the baud rate of the DeviceNet link. The available baud
rates are 125 kbps, 250 kbps, 500 kbps.
Specify
To:
Input Size
Specify the number of words (0 to 64) that are sent to the
scanner from the PanelView with each I/O message. 0 is the
default value which indicates that no input I/O data exists in
the application. Size must match configuration in Master
device.
Output Size
Specify the number of words (0 to 64) that are received by
the PanelView from the scanner with each I/O message. 0 is
the default value which indicates that no output I/O data
exists in the application. Size must match configuration in
Master device.
