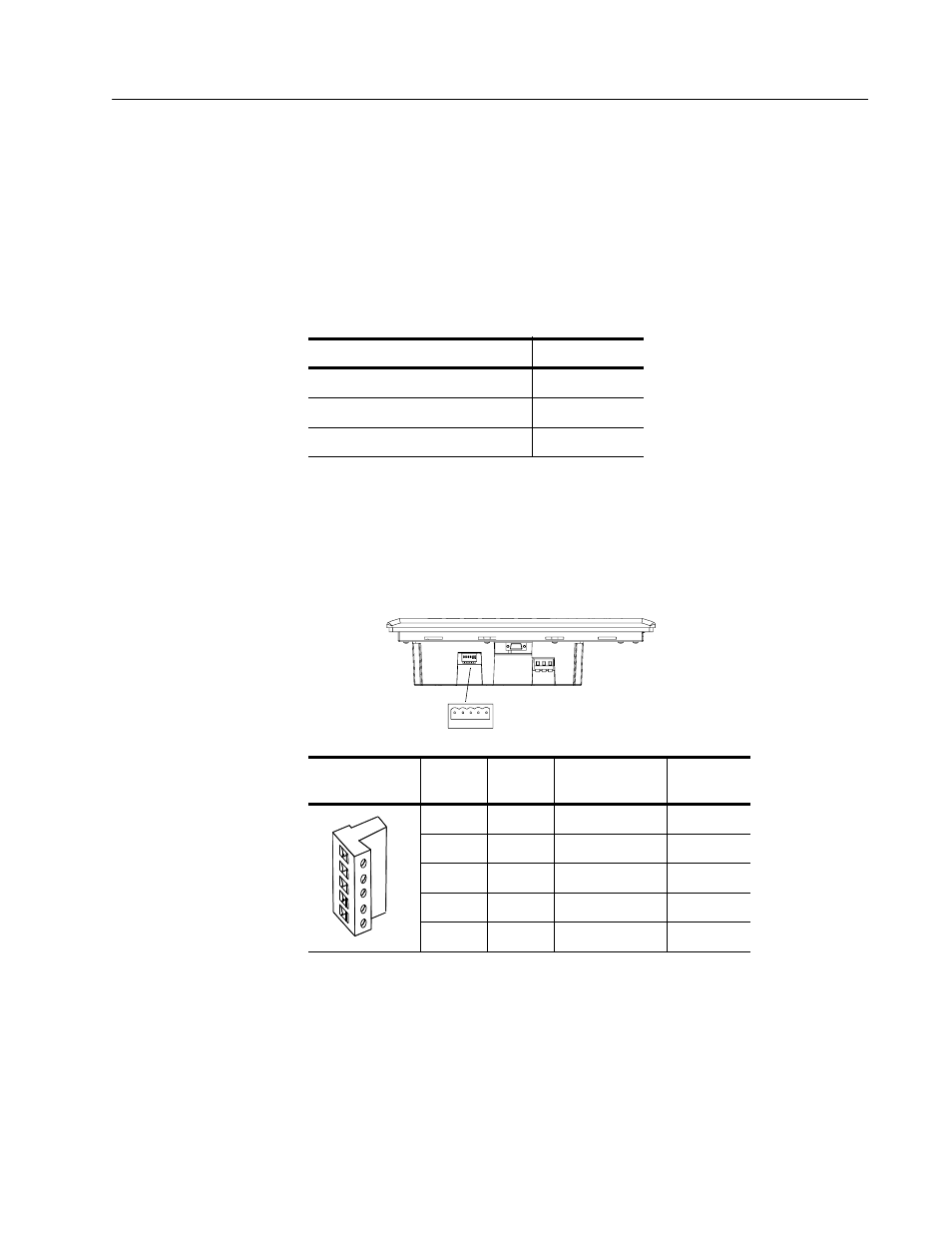

DeviceNet PanelView
Terminals
DeviceNet terminals have a 10 at the end of their catalog number, for example
2711-K9A10. DeviceNet terminals have
•
DeviceNet communications port
•
RS-232 port
Making DeviceNet Connections
Use one of the cables below to connect the DeviceNet version of the PanelView
terminal to a DeviceNet network.
Important: Refer to DeviceNet Cable System Planning and Installation manual
(Publication 1485-6.7.1) for network layout and design information.
DeviceNet Connector
The DeviceNet connector is identified by the label on the PanelView terminal.
The typical DeviceNet current draw is 90 mA at 24V per terminal.
Cable
Catalog No.
DeviceNet Cable, 50 meters (164 feet)
1485C-P1A50
DeviceNet Cable, 100 meters (328 feet)
1485C-P1A150
DeviceNet Cable, 150 meters (492 feet)
1485C-P1A300
DeviceNet
Terminal Block
Terminal
Signal
Function
Color
1
COM
Common
Black
2
CAN_L
Signal Low
Blue
3
SHIELD
Shield
Uninsulated
4
CAN_H
Signal High
White
5
VDC+
Power Supply
Red
1
5
DeviceNet Port
PanelView 900 shown
1
5
