Application, Log general information, Rename projects – Rockwell Automation 8520-OM Offline Development System User Manual User Manual
Page 33: Create new projects, Delete projects, Select existing projects, Back up projects to floppy disk, Copy projects
3--9
Getting Started with ODS
Publication 8520--UM051A--EN--P --July 2000
Offline Development Manual (ODS) Software User Manual

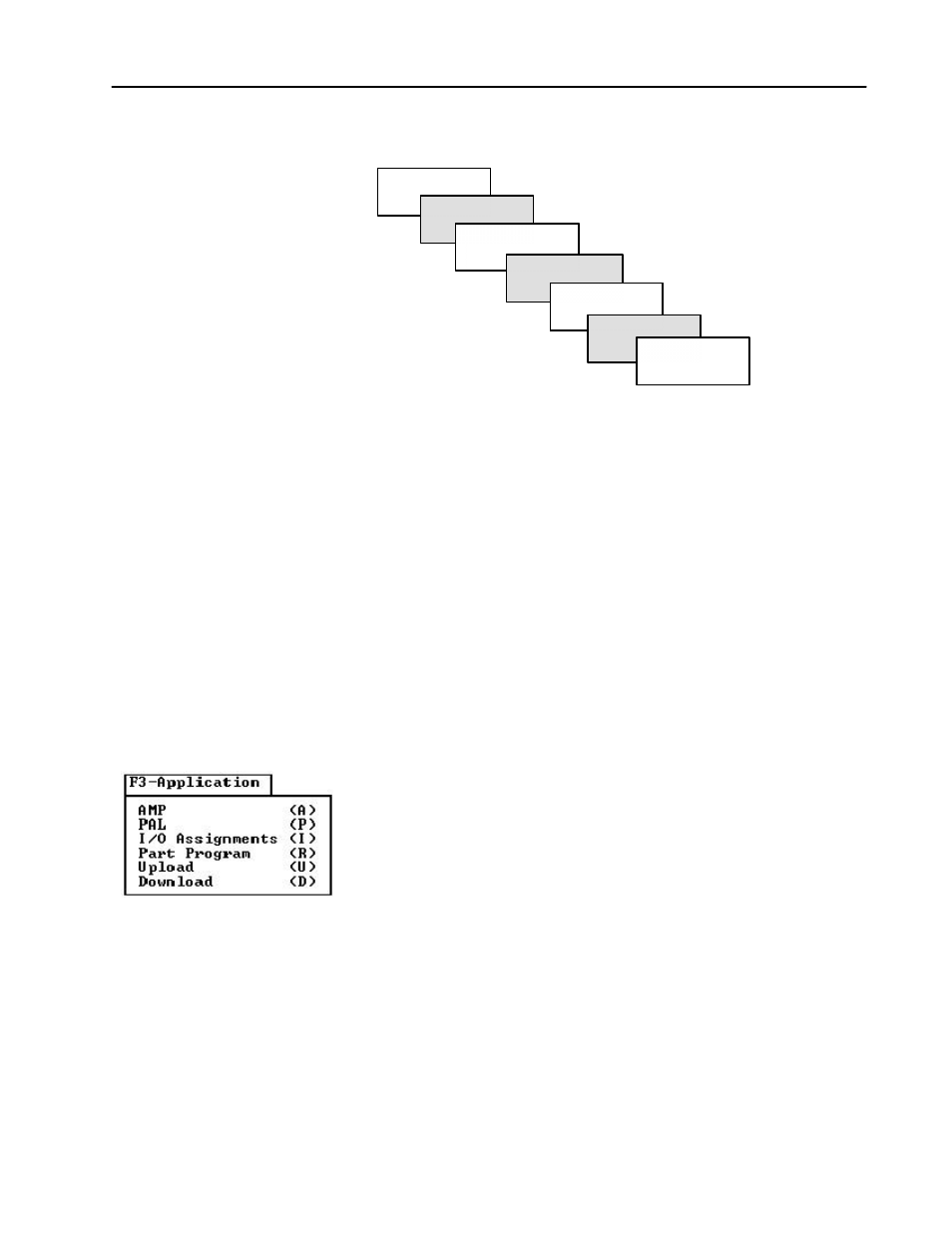

Figure 3.2
Project Organization
PROJECT
DIRECTORY
NAME
PROJECT
TYPE
CONTOL
FIRMWARE
CONTROL
REVISION
NAME
INTEGRATORS
IDATE
AND
DESCRIPTION
COMMENTS
MODE
COMMUNICATION
You can create a project directory for each motion
controller/machine system. This lets you use ODS on many different
motion controller and machine applications.
The F2-Project pulldown menu is used to manage project directories.
You can:
•
log general information
•
rename projects
•
create new projects
•
delete projects
•
select existing projects
•
back up projects to floppy disk
•
copy projects
•
restore projects from floppy disk
Chapter 5 describes the functions of the F2-Project menu.
Application
Use the F3-Application pulldown menu to select the application that
you need for your project (as shown in Figure 3.3 using a 9/Series
ODS package).
