Rod or pipe rollers – Rockwell Automation 7000 PowerFlex Medium Voltage Air-Cooled (B Frame) Trans.& Handling - ForGe User Manual
Page 21

Rockwell Automation Publication 7000-IN008C-EN-P - April 2013
21
Transportation and Handling Procedures Chapter 2
Rigging equipment must accommodate uneven weight distribution within the
drive (
).

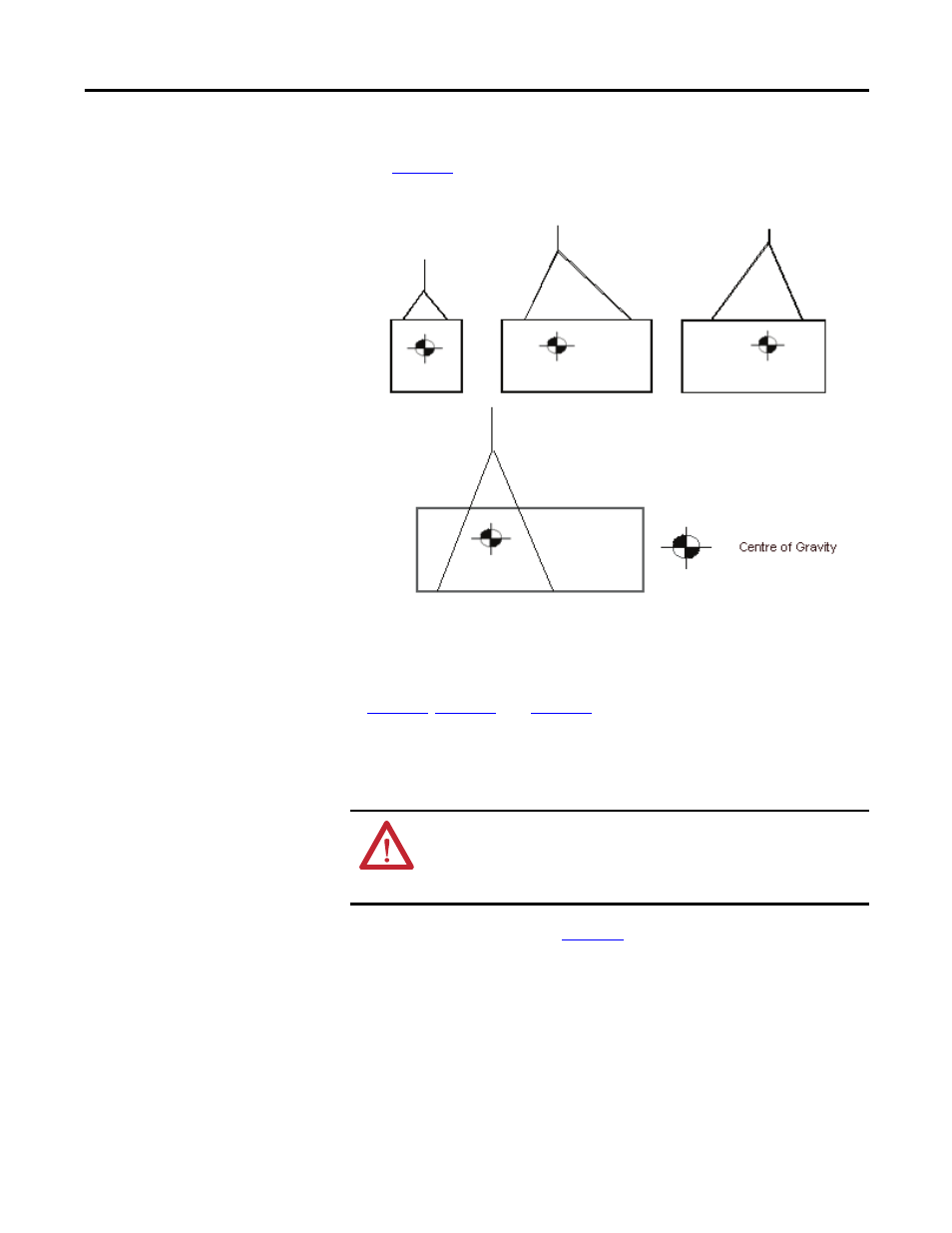

Figure 14 - Adjustment of rigging length
When vertical space is limited, you may need to fabricate a spreader lifting beam.
Adjustment is necessary to accommodate unequal weight distribution as shown
in
,
Figure 13
, and
.
Rod or Pipe Rollers
Use this method only when moving the drive on one floor level with no inclines.
1. Use boards or steel plates (
2. Carefully ease the shipping skid over the roller pipes until the entire drive
weight rests on the roller pipes.
WARNING: Take care when using either a forklift or the pipe rolling technique
for positioning purposes, to ensure that the drive is not scratched, dented, or
damaged. Stabilize the drive during handling to guard against tipping and
injury to personnel.
