14

Rockwell Automation Publication 7000-IN008C-EN-P - April 2013

Chapter 2 Transportation and Handling Procedures

Export Crate

If the drive ships in an export crate (see

Figure 6

), the top lifting angles may be

inside the crate. Cables are outside of the crate for pulling the crate out of the
container. Not all export crates appears exactly as shown. Refer to instructions
supplied with the crate.

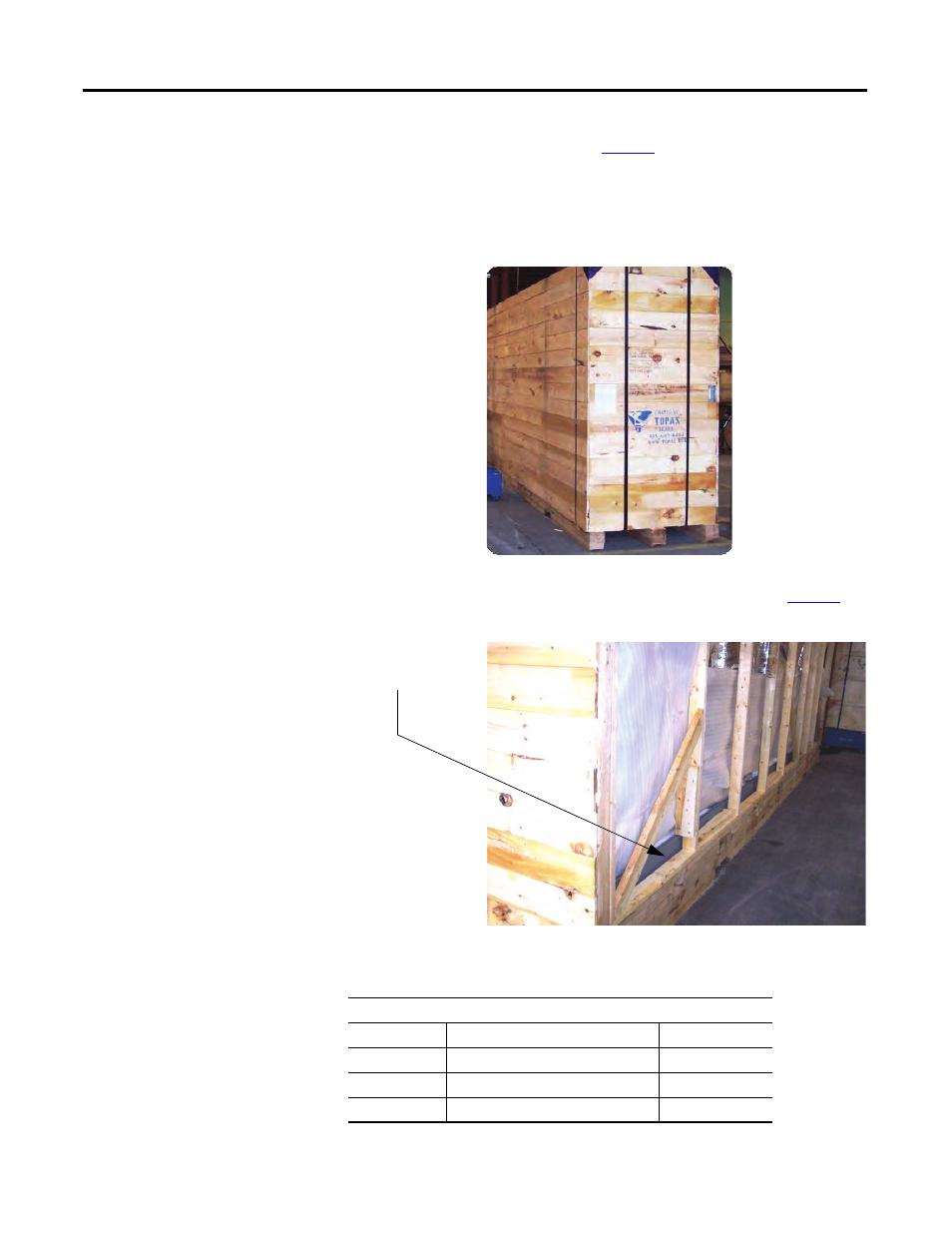

Figure 6 - Export Crating

Locate the pair of lifting angles (if included) inside the export crate (

Figure 7

).

Figure 7 - Location of lifting angles in export crate

Handle the lifting angles with care. Most versions are very heavy (refer to the
following table for dimensions and weights).

Pair of Lifting Angles
(2) and Hardware

Examples of Various Dimensions and Weights of Lifting Angles

Length each

Dimensions

Weight each

3 m (9.8 ft.)

63 x 50 x 10 mm (2.5 x 2 x 0.375 in.)

13 kg (30 lbs)

7 m (23 ft.)

125 x 75 x 10 mm (5 x 3 x 0.375 in.)

105 kg (230 lbs)

7 m (23 ft.)

175 x 100 x 10 mm (7 x 4 x 0.375 in.)

140 kg (308 lbs)
