Page 46

Transferring S Record Files
Chapter 7
7–6
This section shows how to transfer DL20 memory contents to an S Record
file on your personal computer. The S Record file is created during
the transfer.
Option 1 - Read DL-20 Memory to Disk File serves the same purpose as the
DL20’s tape read function with a Catalog No. 1770-SB Data Recorder. This
option is easier to use because the program handles all communication with
the DL20 and you do not need to respond to any of the DL20 prompts.
Before starting the upload, make sure your personal computer is connected to
the DL20 Display as described on page 7–2.
To upload DL20 memory to your computer:

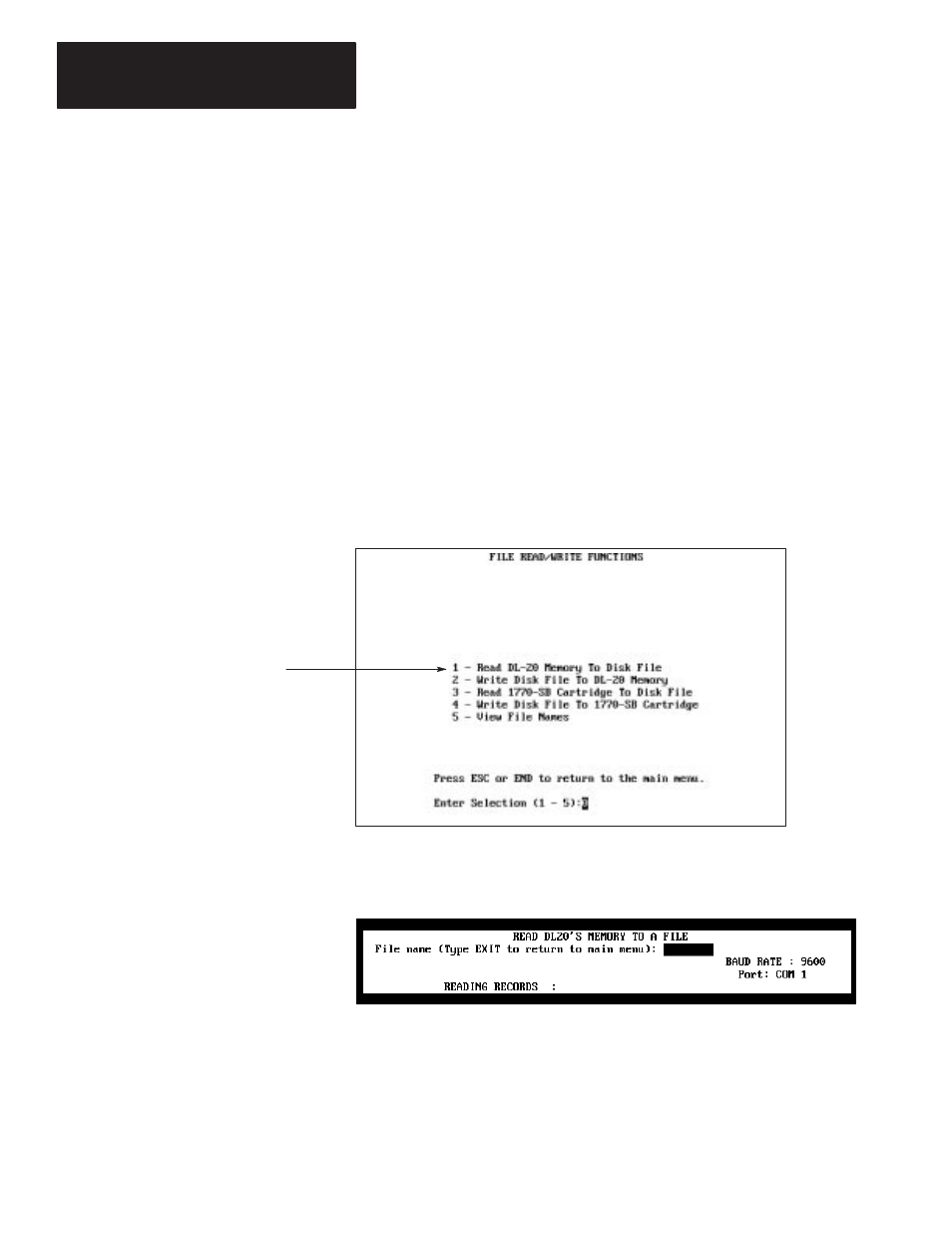

1. Select option 8 - S Record/Message File Upload (Read)/Download
(Write) from the Main Menu.
The File Read/Write Functions submenu appears.
2. Select option 1 - Read DL-20 Memory to Disk File.
The following screen appears.
Uploading DL20 Memory
to Personal Computer
