PanelView 1400 Terminals
7
Installing Terminal in a Panel
This section provides procedures for mounting a PV1400 using:
•
mounting clips (10 shipped with terminal, 10 required)
•
mounting studs (ordered separately, Catalog No. 2711-NP3)
!
ATTENTION:
Disconnect all electrical power from the panel
before making the cutout.
Make sure the area around the panel cutout is clear.
Take precautions so that metal cuttings do not enter any
components that may already be installed in panel.
Failure to follow this warning may result in personal injury or
damage to the panel components.
To install the PV1400 terminal in a panel using clips:
1. Cut an opening in the panel using the panel cutout provided with the
terminal. Remove any sharp edges or burrs. Do not drill the mounting stud
holes if you are using clips.
2. Make sure the terminal sealing gasket is properly positioned on the terminal
as shown in Figure 5. This gasket forms a compression type seal. Do not use
sealing compounds.

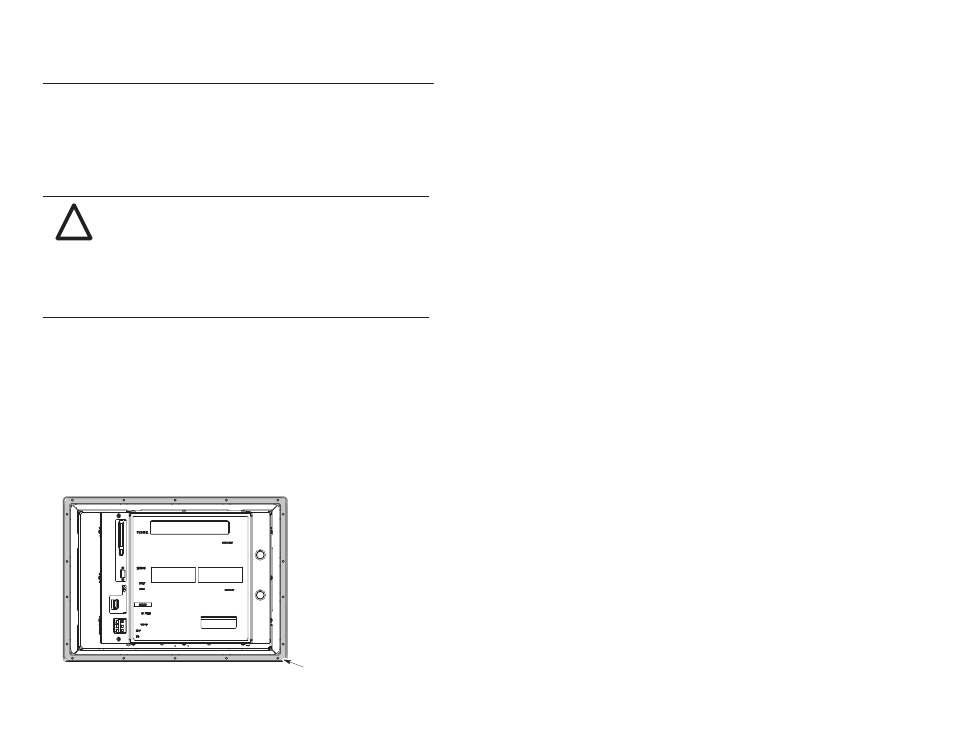

Figure 5
Sealing Gasket
Sealing Gasket
