4 Zone Control I/O Cards
Publication 1799-IN007D-EN-P - October 2005

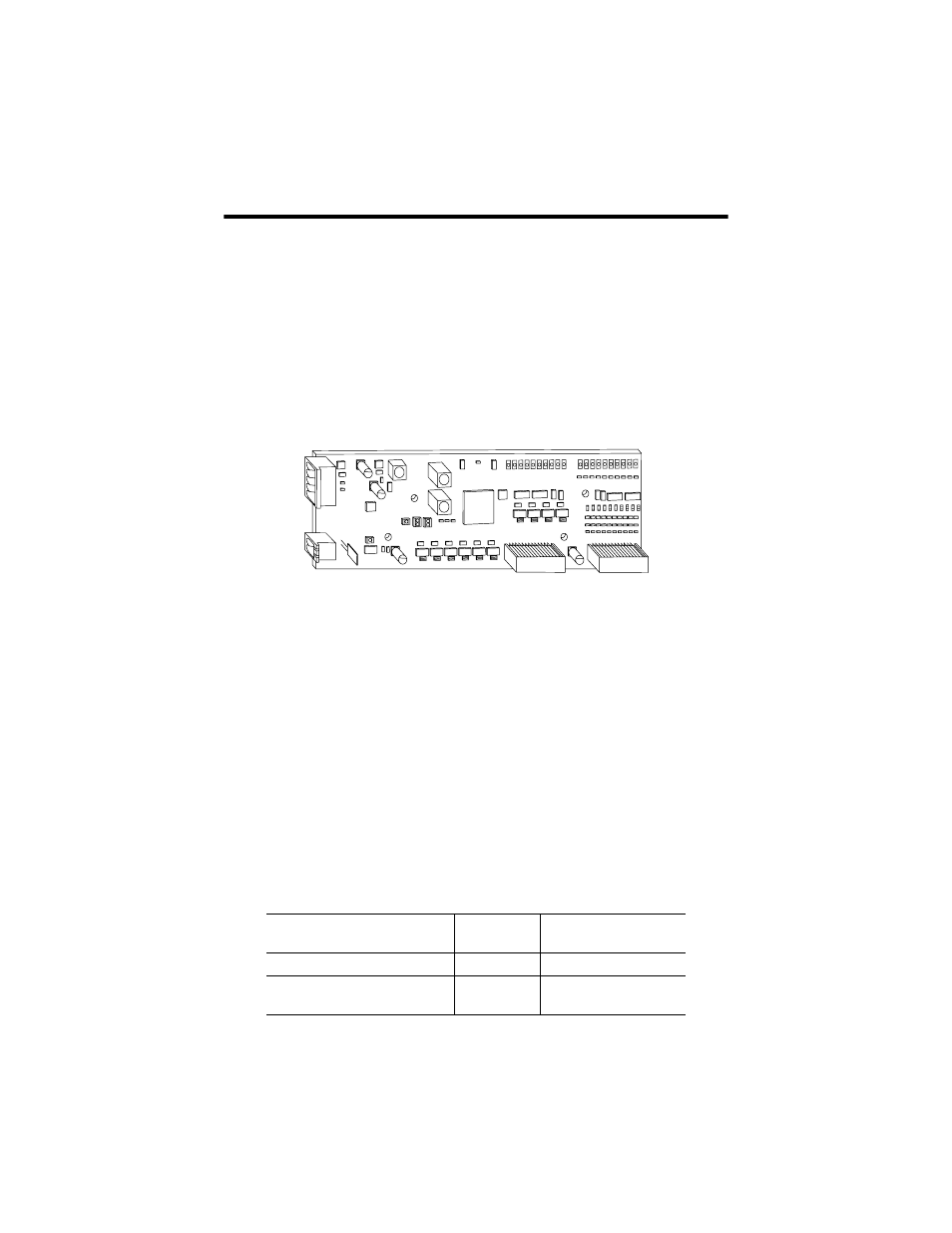

About the Cards
The 1799 Zone Control I/O cards are 20-point I/O cards that communicate via the
DeviceNet network. These cards are intended for material handling and other applications.
The cards also have Zone Interlocking Protocol (ZIP) capability, which lets the cards
communicate directly with each other without hard wiring them together and using a scanner.
These cards have 10 inputs and 10 outputs. Inputs are 24V dc sourcing (PNP) or sinking
(NPN). Outputs are self-protected 24V dc sourcing (1799-ZCIOB and -D10U10BZC) or
sinking (1799-ZCIOV and -D10U10VZC).
Parts List
Your package contains:
• One 1799 Zone Control card
• DeviceNet connector
• Auxiliary power connector
• Mounting plate and four mounting screws
• These installation instructions
Optional Hardware
All mating connectors and mounting hardware must be ordered separately. The following
table identifies the different connector and hardware options.
Option Catalog
Number Third Party Supplier &
Part Number
2 DIN rail brackets (4 screws) 1799-BRKD N/A
2, 12-position, gold-plated I/O mating
connectors 1799-12SPCON Phoenix - FK-MC
0.5/12-ST-2.5AU - 1923432
43040
