6. Use a chain (not supplied) to hang the signs from the ceiling,
following the notes in Step 4 of Ceiling Mounting instructions on
page 9.
Back-to-Back Mounting
1. Attach a mounting bracket on each end of the signs and replace
the end caps, following Steps 1 to 4 of the Wall mounting
instructions. However, replace only the bottom three screws for
each end cap. Torque the screws to 2.7 Nm (24 in-lb). Do this
step for each end of both signs.
2. Attach ceiling mounting brackets to all the end caps following
Step 2 of the ceiling mounting instructions. Torque the screws to
2.7 Nm (24 in-lb).
3. Match the signs together back-to-back. Connect them together
following Steps 7 through 10 of the Wall Mounting instructions on
page 7.
TIP
Remove only one end cap at a time for each sign.
TIP
Do NOT fasten the top screws to the end caps. The
top screws will be used to fasten the ceiling
mounting brackets to the end caps in the next step.

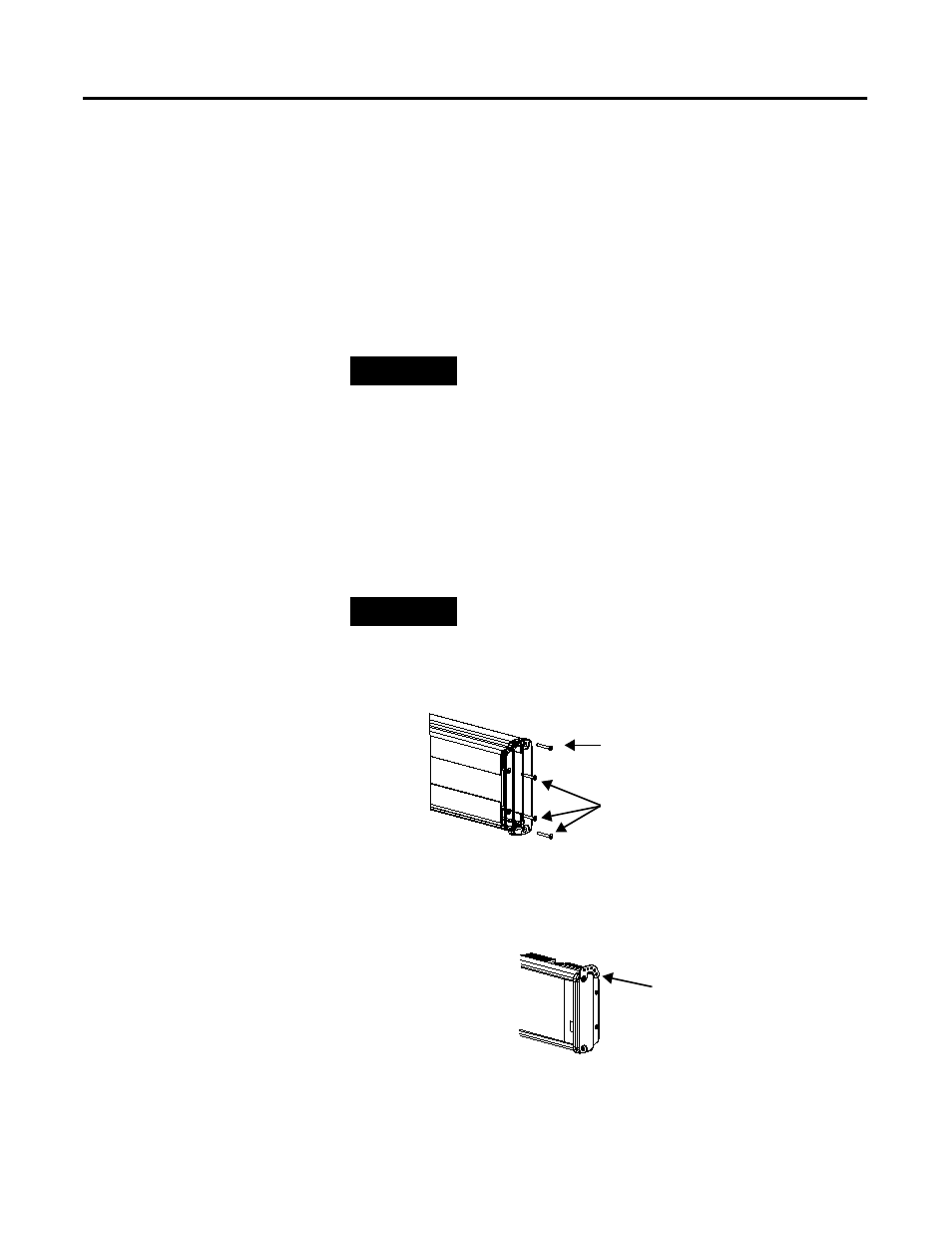

Fasten these three screws to each end cap.
Do NOT fasten this screw to the end cap.
Ceiling
mounting
bracket
