16 ArmorPoint I/O Modules with 8 Configurable 24V DC Points and DeviceLogix
Publication
1738-IN027B-EN-E - February 2010

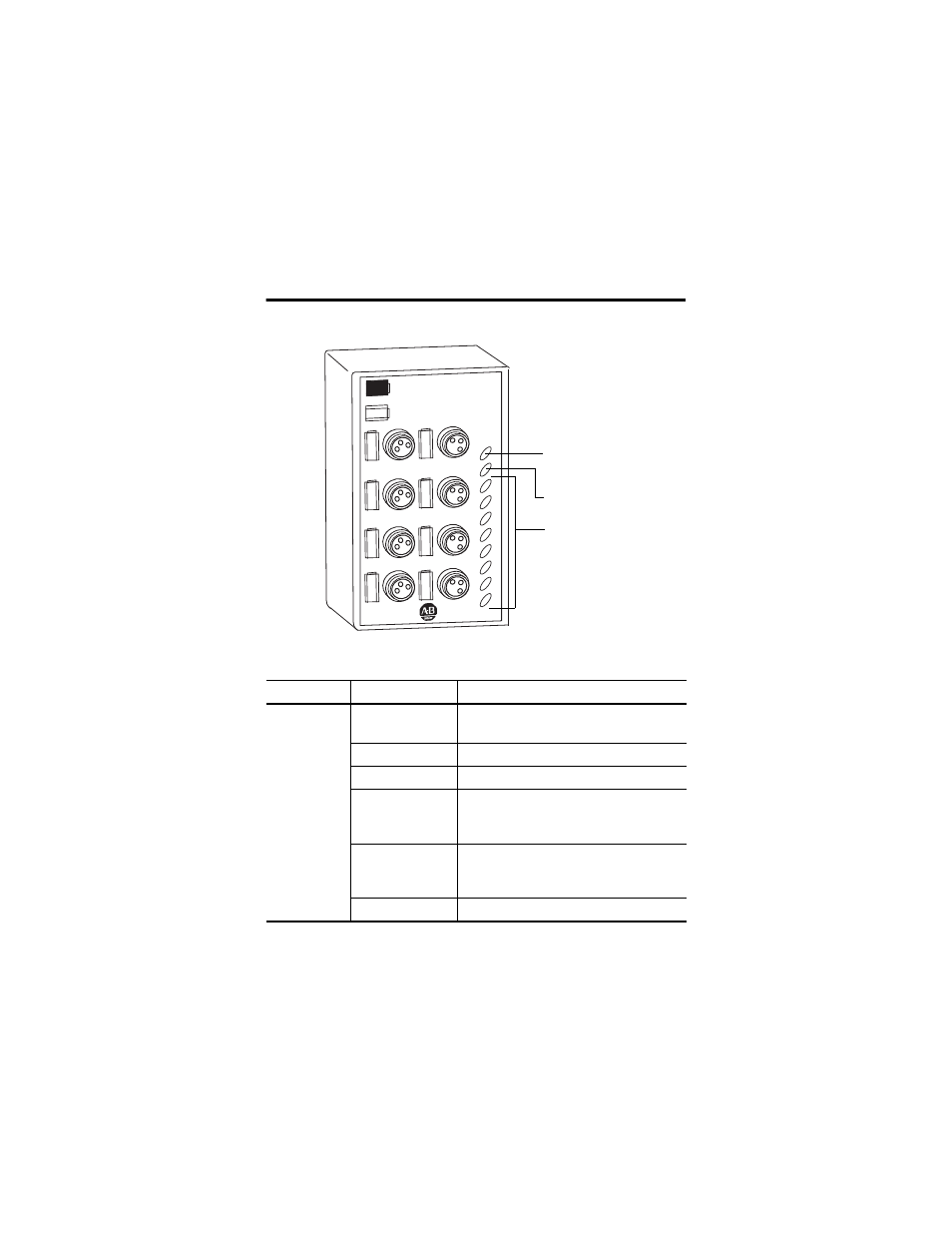

Interpret the Status Indicators
1738-8CFGDLXM8, 1738-8CFGDLXM12, 1738-8CFGDLXM23 Indicator Status
Status
Description
Mod/Net status
Off
No power applied to device or device is auto
bauding.
Green
Device operating normally.
Flashing green
Device is online but not connected.
Red
Unrecoverable fault
Communication failure – duplicate node
address present or incorrect baud rate.
Flashing red
Recoverable fault – module configuration error
I/O connection fault – one or more I/O
connections in timed-out state.
Flashing red/green
Device is in self-test.
MOD
NET
1738-8CFGDLXM8
24V DC
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
Module / Network
Status Indicator
44931
DeviceLogix Status Indicator
I/O Status Indicators
1738-8CFGDLXM8 shown
