Chapter 8
Application Examples
8–7

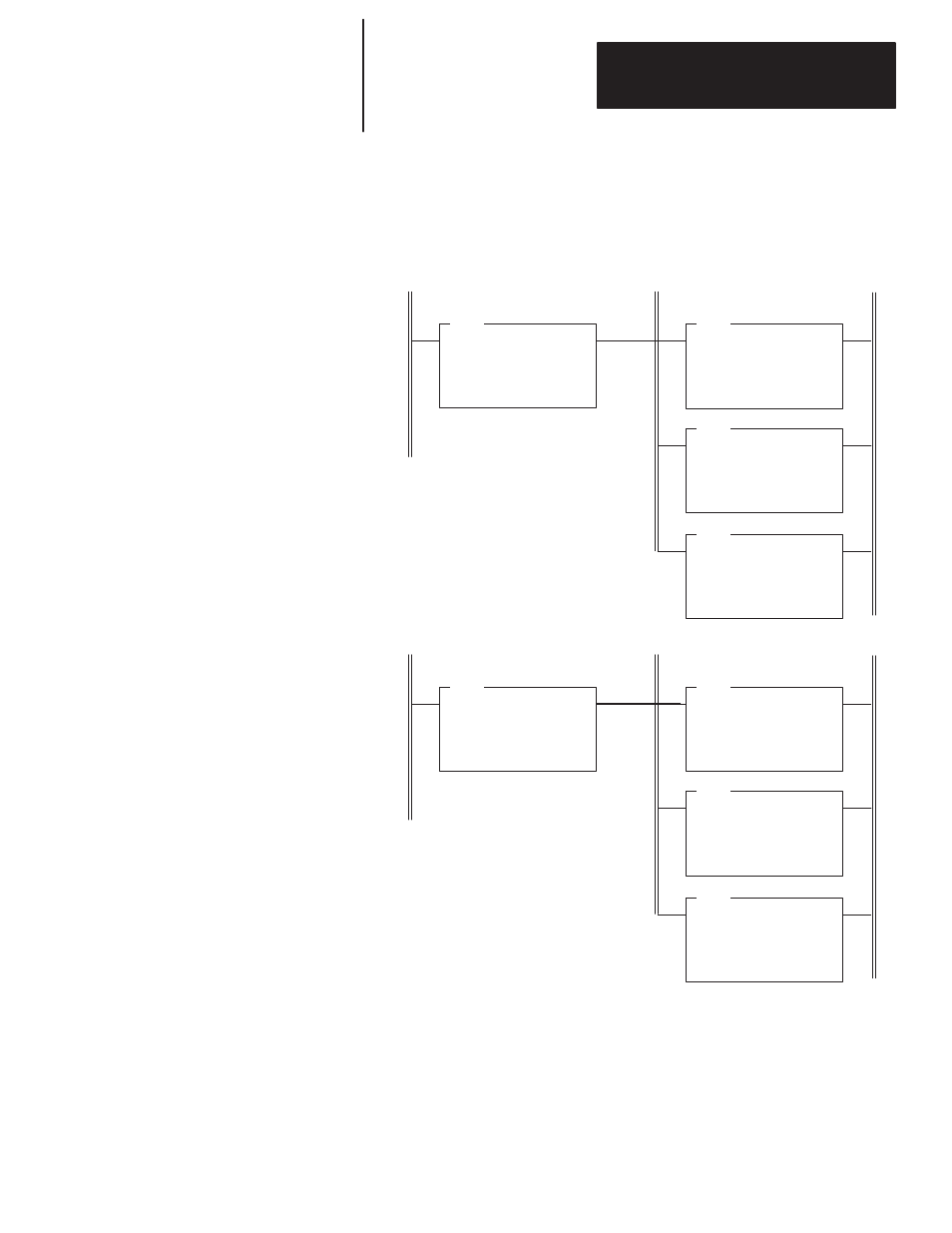

RUNG
2.2
EQU
EQUAL
Source A
C5:0.ACC
0
Source B 2
MOV
MOVE
Source
C5:0.ACC
0
Dest 0:1.1
0
COP
COPY FILE
Source
#I:2.0
Dest #0:1.2
Length 4
MOV
MOVE
Source
C5:0.ACC
0
Dest 0:1.6
0
Module Number Monitored = 2
For rungs 2.2 through 2.5 the module number being monitored is shown above each example. For each
rung, when SOURCE A = C5:0.ACC equals the value in SOURCE B = MODULE #, the rung moves the
module number to word 1 of the DCM output file. This verifies the start of the data and the module
number it’s coming from. Then it copies the four words of analog data to the DCM output words 2
through 5, followed by the module number at word 6 to indicate the end of data.
RUNG
2.3
EQU
EQUAL
Source A
C5:0.ACC
0
Source B 3
MOV
MOVE
Source
C5:0.ACC
0
Dest 0:1.1
0
COP
COPY FILE
Source
#I:3.0
Dest #0:1.2
Length 4
MOV
MOVE
Source
C5:0.ACC
0
Dest 0:1.6
0
Module Number Monitored = 3
