6 POINTBlock dc 8 Input/8 Relay Output Module
Publication 1734-IN021C-EN-P - September 2006
About the Module
This 1734D input/output module is a DIN-rail mounted device with
an integrated DeviceNet communication interface, 8 inputs, 8 relay
outputs, removable terminations, and a POINTBus expansion port.
Use the expansion port to add a maximum of 12 additional POINT
I/O modules.
The module includes a non-isolated DeviceNet communication
interface. The 24V dc from the DeviceNet connection powers a
non-isolated dc/dc converter that generates +5V dc that powers the
POINTBlock electronics and connects to the POINTBus port to power
the expansion I/O electronics.
The 1734D-IB8XOW8 module uses cage-clamp termination and the
1734D-IB8XOW8S module uses spring-clamp termination.

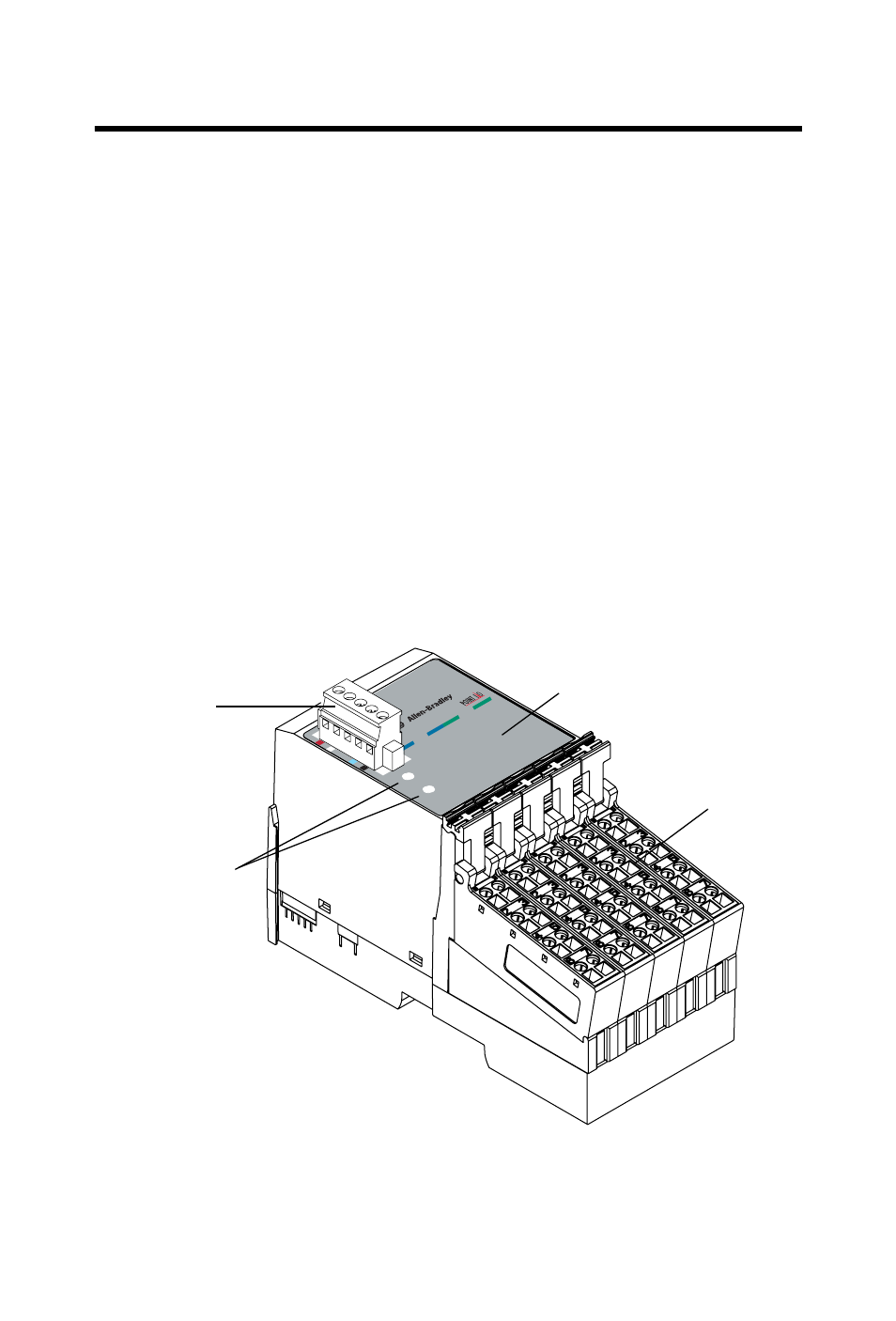

1734D-IB8XOW8, 1734D-IB8XOW8S Modules
0-9
Module Status
Network Status
Inputs
10 -63
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
Outputs
DeviceNet
Connector
Removable
Terminal Blocks
Node Address
Setting Switches
I/O Status
Indicators
44201
