Chapter 1
Setting Up Your Equipment
1–8
Use the Hand–Held Terminal to configure the SLC 500 controller,
enter/modify a user program, download/upload programs, monitor controller
operation, test, and troubleshoot. The HHT has its own memory to store a
program.
You can use the HHT stand alone (for remote programming development
with 1747–NP1 or NP2 power supply), point–to–point (one HHT to one
controller), or on a DH–485 network (communicate with up to 31 nodes over
4,000 feet). When equipped with a battery (1747–BA), the HHT will retain a
user program in memory for storage and later use.
The HHT is menu–driven. The display area accommodates 8 lines x 40
characters. You can display five rungs of a user program. When monitoring
the program in the RUN mode, instructions in a ladder diagram are
intensified to indicate “true” status.
F1 F2 F3 F4 F5
N O
SPACE PRE/LEN
S
ACC/POS
I
U
ESC
A
7
D
4
T
1
B
8
E
5
R
2
#
0
–
: /
.
C
9
F
6
M
3
SHIFT
Enter
ZOOM RUNG

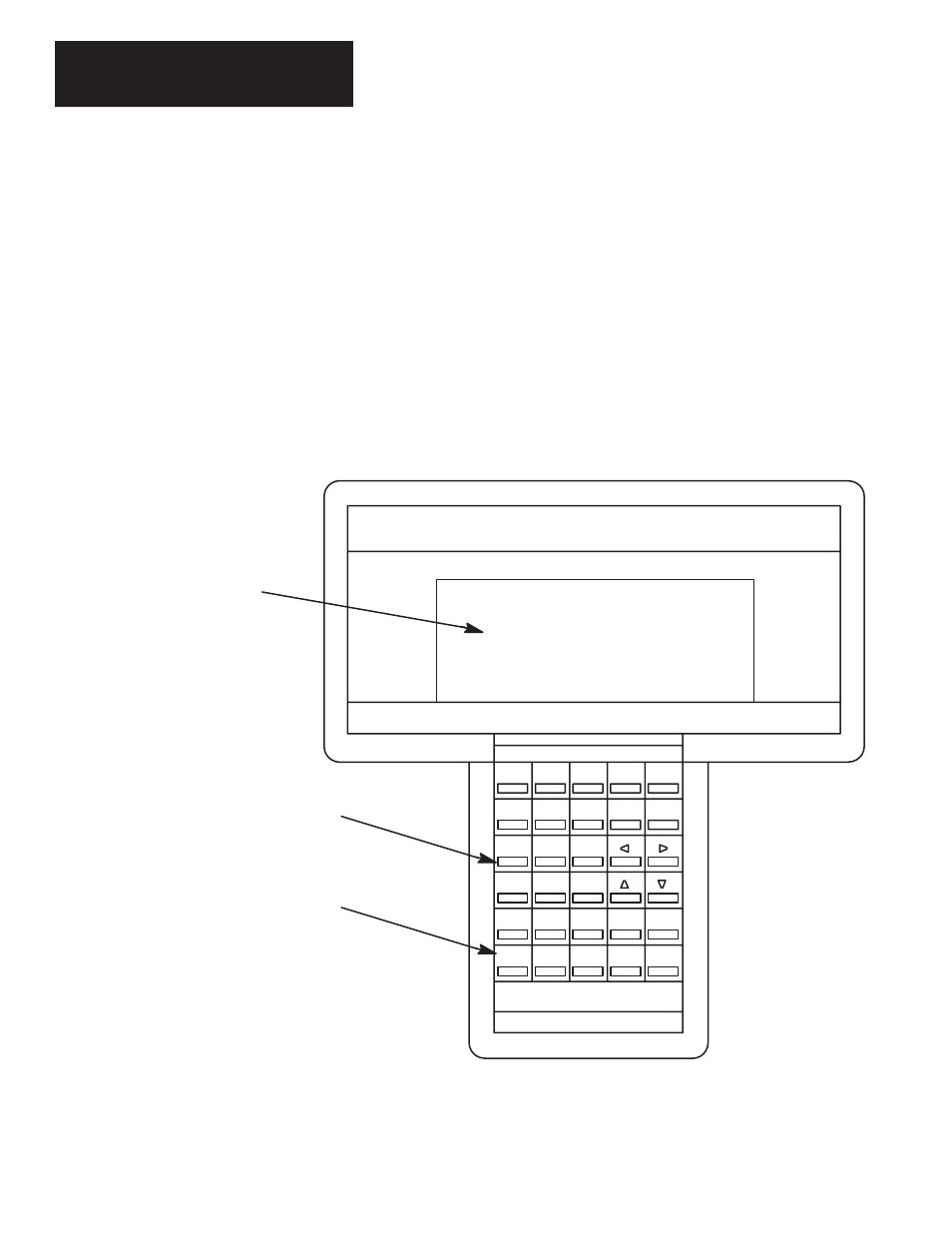

Calculator–style,
color–coded keyboard
Keys operate with motion and
tactile response.
Display Area
F1 F2 F3 F4 F5
SLC 500 PROGRAMMING SOFTWARE Rel. 2.03
1747 – PTA1E
Allen–Bradley Company Copyright 1990
All Rights Reserved
OFL
SELFTEST TERM PROGMAINT UTILITY
PRESS A FUNCTION KEY
HHT Features
