Outputs, Enabling and forcing outputs, Assigning outputs to counter windows – Rockwell Automation 1794-VHSC 1794 FLEX I/O Very High Speed Counter Module User Manual User Manual

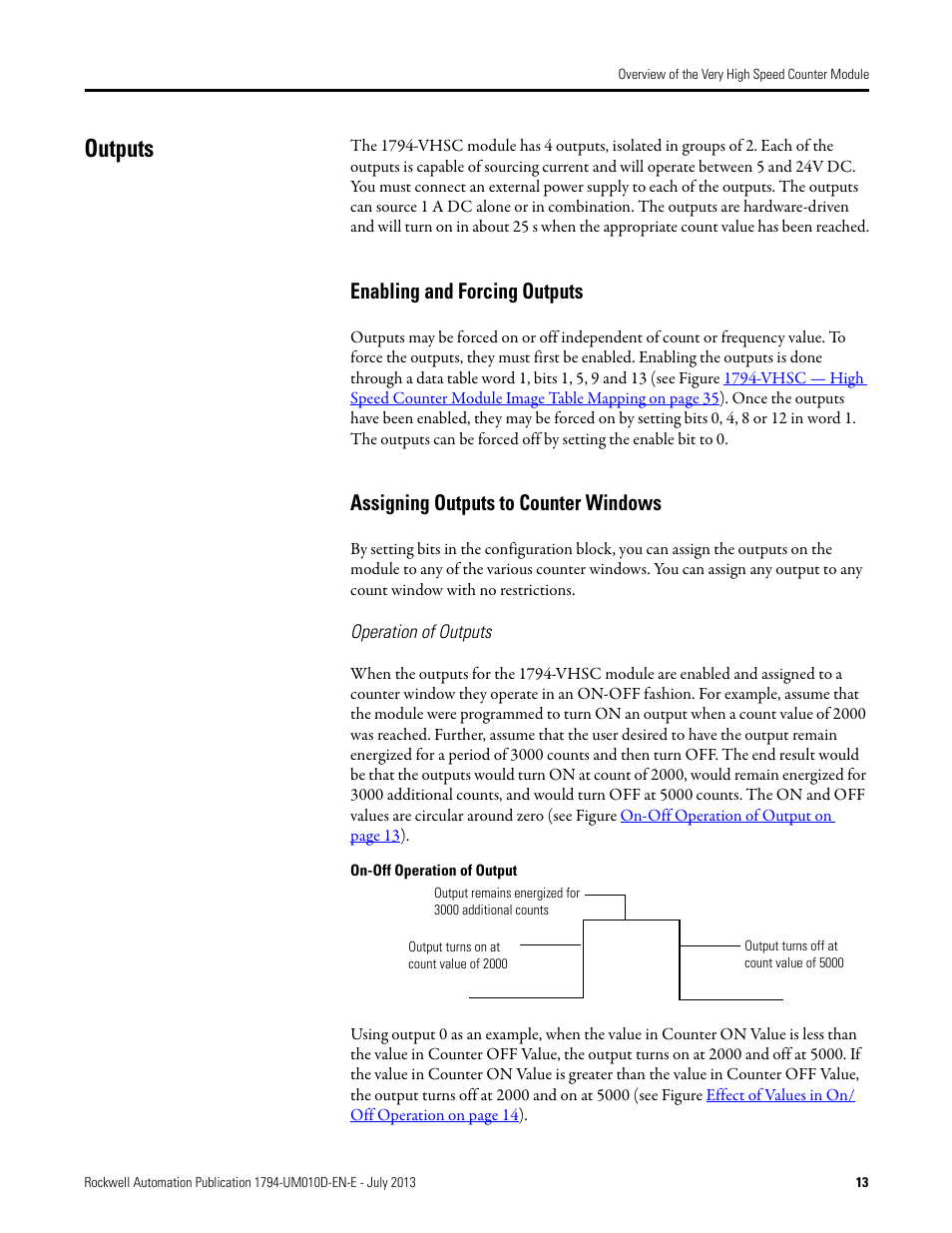

Page 21: Operation of outputs
