Operation of scaler, Connection to counter inputs, Continuous/rate mode – Rockwell Automation 1794-VHSC 1794 FLEX I/O Very High Speed Counter Module User Manual User Manual

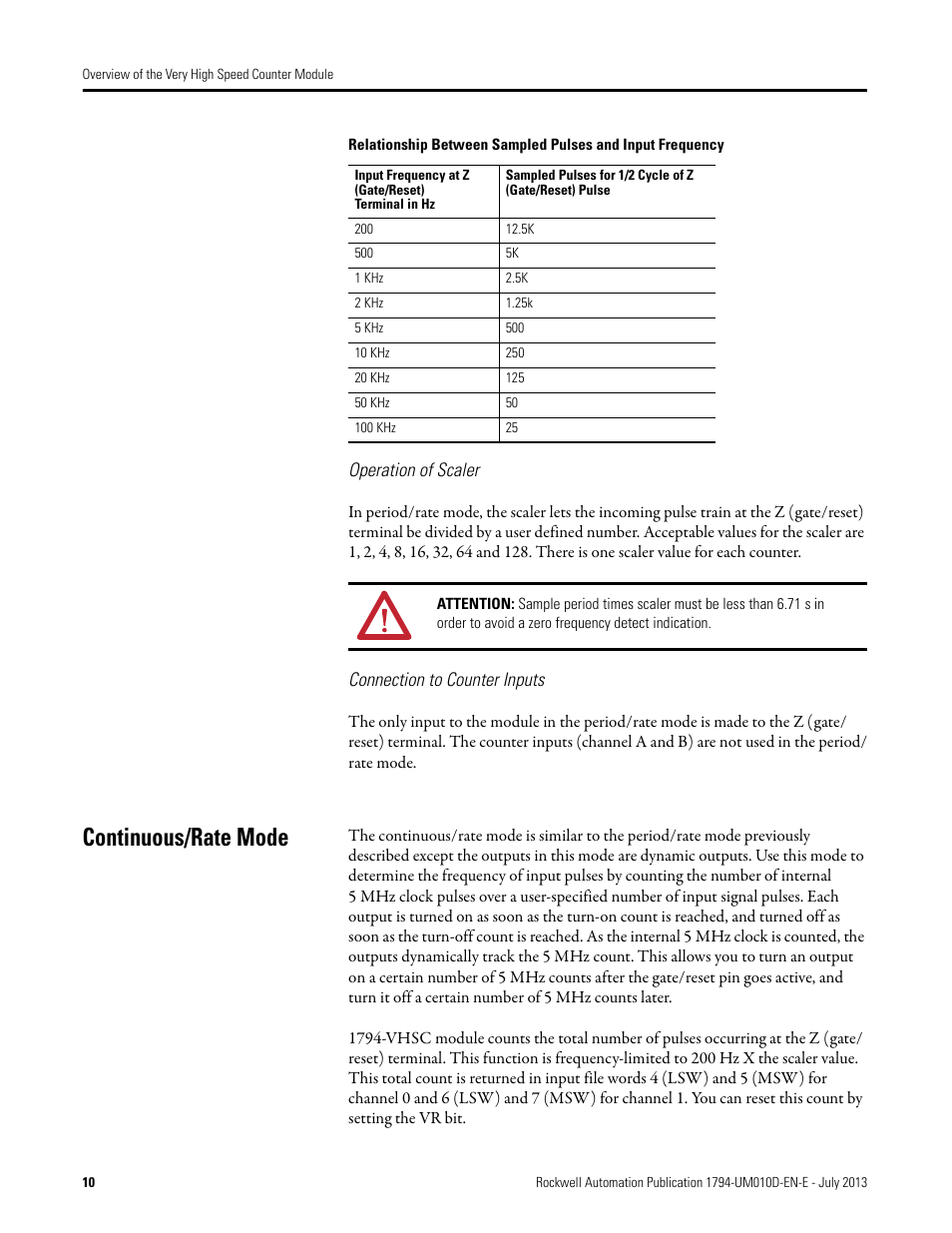

Page 18: Operation of scaler connection to counter inputs
