Panel mounting – Rockwell Automation 1783-EMS08T Stratix 6000 Ethernet Managed Switches Installation Instructions User Manual
Page 10
10 Stratix 6000 Ethernet Managed Switches
Rockwell Automation Publication 1783-IN004B-EN-P - June 2014
Panel Mounting

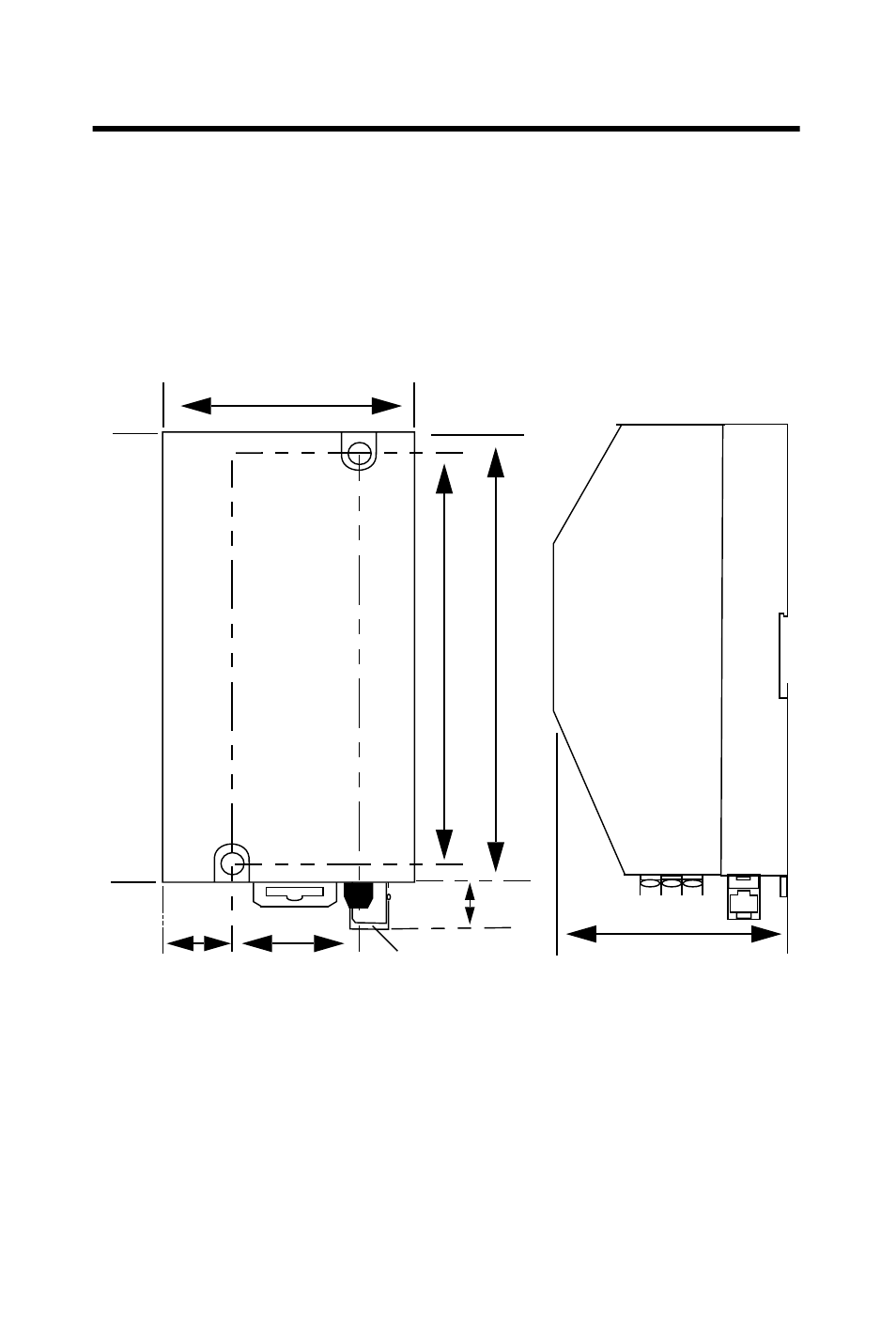

To panel mount a switch, create a mounting template, referring to the figure,
which shows a 1783-EMS08T switch with an SFP module installed.
Provide 15 mm (0.6 in.) clearance for DIN-rail latch movement during
installation and removal. Dimensions in the figure are in mm (in.). These views
are not actual size.
27.7 (1.09)
52.07 (2.05)
107 (4.21)
118 (4.64)
88.9 (3.50)
12 (0.47)
12 (0.47)
SFP Module Installed
