10 1732E ArmorBlock Dual-Port EtherNet/IP 4-Point Analog Input and Output Modules

Publication 1732E-IN006C-EN-E - June 2013

Mount the Module in High Vibration Areas

If you mount the module in an area that is subject to shock or vibration, we recommend
you use a flat and a lock washer to mount the module. Mount the flat and the lock washer
as shown in the mounting illustration. Torque the mounting screws to 0.68 Nm (6 lb-in.).

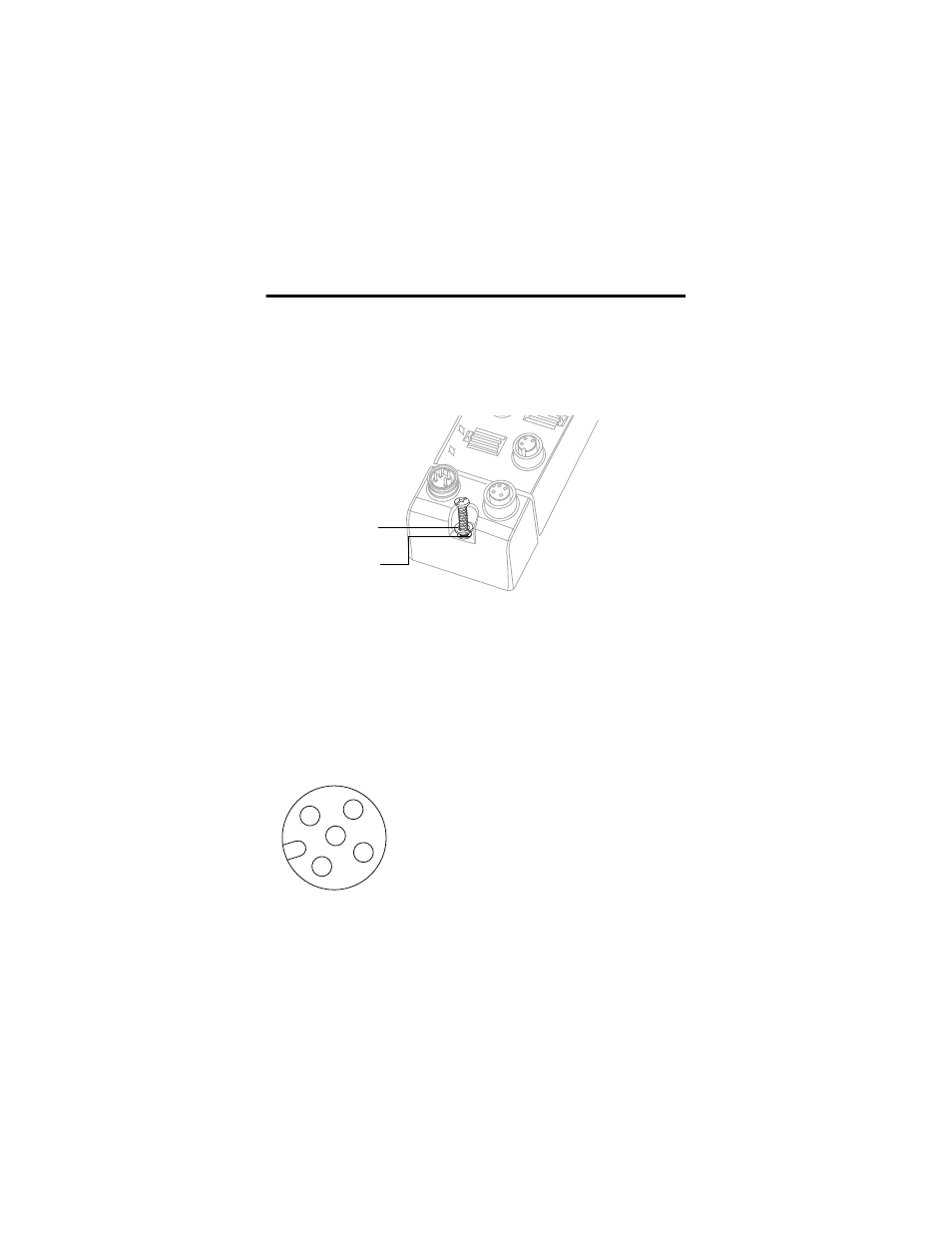

High Vibration Area Mounting

Connect the I/O, Network and Auxiliary Cables to the Module

The 1732E-IF4M12R, 1732E-OF4M12R ArmorBlock EtherNet/IP modules have 5-pin
micro-style M12 I/O connectors. We provide caps to cover the unused connectors on your
module. Connect the quick-disconnect cord sets you selected for your module to the
appropriate ports.

I/O Connectors

Micro-style M12 5-Pin Input Female Connector – 1732E-IF4M12R

45768

Lock washer

Flat washer

3

4

1

2

5

45868

(View into connector)

Pin 1

Current Input +

Pin 2

Current Common

Pin 3

Voltage Input +

Pin 4

Voltage Common

Pin 5

No Connect
