Programming

Chapter 3

3Ć18

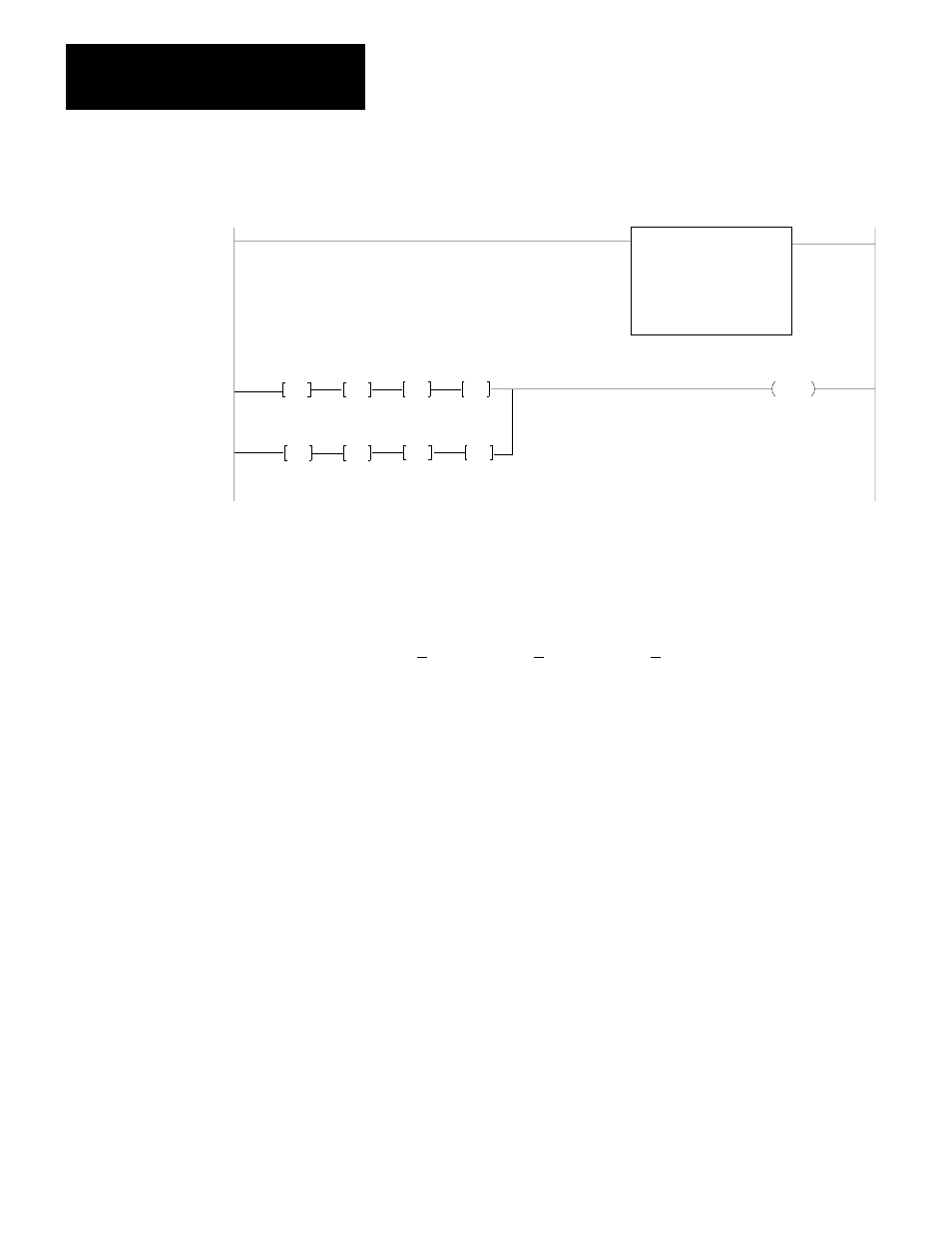

Figure 3.13

AF2 Multiplication Function Input and Result Display Rungs

Bit

Storage

204

200

G

203

000

G

202

400

G

201

000

G

305

000

G

306

000

G

307

080

G

307

000

G

Execute Aux

Function

Function Number:
Data Addr:
Result Addr:

03

201
305

AF1 Division Function

An AF1 division function operates on two 6-digit BCD numbers and presents
the results in a 12-digit BCD number.

(+XXX XXX.) : (+XXX XXX.) = +XXX XXX.XXX XXX

How to Enter an AF1 Division Function

To program an AF1 division function, perform the following steps:

1. Press [SHIFT] [EAF] or [SHIFT] [SCT] on the keyboard of your

industrial terminal. Figure 3.1 appears on the CRT.

2. Enter 04, the function number for AF1 division.

This entry identifies that the function entered is to perform an AF division and
that the processor use the data table format shown in Figure 3.14 when
executed. Operands 1 and 2 represent two 6-digit numbers whose quotient you
wish to find. The six digits of operand 1 are represented in BCD by groups of
bits labeled digit 1 through 6. Digit 1 and 6 are the most significant and least
significant digits respectively. Operand 2 and the 12 digits of the result are
labeled similarly.
