Apply power to the system – Rockwell Automation 1785-Lx0E Ethernet PLC-5 Programmable Controllers Installation Instructions User Manual
Page 18
Publication 1785-IN063B-EN-P - January 2006
18 Ethernet PLC-5 Programmable Controllers
3. To install the battery, attach the battery-side connector into the
controller-side connector inside the battery compartment of the
controller.
4. Install the controller.
For more information, see the Enhanced and Ethernet PLC-5 Programmable
Controllers User Manual, publication 1785-UM012.
Apply Power to the System
When you apply power to a new controller, it is normal for the programming
software to indicate a RAM fault.

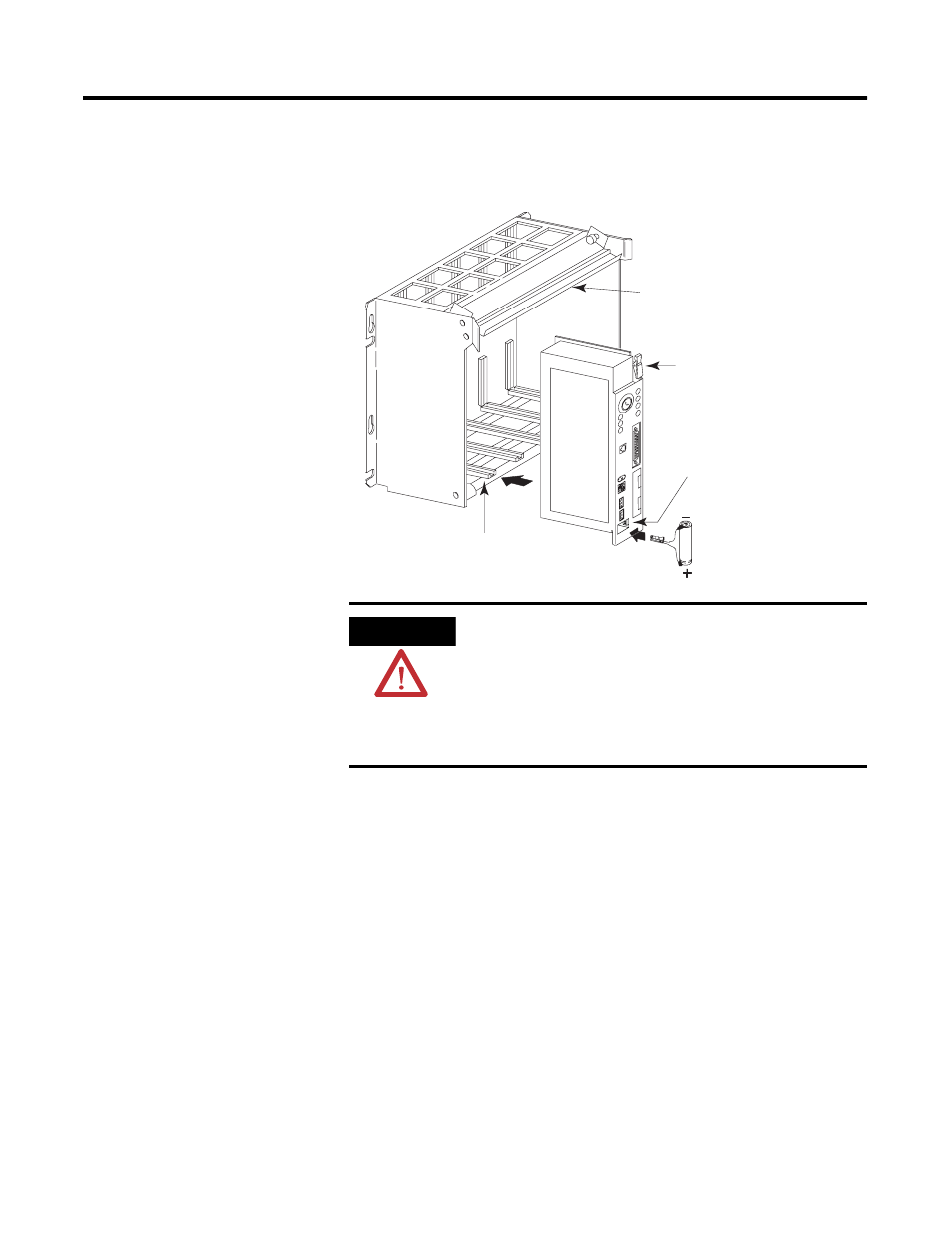

Card Guides
Locking Bar
Battery Connector is Mounted
Inside the Battery Compartment
Battery
Ejector Tab
43916
WARNING
WARNING
WARNING
WARNING
When you connect or disconnect the battery, an electrical
arc can occur. This could cause an explosion in hazardous
location installations. Be sure that power is removed or the
area is nonhazardous before proceeding. For safety
information on the handling of lithium batteries, including
handling and disposal of leaking batteries, see Guidelines
for Handling Lithium Batteries, publication AG-5.4.
