4. To send email, enter the appropriate information into the Data fields
and Username and Password, if Authentication is enabled.
Examine the Error Code (denoted in Hex) and Error Description areas within
the General tab to see if the message was successfully delivered.

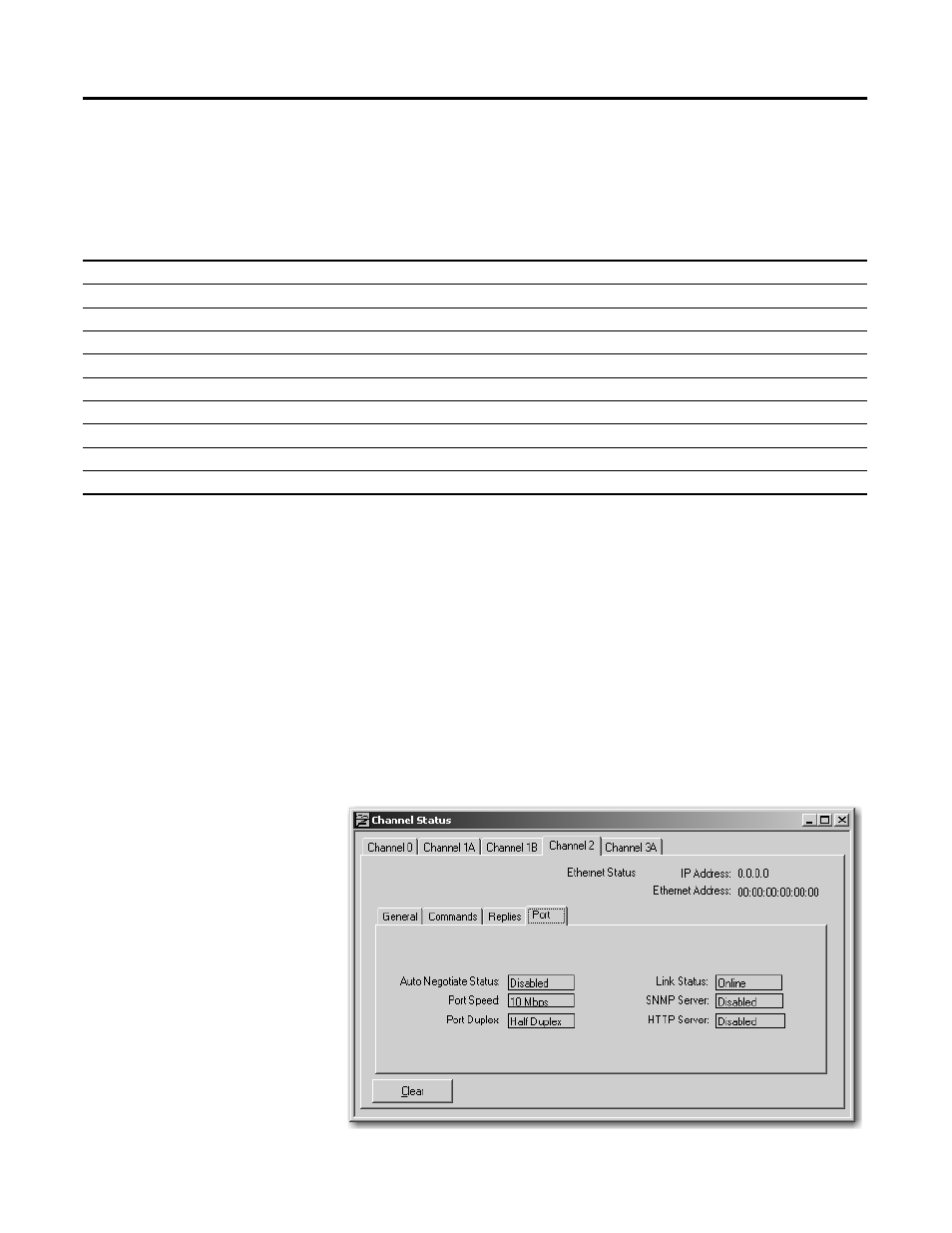

Channel 2 Status
To check the status of channel 2:
1. In your RSLogix 5 software project, click on Channel Status.
You see the Channel Status menu.
2. Click on the Channel 2 tab.
3. Click on the Port tab.
You see the status for each port configuration.
Error Code (hex) Description
0x000 Delivery successful to the mail relay server.
0x002 Resource unavailable. The email object was unable to obtain memory resources to initiate the SMTP session.
0x101 SMTP mail server IP address not configured.
0x102 To (destination) address not configured or invalid.
0x103 From (reply) address not configured or invalid.
0x104 Unable to connect to SMTP mail server.
0x105 Communication error with SMTP server.
0x106 Authentication required.
0x017 Authentication failed.
